Browse NAPs
Browse NAPs is a NAP report builder. By default it shows one row per NAP per device with live data. Switch to historical mode for aggregated analysis over any time window.
Open from TB Nodes > Browse NAPs.
Controls
Combine NAPs
Merge NAPs with the same name across devices into a single row showing aggregated totals.
Switch to Historical
Swap live polling for historical aggregation. Select a range from 1 hour to 90 days, or custom dates.

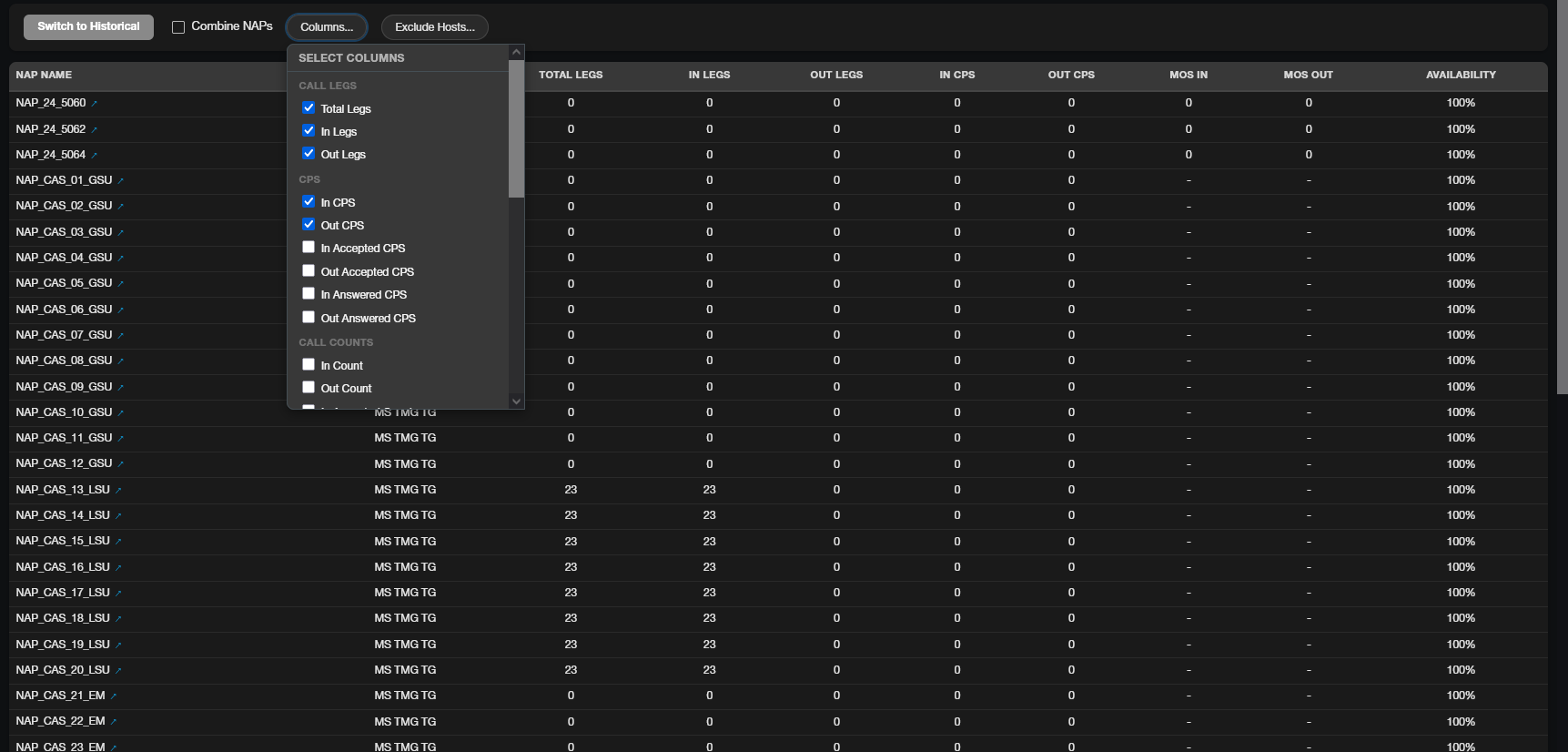

Columns
Pick which of the 27 NAP metrics to display. In historical mode, each column shows its aggregation (Total, Avg, Peak, Min).
Exclude Hosts
Hide specific devices from the table — useful for excluding lab equipment.
Views
Save the current column selection, filters, and settings as a named view. Load it back later with one click.
Export
Download the current table as CSV or JSON.

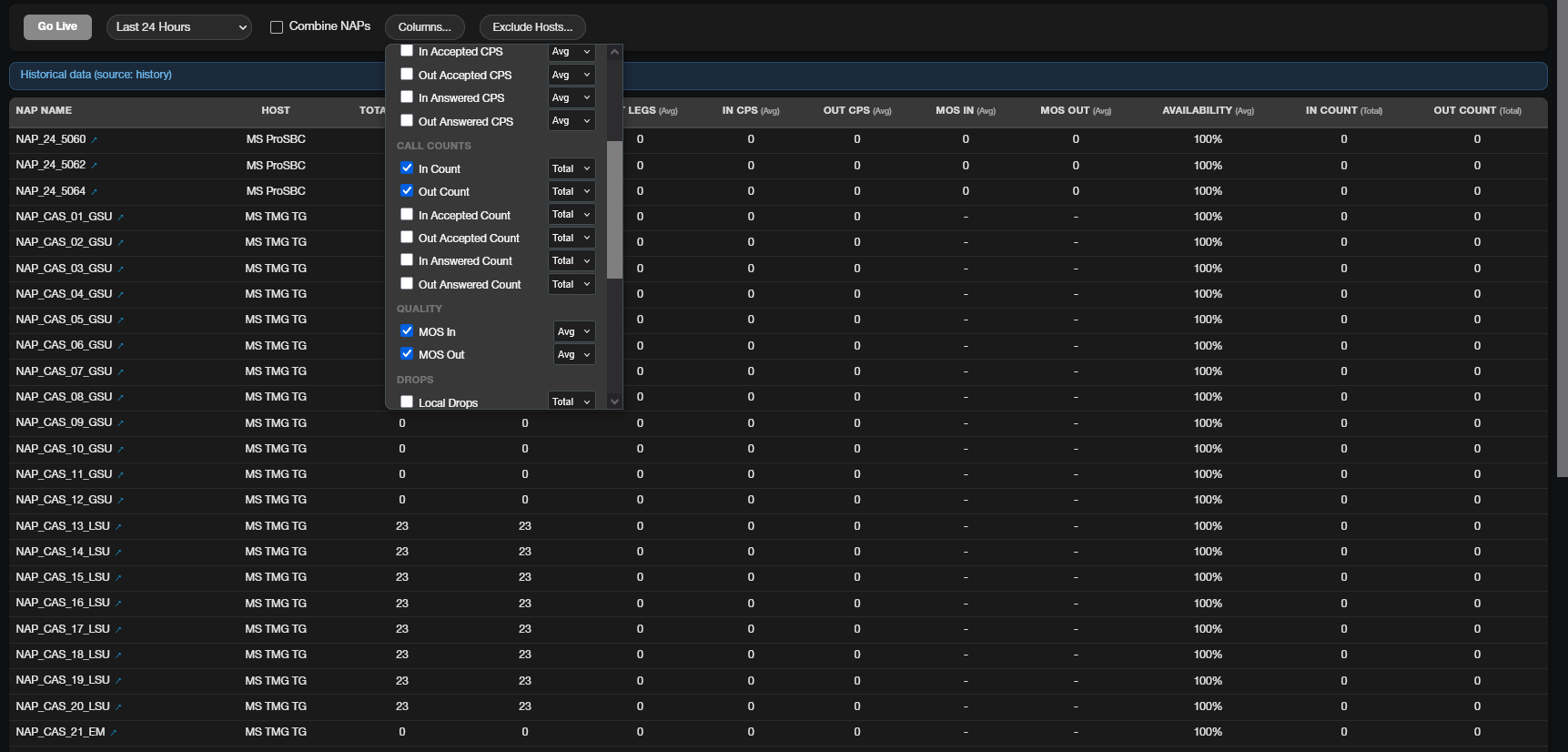

Historical Mode
When you switch to historical, column aggregation is applied automatically based on metric type:
Counters (call counts, drops)
Total
True sum over the period.
Rates (CPS)
Average
Rates don't sum meaningfully.
Quality (MOS)
Average
Quality over time.
Call Legs
Average
Call legs are concurrent, not a running count — summing would double-count. Avg/Peak/Min only.
You can change the aggregation per column in the column selector.
Saved Views
Views are stored in your browser. They capture: active columns, per-column aggregation, combine toggle, excluded hosts, live/historical mode, and time range.
To move views between browsers, use Export Views and Import Views in the Views menu.
Refresh Behavior
Live mode auto-refreshes.
Historical mode is static — the data for the selected range doesn't change, so there's no auto-refresh. Change the range or mode to re-query.
Drill-Through

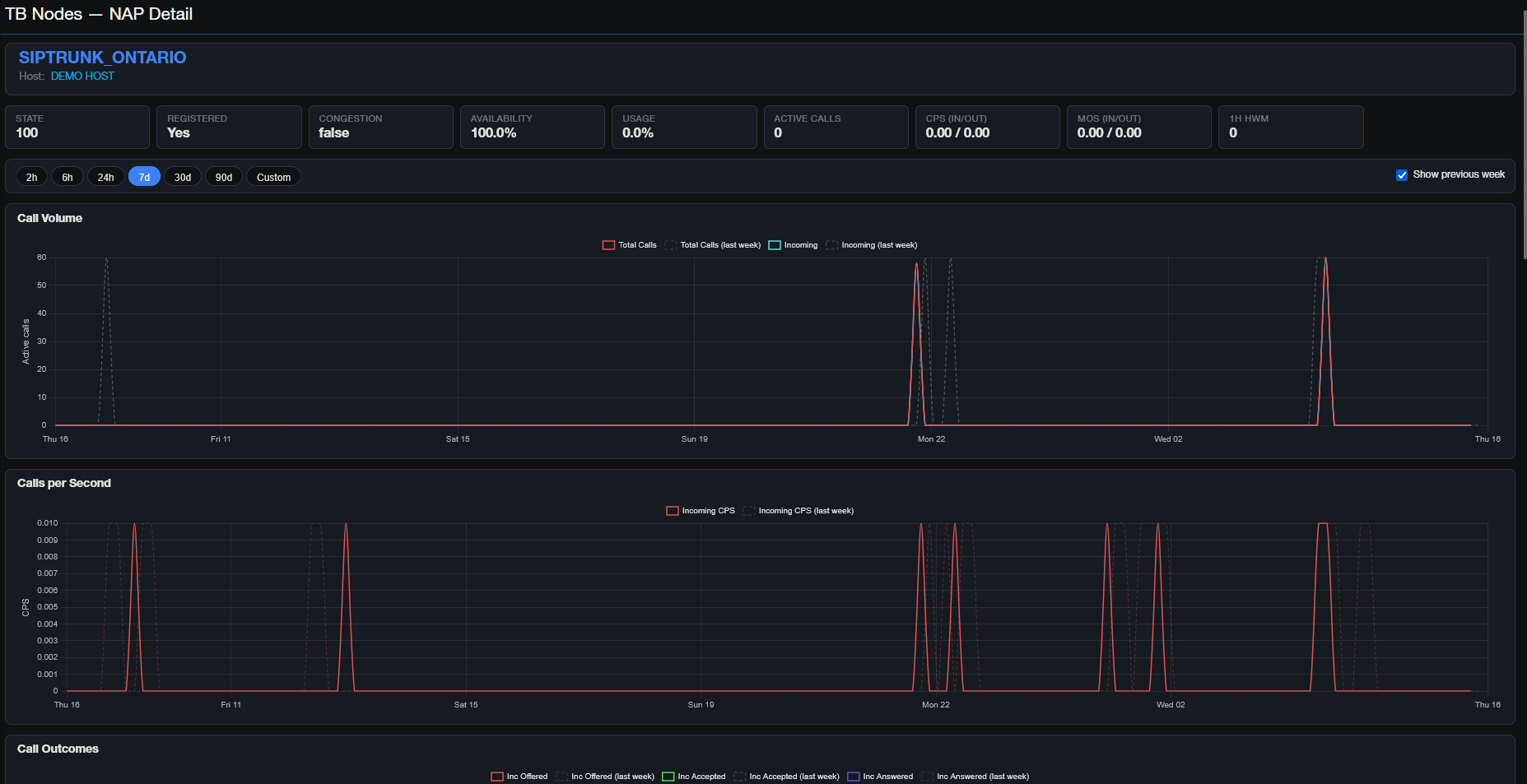

Click any NAP name to open its NAP Detail page, showing all 27 metrics for that NAP on that device with a configurable chart.
