TMG performing M3UA signaling gateway

Applies to version(s): v2.9 and above

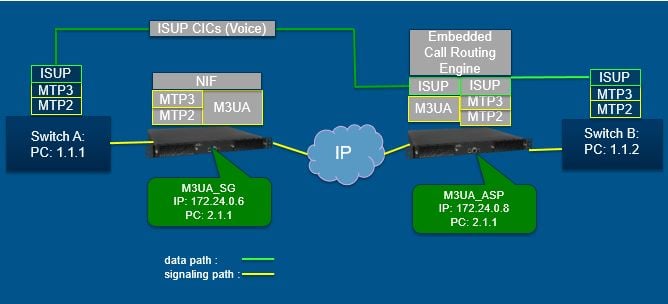

In this scenario, all messages from TDM network are relayed to the TDM network via Sigtran: M3UA.

M3UA SG ASP

Configure TMG: M3UA SG

Configure TMG: M3UA ASP

*M3UA SGP Configuration **Create a M3UA module -> Note Type: SGP **Create a M3UA SAP -> Select IP Interfaces **Create a M3UA Network **Create a M3UA userpart -> connect this entity to a MTP3 userpart **Create a M3UA PSP **Create a M3UA Peer Server **Create a M3UA Route -> This route is used to reach the DPC used in MTP3 configuration **Create a M3UA Route -> This route is used for local point code and to reach the IPSP/ASP/SG **Need to configure MTP3 part

*M3UA ASP Configuration **Create a M3UA module -> Note Type: ASP **Create a M3UA SAP -> Select IP Interfaces **Create a M3UA Network **Create a M3UA userpart **Create a M3UA PSP **Create a M3UA Local Peer Server **Create a M3UA Remote Peer Server **Create a M3UA Route -> This is our local route **Create a M3UA Route -> This is the remote route **No need to configure MTP3 part
