TMG performing M2UA signaling gateway

Applies to version(s): v2.9 and above

In this scenario, all messages from TDM network are relayed to the IP network via Sigtran: M2UA.

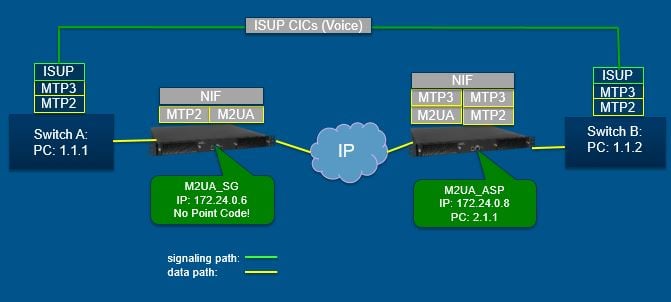

Diagram M2UA SG ASP Wiki

Configure TMG: M2UA SG	Configure TMG: M2UA ASP
*MTP2-M2UA Configuration **M2UA Configuration -> Node Type: SG **M2UA Link -> Bind the configured MTP2 link **No need to configure MTP3 part	*MTP2-M2UA Configuration **M2UA Configuration -> Node Type: ASP **M2UA Link -> Bind the configured MTP2 link **Need to configure MTP3 part

References

• Configuring MTP2 to M2UA gateway
