Configuring Tmedia M3UA SGP for a shared point code

Applies to version(s): v3.0 and above

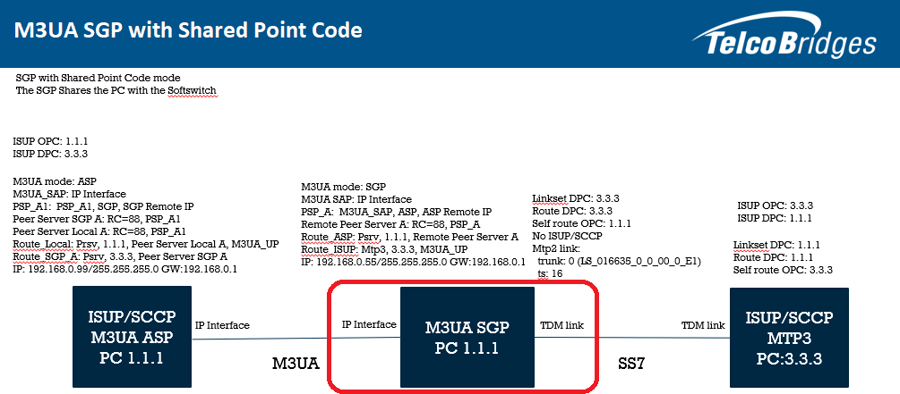

This configuration is a standard signaling gateway from MTP2/MTP3 to M3UA Application Server Process (ASP)

Configure MTP2	Configure MTP3	Configure IP Interface	Configure SCTP	Configure M3UA
*Configure MTP2 *Configure MTP2 Link	*Configure MTP3 *Configure an MTP3 Network **Configure MTP3 Point Codes **In this use case, the following point code names are assigned: ***destination point code: dpc333 ***origination point code: opc111 **Configure an MTP3 Linkset ***Configure MTP3 Links **Configure an MTP3 Route	*Configure IP Interface * In this use case, configured as: **IP Address: 192.168.0.55 **Netmask: 255.255.255.0 **Gateway: 192.168.0.1	*Configure SCTP	*Configure M3UA **Create an M3UA SAP **Create an M3UA Network **Create an M3UA User Part **Create an M3UA Peer Signalling Process **Create an M3UA Peer Server **Create an M3UA Route
