M3UA configuration

Applies to

Applies to: Tmedia 3.0, 3.2, 3.3

The following uses cases provide guidance for some specific M3UA configurations.

Select a use case to learn about its configuration.

Configuring Tmedia and TSG for M3UA SGP with Shared Point Code

This configuration is a standard signaling gateway from MTP2/MTP3 to M3UA Application Server Process (ASP)

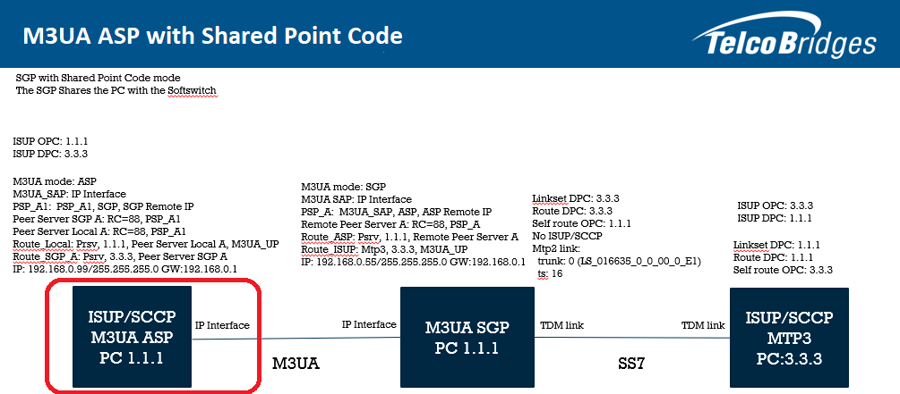

Configuring Tmedia and TSG for M3UA ASP with Shared Point Code

This configuration is a standard M3UA Application Server Process (ASP)

Configuring Tmedia Gateways for M3UA SGP with IP Point Code

This configuration allows you act as a signaling gateway towards an M3UA ASP

There needs to be a point code defined for the SGP, but is not used externally

Configuring Tmedia and TSG Gateways for M3UA SGSG Passthrough

This configuration allows you to pass transparently all packets destined to the service provider network represented by a Signaling gateway (SGP).

Note that the Point code is shared between the SGSG and the SGP device

[[File:M3ua_sgsg_passthrough.png|800px|left|link=Use_Cases:Configuring_Tmedia_Gateways_for_M3UA_SGSG_Passthrough ]]
