Network Configuration IP UseCase3 B (section)

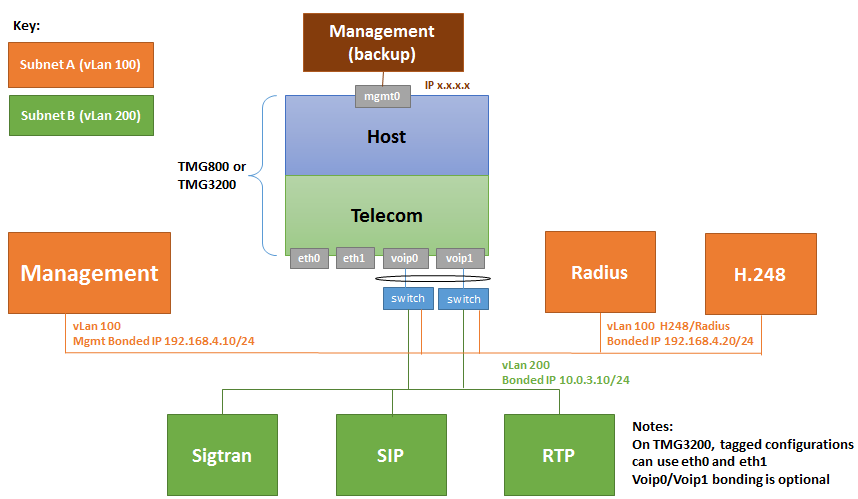

Two VLAN, Three IP Addresses, all through VoIP ports, tagged

UseCase TwoVlansThreeIpsVoipPortsTagged 0

	Configure IP Network A	Configure IP Network B
Vlan 100 uses tagged bonded over VOIP0 and VOIP1 ports *Create Virtual Port *Create IP Address	Vlan 200 uses tagged bonded over VOIP0 and VOIP1 ports *Create Virtual Port *Create IP Address
Configure SIP	Configure SIGTRAN	Configure H.248	Configure RADIUS
*Configure SIP **IP range parameters: ***Name: PORT_RANGE_VOIP ***IP Interface: VOIP_ADDRESS ***Minimum Port: 20000 ***Maximum Port: 30000 **SIP transport server parameters: ***Port: 5060 ***IP Interface: VOIP_ADDRESS **SIP NAP parameters: ***Proxy Address: 10.0.3.x/24 ***Port Range: PORT_RANGE_VOIP	*Configure SIGTRAN	*When you Configure H.248, set the following: **Local IP Address and Public IP Address: 192.168.4.x/24 [Public IP or NAT public IP]	*When you Configure RADIUS, set the following: **Source IP interface: RADIUS_100 **Radius -> Radius Server **Public IP Address: Empty
