Two VLAN, three IP addresses, tagged

Applies to: Tmedia 2.8, 2.9, 2.10, 3.0, 3.2

Two VLAN, Three IP Addresses, tagged

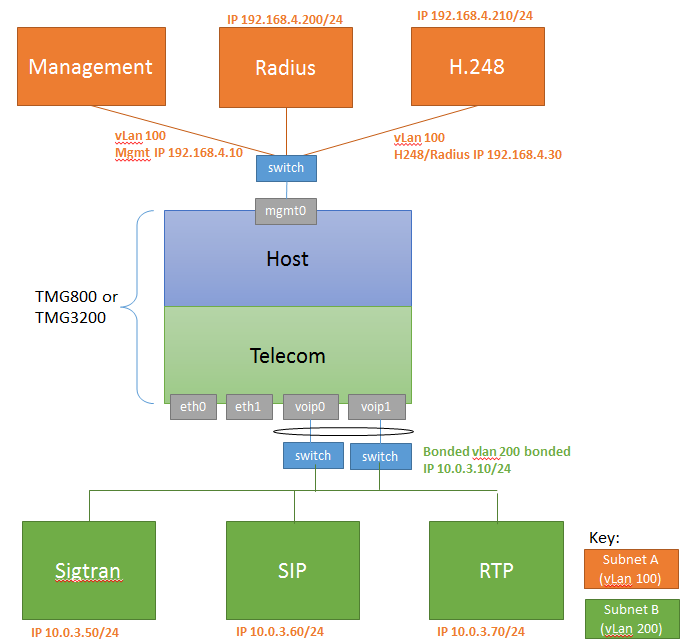

UseCase TwoVlandsThreeIpsVoipAndManagementPortsUsed 0

	Configure IP Network A	Configure IP Network B
*Create Virtual Port *Create IP Address	Subnet B uses untag bonded over VOIP0 and VOIP1 ports *Create Virtual Port *Create IP Address
Configure SIP	Configure SIGTRAN	Configure H.248	Configure RADIUS
*Configure SIP **IP range parameters: ***Name: PORT_RANGE_VOIP ***IP Interface: VOIP_ADDRESS ***Minimum Port: 20000 ***Maximum Port: 30000 **SIP transport server parameters: ***Port: 5060 ***IP Interface: VOIP_ADDRESS **SIP NAP parameters: ***Proxy Address: 192.168.4.110 ***Port Range: PORT_RANGE_VOIP	*Configure SIGTRAN	*When you Configure H.248, set the following: **Local IP Address and Public IP Address: 192.168.4.210 [Public IP or NAT public IP]	*When you Configure RADIUS, set the following: **Source IP interface: RADIUS_100 **Radius -> Radius Server **Public IP Address: Empty
