IP Network Configuration Use Case:One subnet, Two IP Addresses, Untagged

Worked IP network configuration for a Tmedia system on one untagged subnet with two IP addresses - one for management, one for VoIP. Tmedia 2.9 to 3.2.

Applies to: Tmedia 2.9, 2.10, 3.0, 3.2

One subnet, Two IP Addresses, Untagged

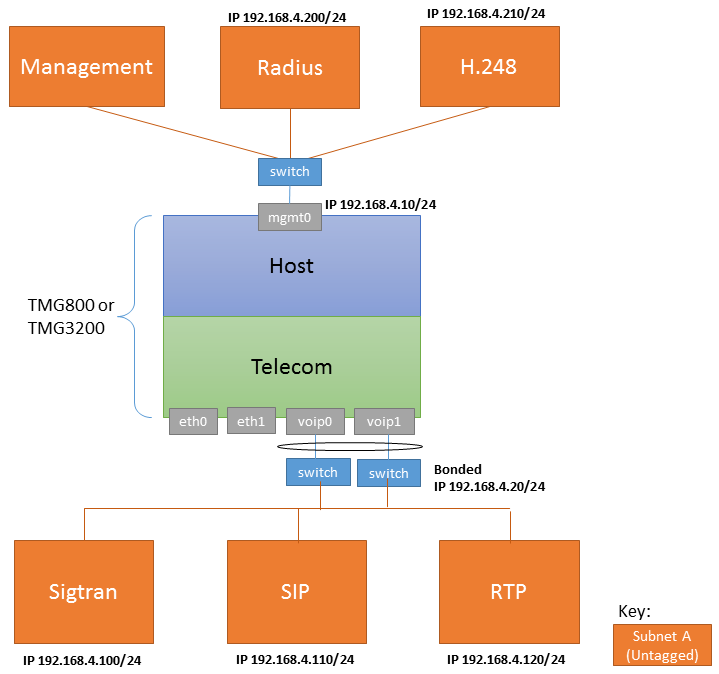

UseCase OneSubTwoIpUntagged 0

	Local IPs	Remote IPs
In this example, here are the IPs used: * Management on mgmt0: 192.168.4.10 * VoIP on voip0/voip1 (bonded): 192.168.4.20	* Radius server: 192.168.4.200 * H.248 MGC: 192.168.4.210 * Remote Sigtran endpoint IP: 192.168.4.100 * Remote SIP endpoint IP: 192.168.4.110 * Remote RTP endpoint IP: 192.168.4.120
	Configure IP Network A	Configure IP Network B
*Subnet A is accessed through MGMT0 *MGMT0 network interface modification requires the use of the tbchangeip shell script *Use tbchangeip with the following parameters: **IP Address: 192.168.4.10 **Netmask: 255.255.255.0 **Default gateway: 192.168.4.1	Subnet B is untagged and bonded over VOIP0 and VOIP1 ports. *Delete voip0 and voip1 virtual port *Create VP_VOIP virtual port: **Name: VP_VOIP **vLanId: Untagged **Physical Ports: voip0, voip1 *Delete voip0 and voip1 IP Address *Create VOIP_ADDRESS IP Address: **Name: VOIP_ADDRESS **Virtual Ports: VP_VOIP **IP Address: 192.168.4.20 **Netmask: 255.255.255.0 **Services: RTP, SIP, SIGTRAN
Configure SIP	Configure SIGTRAN	Configure H.248	Configure RADIUS
*Configure SIP **IP range parameters: ***Name: PORT_RANGE_VOIP ***IP Interface: VOIP_ADDRESS ***Minimum Port: 20000 ***Maximum Port: 30000 **SIP transport server parameters: ***Port: 5060 ***IP Interface: VOIP_ADDRESS **SIP NAP parameters: ***Proxy Address: 192.168.4.110 ***Port Range: PORT_RANGE_VOIP	*Configure SIGTRAN *For Local Service Access Point (SAP), use voip0/voip1 bonded (192.168.4.20) *For the remote service use 192.168.4.100	*When you Configure H.248, set the following: **Local IP Address and Public IP Address: 192.168.4.10 [Public IP or NAT public IP]	*When you Configure RADIUS, set the following: **Source IP interface: Any **Radius -> Radius Server **Public IP Address: Empty
