Management on eth0/eth1, H.248 + Sigtran, RTP on voip0/voip1 (bonded)

Applies to: Tmedia 2.8, 2.9, 2.10, 3.0, 3.2

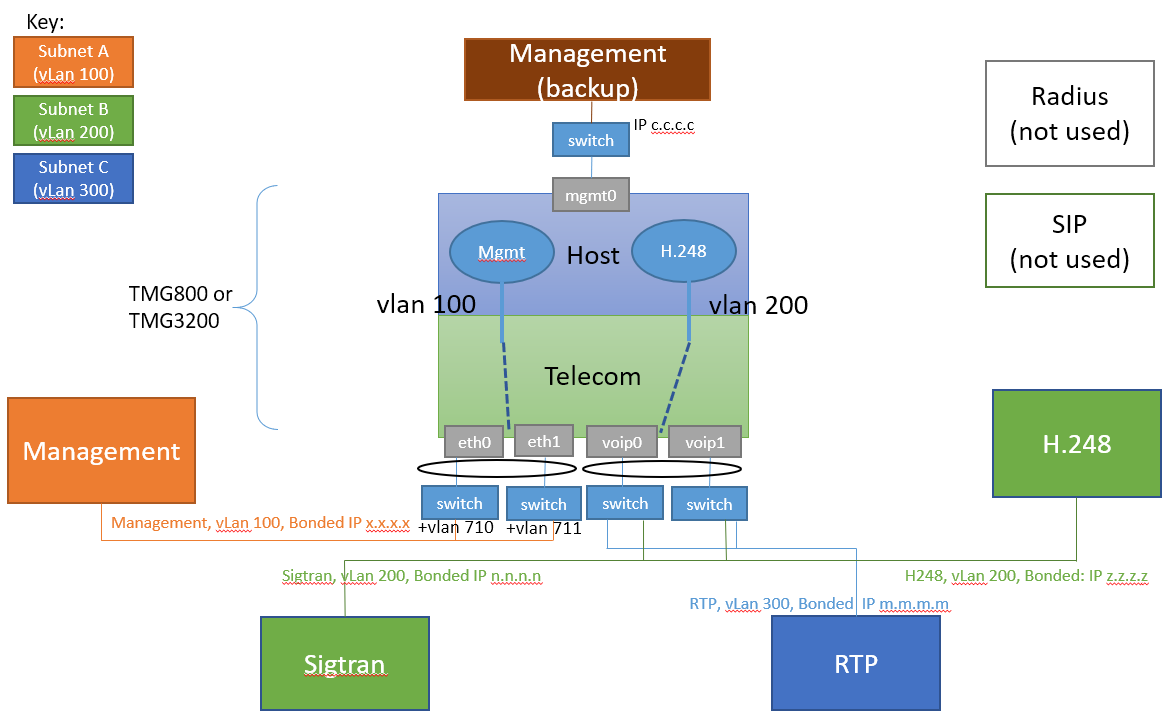

Three VLAN: VLAN 100 for management on bonded eth0/eth1, VLAN 200 for Sigtran and H.248, VLAN 300 for RTP on bonded voip0/voip1 ports

UseCase maneth h248 sig RTP

	Configure IP Network A	Configure IP Network B	Configure IP Network C	Configure IP Network D
Vlan 100 bonded over eth0 and eth1 ports *Create Virtual Port *Create IP Address	Vlan 200 bonded over VOIP0 and VOIP1 ports *Create Virtual Port *Create IP Address	Vlan 300 bonded over VOIP0 and VOIP1 ports *Create Virtual Port *Create IP Address
Configure RTP	Configure SIGTRAN	Configure H.248
*Configure SIGTRAN Use virtual port with vlan 200	*Configure RTP NAP Use RTP port range created with vlan 300	*Configure H.248 Use virtual port with vlan 200

Sample Configuration

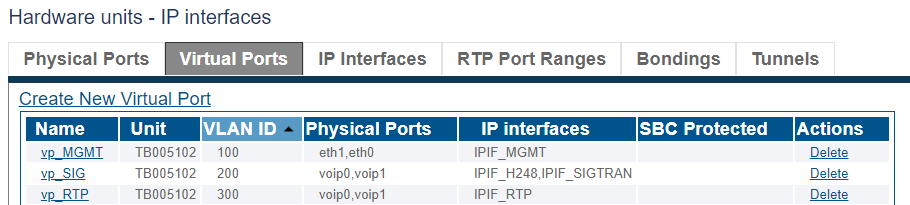

4D Virtual port configuration 1

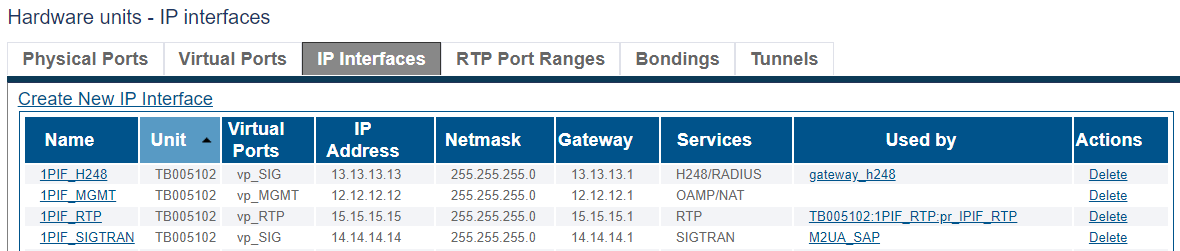

4D IP Interface configuration 1
