Configuring a Web Portal Profile

Applies to: Tmedia 3.0, 3.2, 3.3

A Web profile enables regions of the Web Portal to be hidden from view. Changes to the web profile applies to all users of the web portal.

A web portal profile is applied at the system configuration level. If for example, the basic-sip configuration does not require ISDN signalling, web profiles can remove ISDN as an accessible option from the web portal navigation panel.

The following procedure illustrates this example.

To configure a web profile:

1- Click Configurations in the navigation panel

WebProfile Navigation Panel B

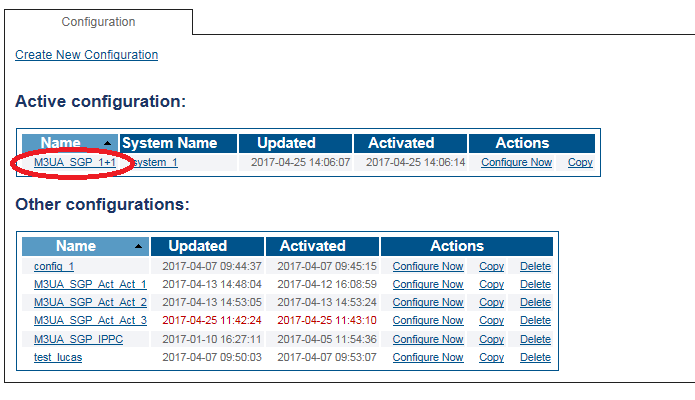

2- Select the desired configuration from the Active configuration list.

WebProfile EditConfiguration B

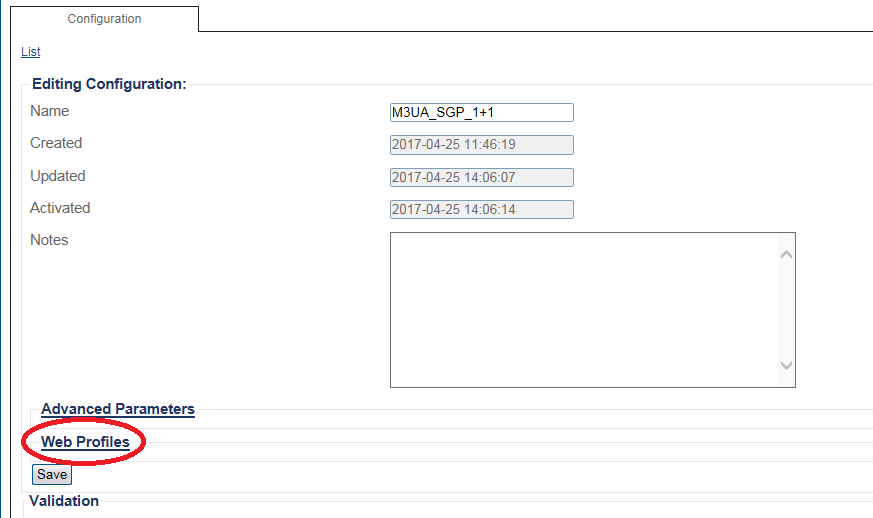

3- Click Web Profiles to modify the web portal profile..

WebProfile Select B

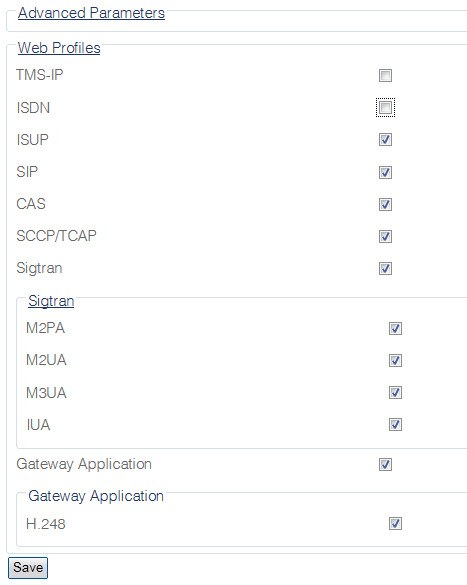

4- Uncheck/clear any web portal options that you do not wish to see.

WebProfile Customize B

5- Click Save. The web portal option is immediately removed from the navigation panel.

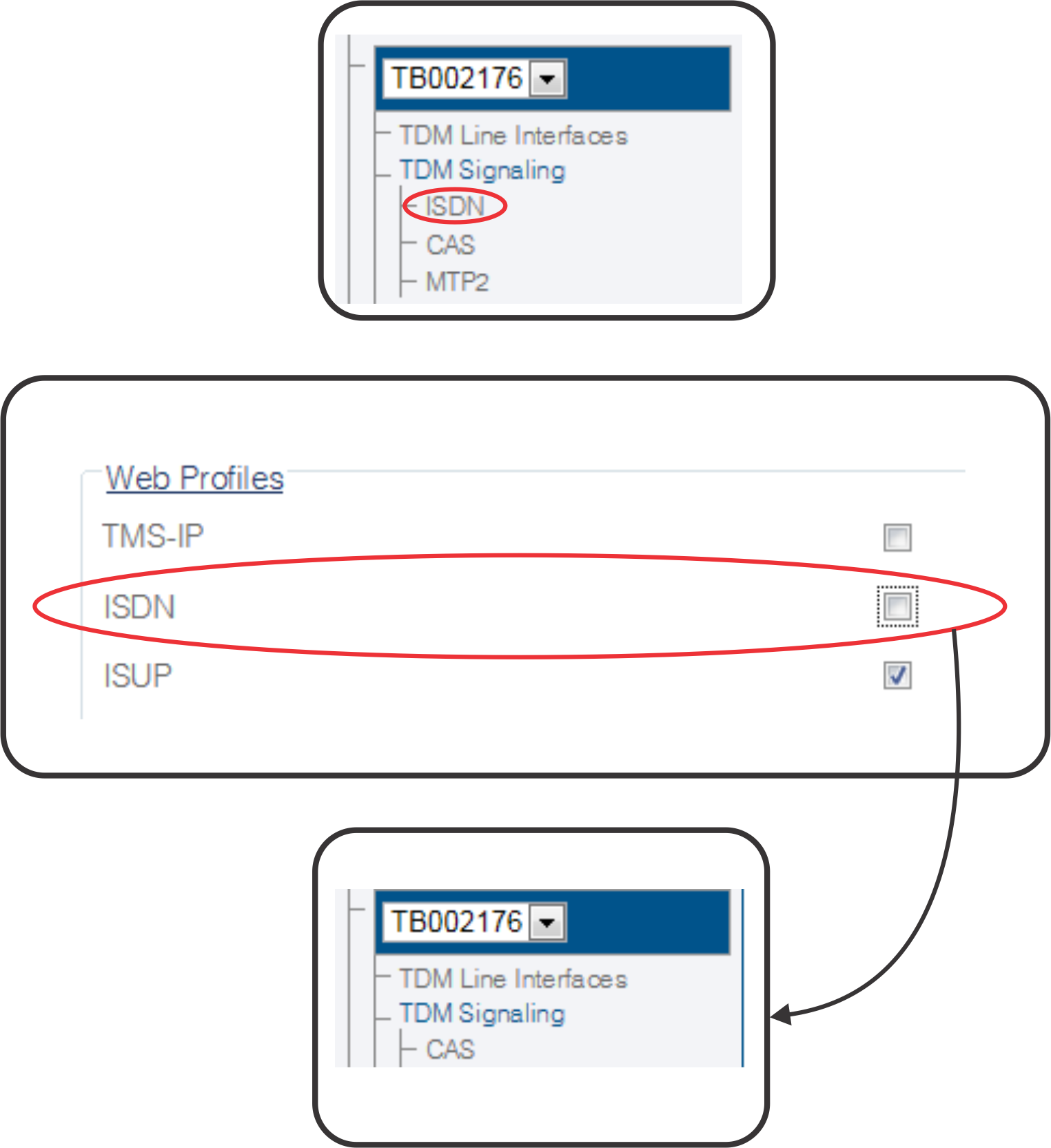

Example: ISDN is removed from the naviagation panel

WebProfile Example B

Northbound Interface

Path

/configurations/@[configuration_name]

Parameters (text)

/configurations/@[configuration_name]/web_profile
cas          = true
gateway      = true
h248         = true
isdn         = true
isup         = true
sccp_tcap    = true
sigtran_iua  = true
sigtran_m2pa = true
sigtran_m2ua = true
sigtran_m3ua = true
sip          = true
tms_ip       = false

Parameters (json)

{
    "web_profile" : {
    "cas" : true,
    "gateway" : true,
    "h248" : true,
    "isdn" : true,
    "isup" : true,
    "sccp_tcap" : true,
    "sigtran_iua" : true,
    "sigtran_m2pa" : true,
    "sigtran_m2ua" : true,
    "sigtran_m3ua" : true,
    "sip" : true,
    "tms_ip" : false
  }
}
