Applies to: Tmedia 3.0, 3.2, 3.3; SBC 3.1, 3.3

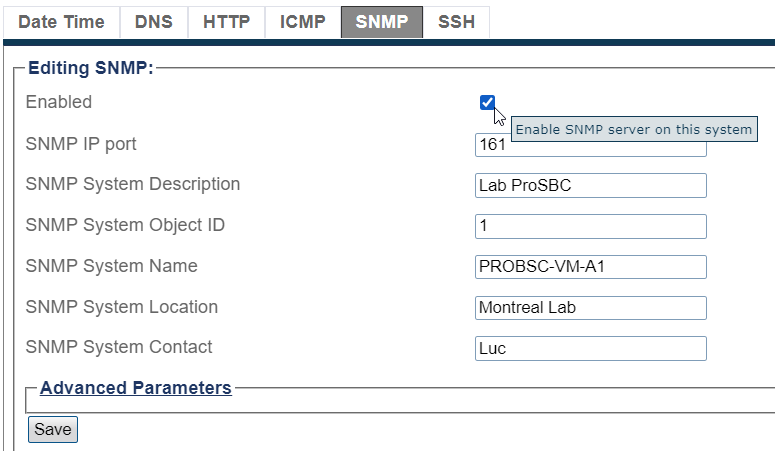

Once you are logged on to the Web Portal, follow these steps to activate the tbSnmpAgent application:
Click Services in the navigation panel.
Select Enabled and Save.
Path
Parameters (text)
Parameters (json)
Now that you have activated the SNMP agent application, you are ready to configure the application for your needs.
Last updated
Was this helpful?
Was this helpful?
/configurations/@[configuration_name]/applications/tbsnmpagent/configurations/@[configuration_name]/applications/tbsnmpagent
application_type = "TbSnmpAgent"
bin_path = "@{PKG_BIN}/tbsnmpagent"
command_line_arguments = ""
name = "tbsnmpagent"
working_path = "../tbsnmpagent/"
/configurations/@[configuration_name]/applications/tbsnmpagent/log_parameters
default_trace_level = "Level 4 (quiet)"
log_file_path = ""
max_gzipped_log_files_size = "100 MB"
max_log_file_segment_size = "10 MB"
/configurations/@[configuration_name]/applications/tbsnmpagent/network_lib_parameter
communication_down_delay = "10 seconds"
network_polling_delay = "2 seconds"
network_switchover_delay = "4500 milliseconds"{
"application_type" : "TbSnmpAgent",
"bin_path" : "@{PKG_BIN}/tbsnmpagent",
"command_line_arguments" : "",
"log_parameters" : {
"default_trace_level" : "Level 4 (quiet)",
"log_file_path" : "",
"max_gzipped_log_files_size" : "100 MB",
"max_log_file_segment_size" : "10 MB"
},
"name" : "tbsnmpagent",
"network_lib_parameter" : {
"communication_down_delay" : "10 seconds",
"network_polling_delay" : "2 seconds",
"network_switchover_delay" : "4500 milliseconds"
},
"working_path" : "../tbsnmpagent/"
}
