Generating Graphs

Applies to version(s) v2.8, v2.9, v2.10, v3.0, v3.1

The global polling statistics setting can be displayed in graph format.

To display the polled system statistics:

1- Click Statistics in the navigation panel

StatisticsConfiguration 0 A

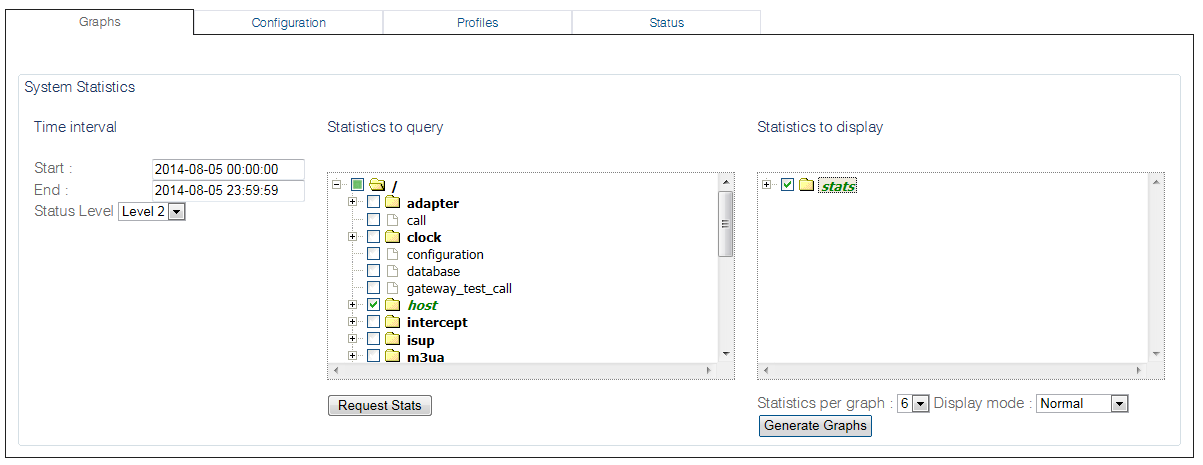

2- Select the statistics to run a query on as follows:

• Enter a start date and time.

• Enter a stop date and time.

• Select a status level.

• Select one or more statistics from the Statistics to query window

• Click Request Stats.

StatisticsGraphs 1 A

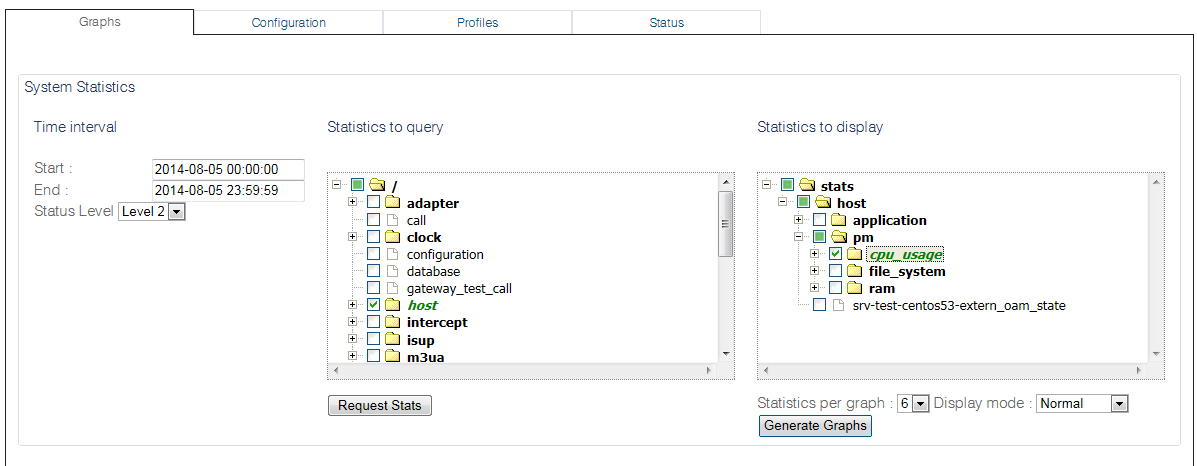

2- Choose the statistics to display as graphs:

• Select one or more statistics from the Statistics to display window.

• Click Generate Graphs.

StatisticsGraphs 2 A

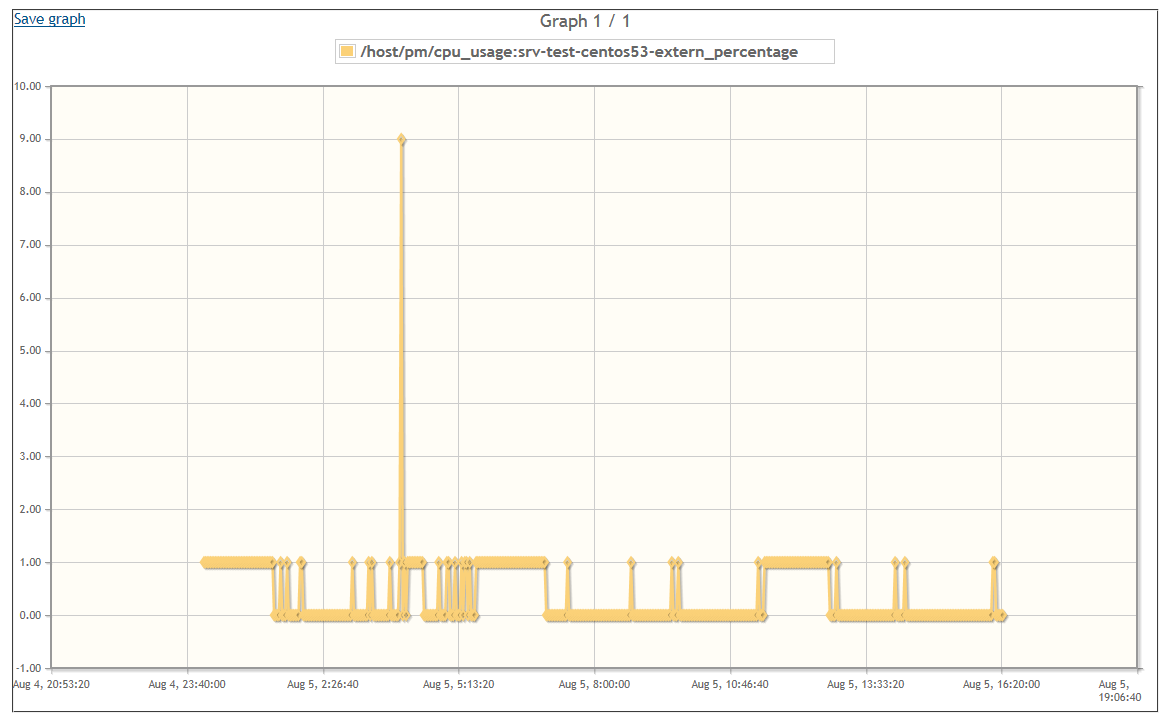

The graph is displayed.

StatisticsGraphs 3 A
