Resetting the Network Device Role

Applies to: SBC 3.1, 3.3

Once the FreeSBC/ProSBC is configured, it is possible add or change physical IP interfaces. To do so you must reset the network device role settings of the unit.

Note: this will reallocate the main network controller and stop the service for a few minutes

To reset the network device role, do the following:

1- Click Hosts in the navigation panel.

HostRoleReset 0 A

2- Select the serial number of the unit.

HostRoleReset 1 A

3- Click the Status tab.

HostRoleReset 2 A

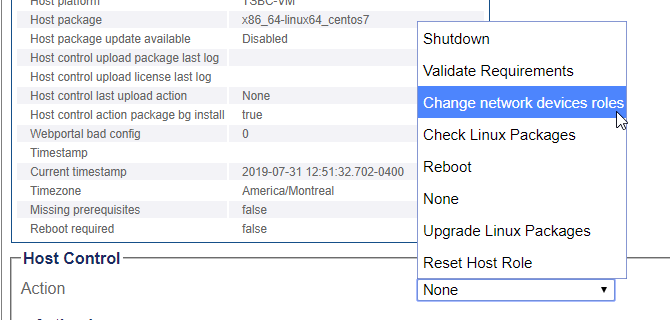

4- In the Action drop down box select Change Network Devices Roles

• Click Apply Action

After a few seconds, refresh the web interface and you will be brought back to the selection of network interfaces: Initial Configuration, Step 8
