CNAM Telephony Service

Applies to: Tmedia 3.0, 3.2, 3.3

To configure a telephony service, do the following:

1-Click Telephony Services in the navigation panel.

Telephony 0

2-Click Create New Telephony Service.

Telephony 1

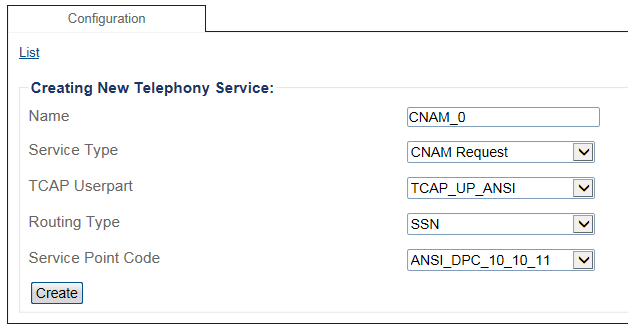

3-Enter values for the following fields:

• Name

• Service Type

• TCAP Userpart

• Routing Type

• Service Point Code

Click Create.

Telephony 2

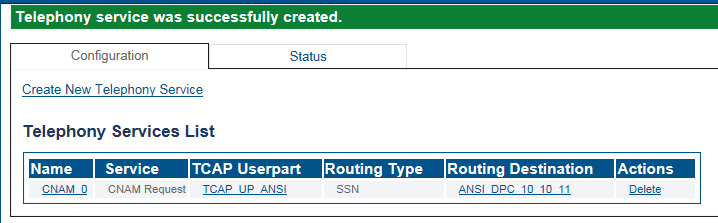

4-Verify that the "Telephony service was successfully created" message is displayed.

Telephony 3

**Path**

/configurations/@[configuration]/telephony_services/@[telephony_service]

Parameters (text)

/configurations/@[configuration]/telephony_services/@[telephony_service]
address_digits    = ""
dst_point_code    = "ANSI_DPC_10_10_11"
sccp_routing_type = "SSN"
tcap_userpart     = "TCAP_UP_ANSI"

Parameters (json)

{
  "name" : "CNAM_0",
  "telephony_services_tcap" : {
    "address_digits" : "",
    "dst_point_code" : "ANSI_DPC_10_10_11",
    "sccp_routing_type" : "SSN",
    "tcap_userpart" : "TCAP_UP_ANSI"
  },
  "telephony_services_type" : "CNAM Request"
}

List of Parameters

• Name

• Service Type

• TCAP USerpart

• Routing Type

• Service Point Code
