Web Portal 2.8: System Status

General System Status View

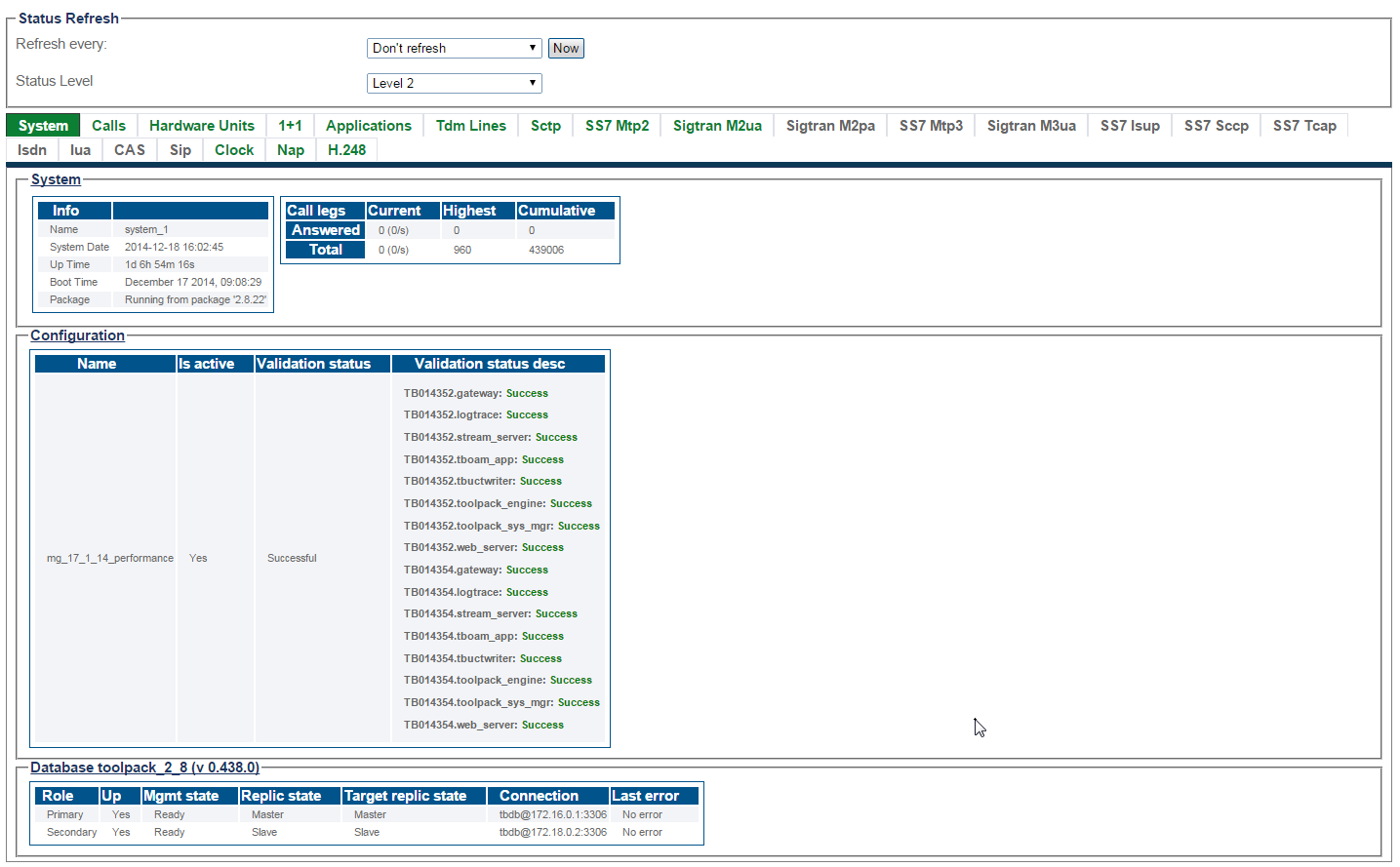

The Web Portal configuration tool presents a high-level view of system status, from which similar features or interfaces are grouped under common tabs for faster viewing. To highlight status, tabs display colors to indicate a general sense of system health. The colors used are:

• Green : All is okay.

• Yellow : Warning. In some cases, capacity may need to be reduced. The system is still operating.

• Red : Major fault. Some, or all, services or resources are not accessibale.

• Grey : The features, represented by the tab, are not configured.

StatusGeneral 0

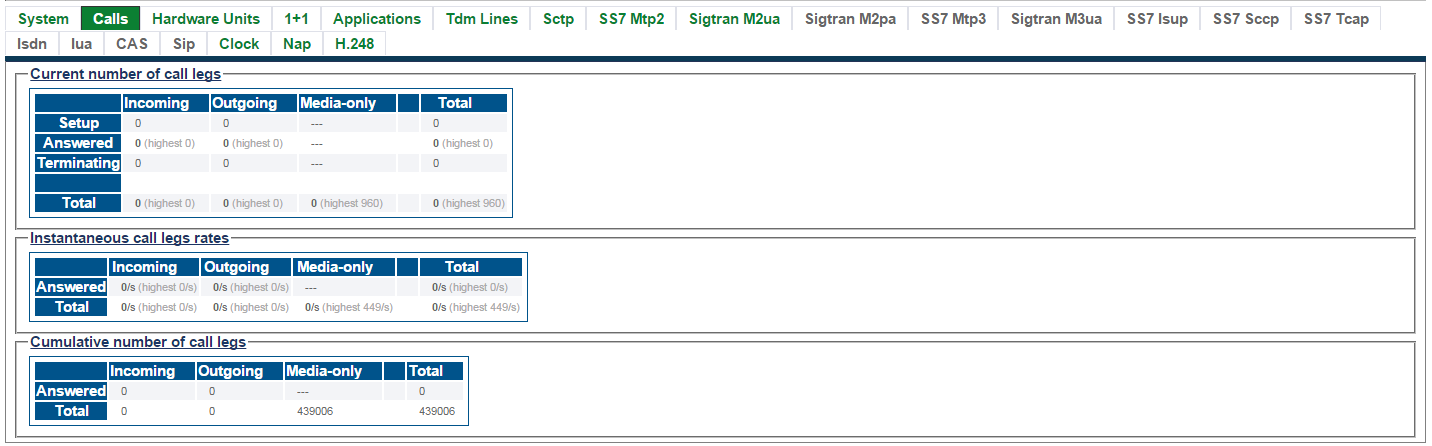

Selecting a specific tab, provides a detailed view of status.

StatusGeneral 1

Detailed Status Views

Host Roles
* Verify the Host Role

User Access
* Verify User Access

Database Backup
* Verify Database Backup

SNMP
* Verify SNMP Application

System Configuration
* Verify System Configuration

Package Upgrades
* Verify Package Upgrades

Software Licenses
* Verify Software Licenses

Statistics
* Generating Graphs

Audit Logs
* Working with Audit Logs

''
