TCAP Status

***Applies to version(s): v2.9, v2.10***

This article illustrates how to view SS7 TCAP status and to set a periodic refresh of the TCAP protocol stack. This is done from the Status menu and the Navigation panel.

Status menu

1- Click Status in the navigation panel.

Status 0

2- Click the SS7 TCAP tab.

TabTcap 0

The status of the TCAP protocol stack is displayed.

StatusTcap 0

Navigation Panel

1- Click TCAP from the navigation panel.

StatusTcap 1

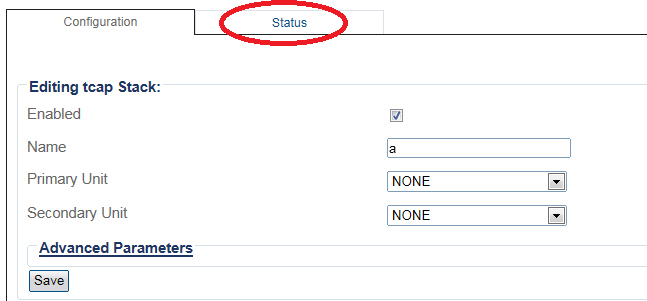

2- Click the Status tab.

StatusTcap 2

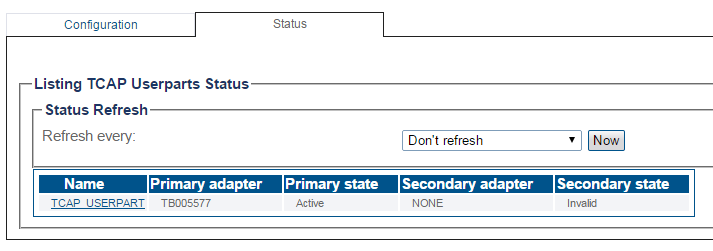

3- To configure a periodic refresh of the TCAP status, select a value from Refresh Every.

StatusTcap 3

Northbound Interface

Path

/configurations/@[configuration_name]/tcap_stacks/@[tcap_stack]/status
