SCTP Status

***Applies to version(s): v2.9, v2.10***

There are multiple ways to verify the status of an SCTP protocol stack. This article illustrates how to view status and to set a periodic refresh of the SCTP protocol stack. This is done from the Status menu and the Navigation panel.

Status menu

1- Click Status in the navigation panel.

Status 0

2- Click the SCTP tab.

TabSCPT 0

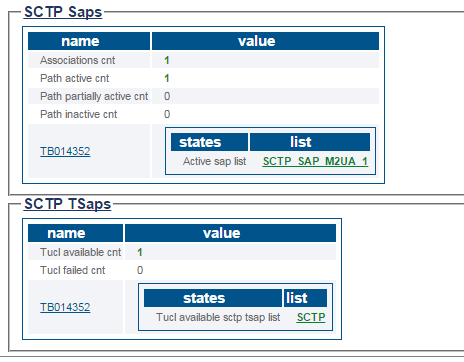

The status of the SCTP protocol stack is displayed.

StatusSCPT 0

Navigation Panel

1- Click SCTP from the navigation panel.

CreateSctp 0

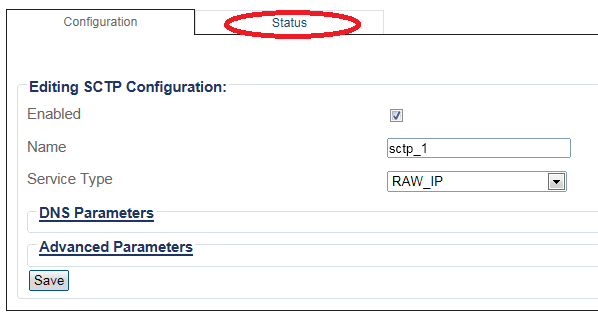

2- Click the Status tab.

StatusScpt 1

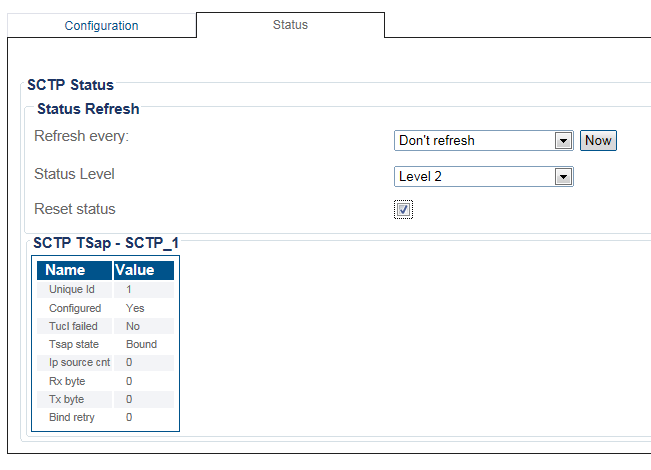

3- To configure a periodic refresh of the SCTP status, select a value from Refresh Every.

StatusScpt 2

Northbound Interface

Path

/configurations/@[configuration_name]/hardware_units/@[hardware_name]/sctp_stacks/status
