SCCP Status

***Applies to version(s): v2.9, v2.10***

This article illustrates how to view SS7 SCCP status and to set a periodic refresh of the SCCP protocol stack. This is done from the Status menu and the Navigation panel.

Status menu

1- Click Status in the navigation panel.

Status 0

2- Click the SS7 SCCP tab.

TabSccp 0

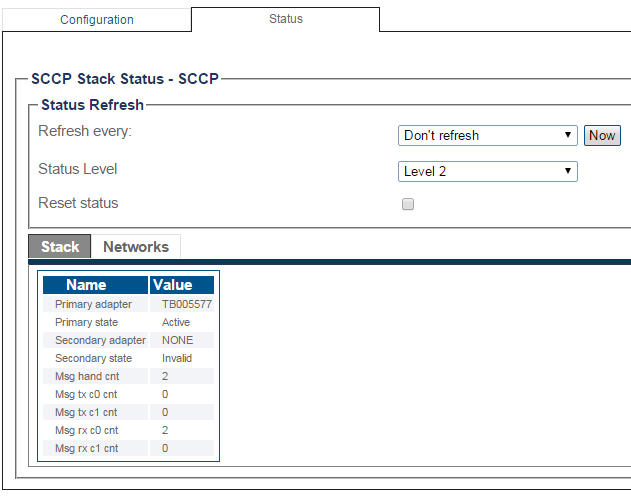

The status of the SCCP protocol stack is displayed.

StatusSccp 0

Navigation Panel

1- Click SCCP from the navigation panel.

StatusSccp 1

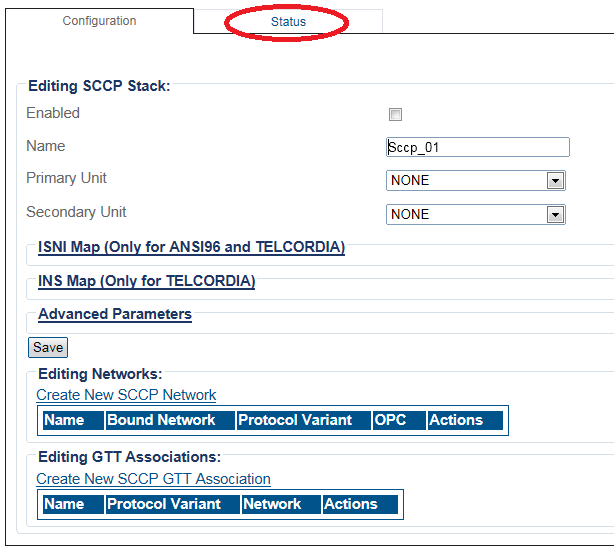

2- Click the Status tab.

StatusSccp 2

3- To configure a periodic refresh of the SCCP status, select a value from Refresh Every.

StatusSccp 3

4- To view the status of the Sccp Network, click the Networks tab.

StatusSccp 3a

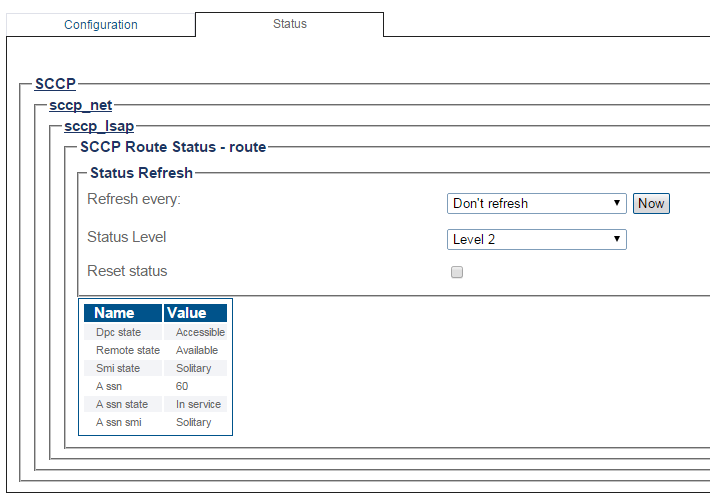

• The SCCP network status is displayed.

StatusSccp 4

StatusSccp 5

Northbound Interface

Path

/configurations/@[configuration_name]/sccp_stacks/@[sccp_stack]/status
