MTP3 Status

***Applies to version(s): v2.9, v2.10***

This article illustrates how to view MTP3 status and to set a periodic refresh of the MTP3 protocol stack. This is done from the Status menu and the Navigation panel.

Status menu

1- Click Status in the navigation panel.

Status 0

2- Click the SS7 MTP3 tab.

TabMtp3 0

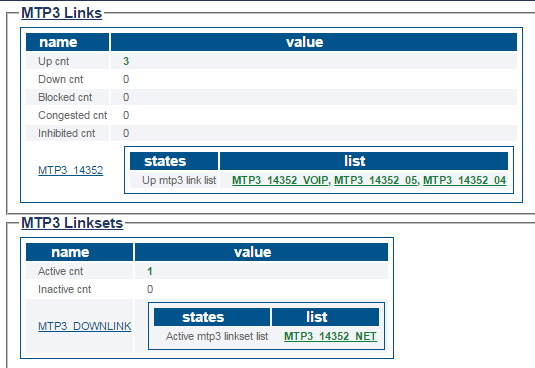

The status of the MTP3 protocol stack is displayed.

StatusMtp3 0

Navigation Panel

1- Click MTP3 from the navigation panel.

StatusMtp3 1

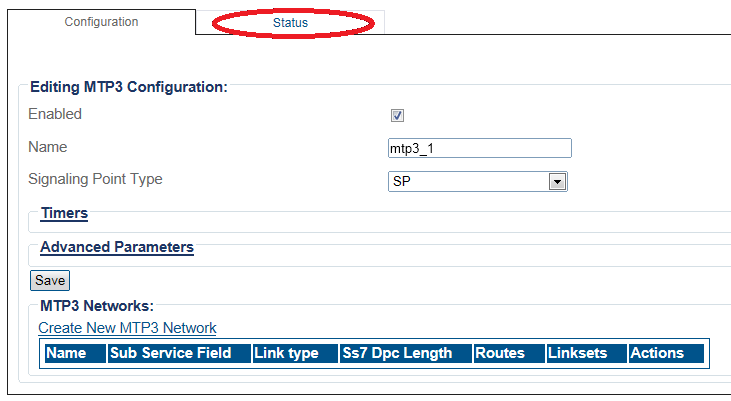

2- Click the Status tab.

StatusMtp3 2

3- To configure a periodic refresh of the MTP3 status, select a value from Refresh Every.

StatusMtp3 3
