MTP2 Status

Applies to: Tmedia 2.9, 2.10, 3.0, 3.2

This article illustrates how to view MTP2 status from the Status menu and the Navigation panel.

Status menu

1- Click Status in the navigation panel.

Status 0

2- Click the SS7 MTP2 tab.

TabMTP2 0

3- The MTP2 protocol stack list is displayed.

• Select an MTP2 link.

StatusMTP2 0

4- The status of the MTP2 link is displayed.

StatusMtp2 3

Navigation Panel

1- Click MTP2 from the navigation panel.

StatusMTP2 1

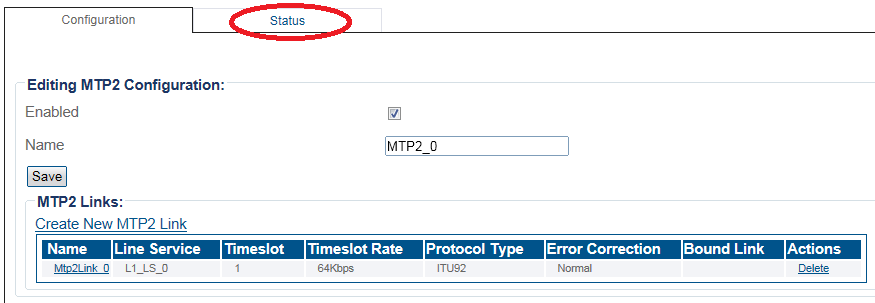

2- Click the Status tab.

StatusMTP2 2

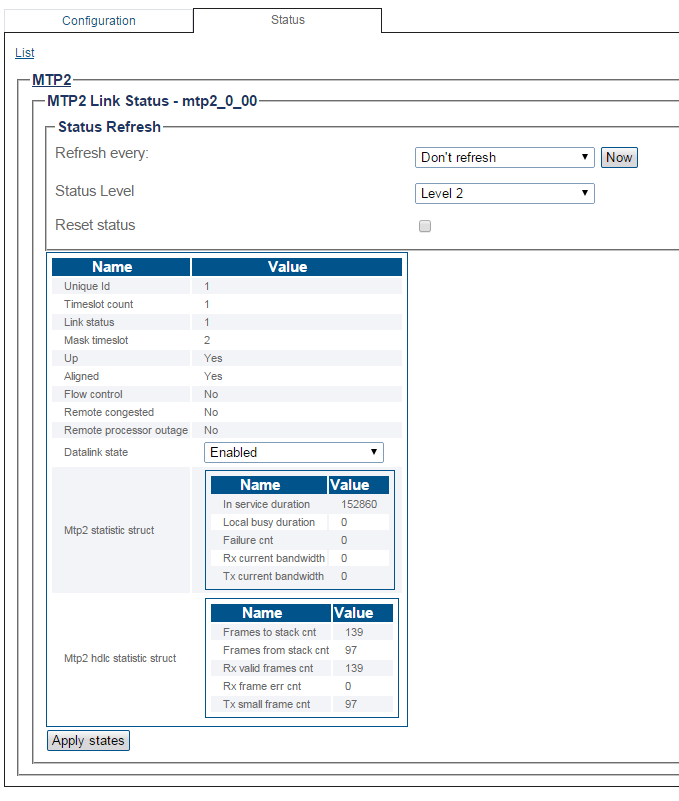

3- The status of the MTP2 link is displayed.

StatusMtp2 3

Northbound Interface

Path

/configurations/@[configuration_name]/hardware_units/@[hardware_name]/mtp2_stacks/@[mtp2_name]/status
