ISUP Status

***Applies to version(s): v2.9, v2.10***

This article illustrates how to view SS7 ISUP status and to set a periodic refresh of the ISUP protocol stack. This is done from the Status menu and the Navigation panel.

Status menu

1- Click Status in the navigation panel.

Status 0

2- Click the SS7 ISUP tab.

TabIsup 0

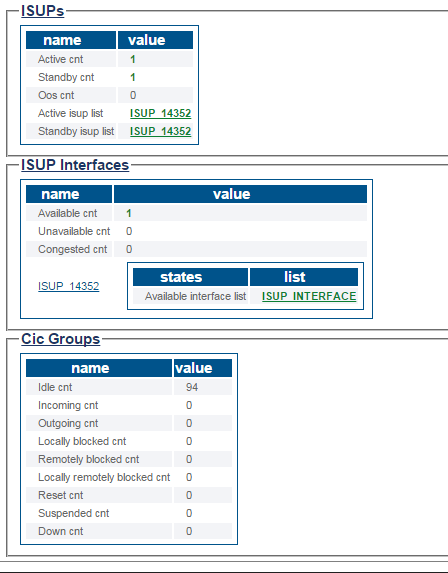

The status of the ISUP protocol stack is displayed.

StatusIsup 0

Navigation Panel

1- Click ISUP from the navigation panel.

StatusIsup 1

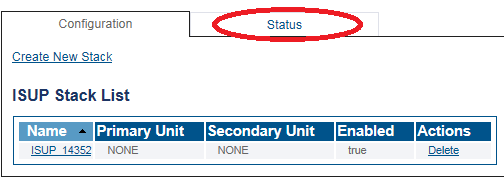

2- Click the Status tab.

StatusIsup 2

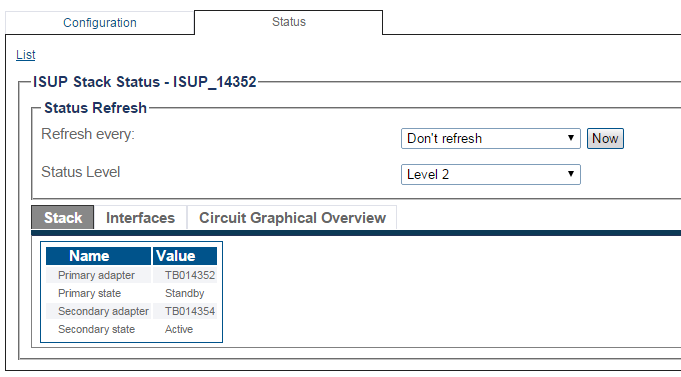

3- To configure a periodic refresh of the ISUP status, select a value from Refresh Every.

StatusIsup 3

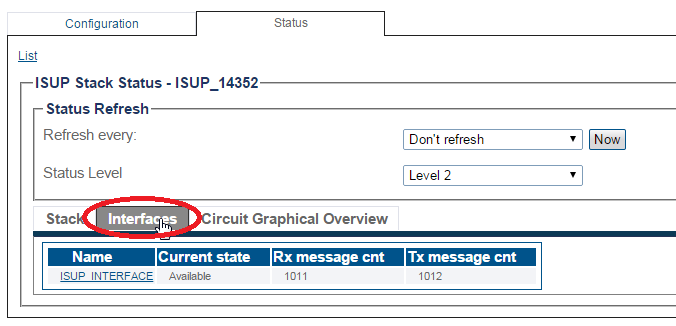

4- To view the status of the ISUP interfaces, click Interfaces.

StatusIsup 4

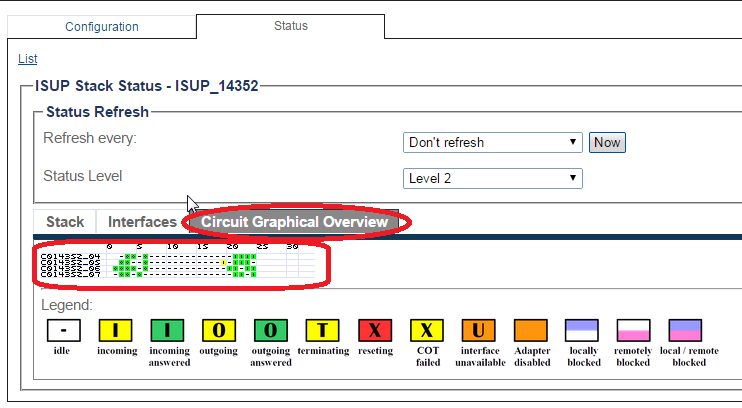

5- To view a graphical overview of the ISUP circuit status, click Circuit Graphical Overview

The status of calls for each circuit of the ISUP stack are shown using a graphical notation.

StatusIsup 5

Northbound Interface

Path

/configurations/@[configuration_name]/isup_stacks/@[isup_stack]/status
