Status Menus:N+1

Applies to version(s): v2.7.

General status information about the N+1 Groups is accessible from the N+1 tab of the Global Status view.

The N+1 view lists the one or more N+1 groups that are being used.

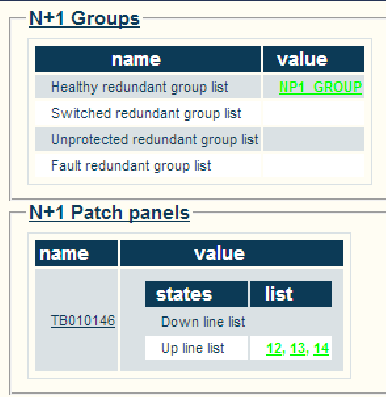

Normal Status Conditions

• Select a link to access detailed information:

Nplus1Status 0

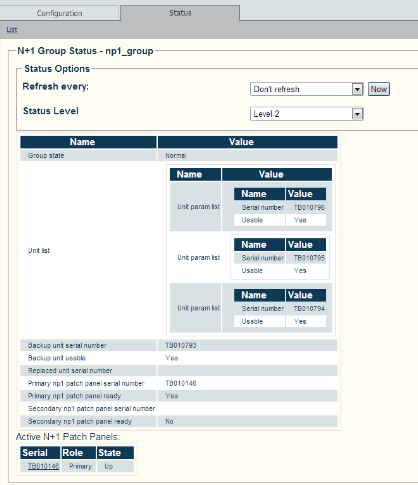

Detailed status information:

Nplus1Status 1

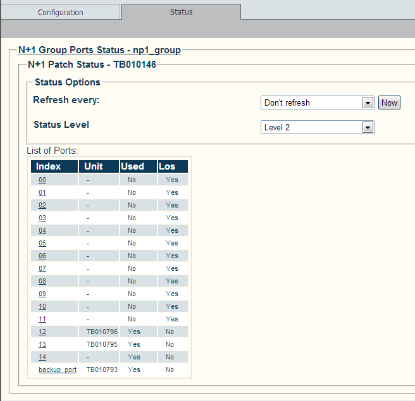

Status information for the N+1 patch panel.

Nplus1Status 2

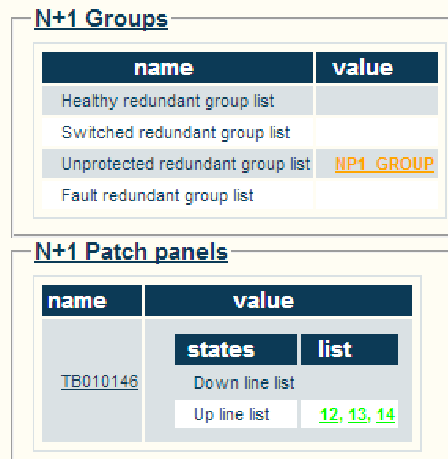

Fault Status Conditions

• Select a link to access detailed information:

Nplus1StatusDown 0

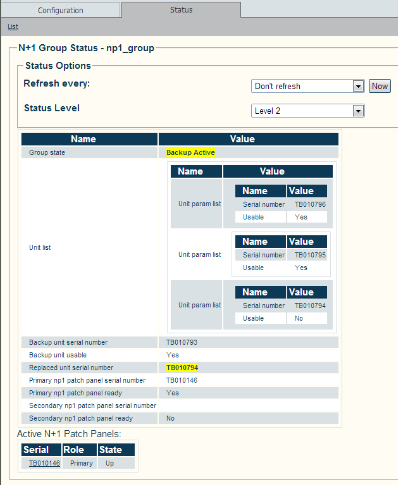

Detailed Status information

Nplus1StatusDown 1

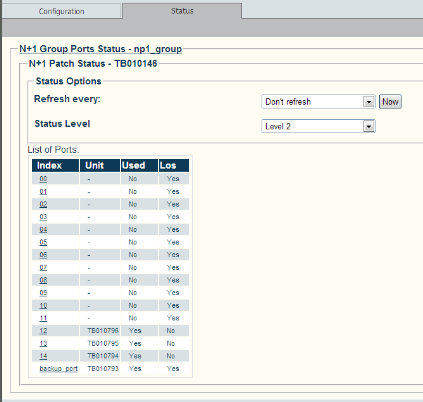

Fault status information for the N+1 patch panel.

Nplus1StatusDown 2
