Network Monitoring Status

***Applies to version(s): v2.9, v2.10, v3.0, v3.2***

There are multiple ways to verify the status of network monitoring. This is done from the Status menu and the Navigation panel.

Status menu

1- Click Status in the navigation panel.

Status 0

2- Click the Monitoring tab.

StatusMonitoring 0

The monitoring status is displayed, as two sub-tabs.

The first tab contains a summary of ISDN analyzers status, indicating which are available (all line services are up), partially available (some line services are down) or unavailable (all line services are down).

StatusMonitoring 1 ISDN

The second tab contains a summary of SIP simulators status, indicating which are available (all destinations available), partially available (some destinations unavailable) or unavailable (all destinations unavailable).

StatusMonitoring 1 Simulator

ISDN Analyzers Status (Navigation Panel)

1- Click ISDN Analyzers from the navigation panel.

StatusMonitoring 2 ISDN

2- Click the Status tab.

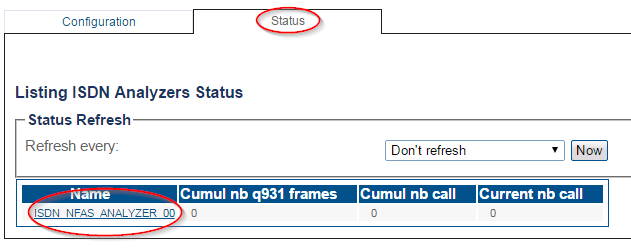

• A summary of per-analyzer status is displayed.

• Select a ISDN analyzer from the list.

StatusMonitoring 3 ISDN

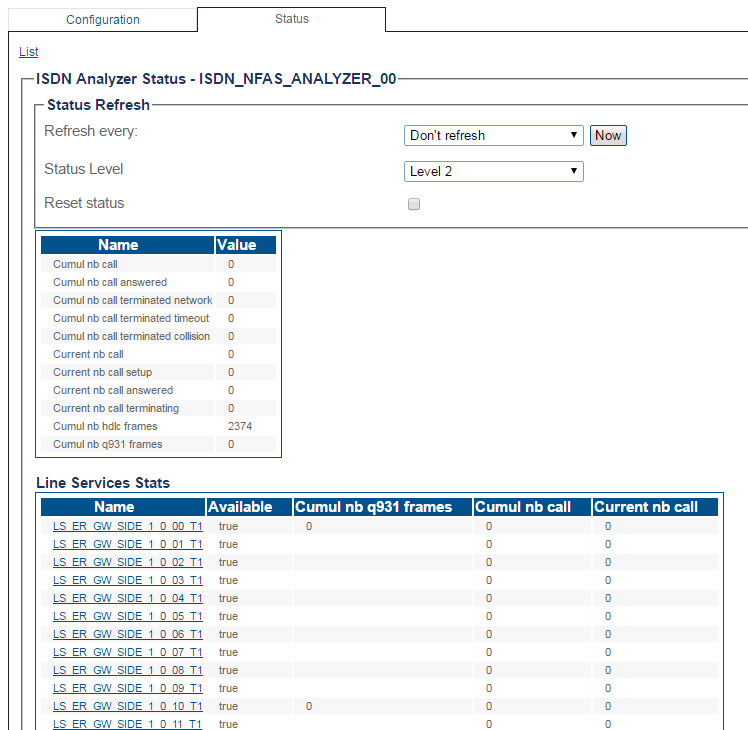

The ISDN Analyzer status is displayed.

StatusMonitoring 4 ISDN

Northbound Interface

Path

/configurations/@[configuration_name]/mon_isdn_analyzers/@[isdn_analyzer]/status

SIP Simulator Status (Navigation Panel)

1- Click SIP Simulators from the navigation panel.

StatusMonitoring 2 simulator

2- Click the Status tab.

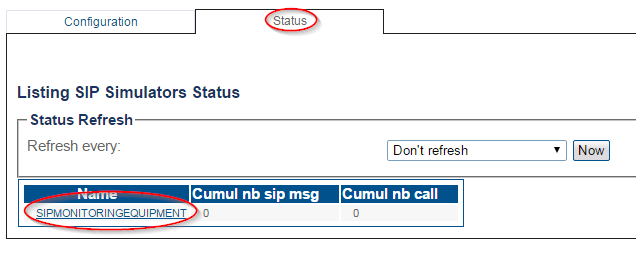

• A summary of per-simulator status is displayed.

• Select a SIP Simulator from the list.

StatusMonitoring 3 simulator

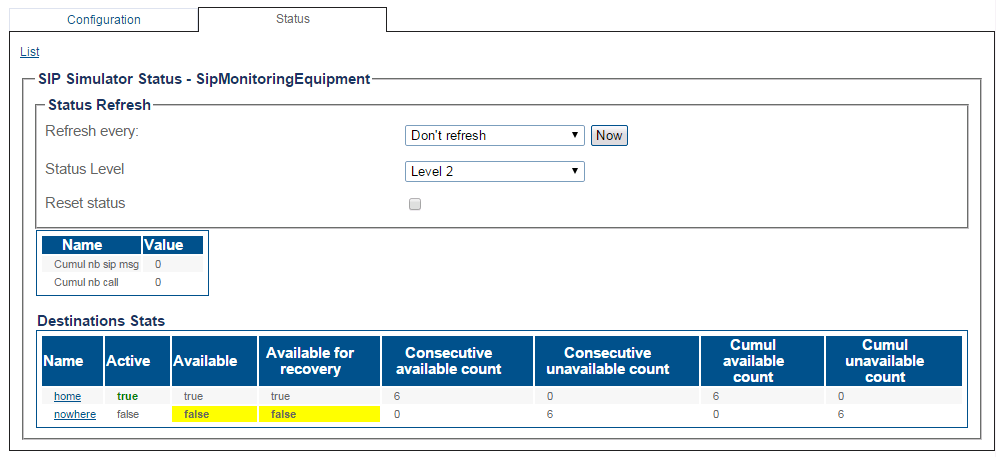

The SIP Simulator status is displayed.

StatusMonitoring 4 simulator

Northbound Interface

Path

/configurations/@[configuration_name]/mon_sip_simulators/@[sip_simulator]/status
