TDM Lines Status

Applies to: Tmedia 2.9, 2.10, 3.0, 3.2

There are multiple ways to verify the status of TDM lines. This article illustrates how to verify status using the Status menu and the Navigation panel.

Status menu

1- Click Status in the navigation panel.

Status 0

2- Click the TDM Lines tab.

TabTdmLines 0

3- The TDM lines are grouped by their status into categories, as defect, down, and up. Selecting any of the the TDM lines displays further details.

StatusTDMLines 0

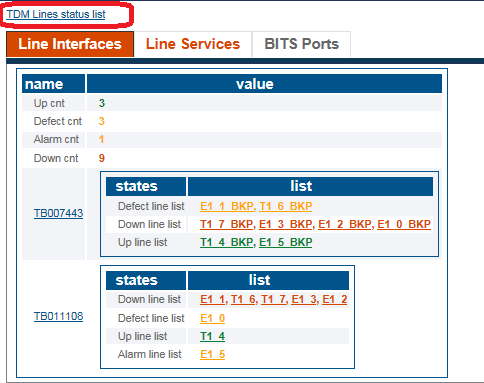

• Click the 'TDM Lines status list link to view a list of all the lines with their associated line services.

StatusTDMLines 1a

Navigation Panel

1- Click TDM Line Interfaces from the navigation panel.

StatusTdmLines 2

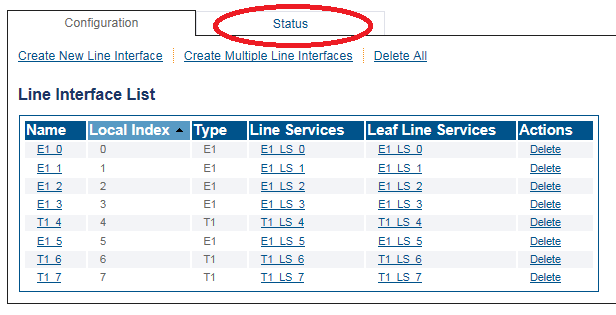

2- Click the Status tab.

StatusTdmLines 3

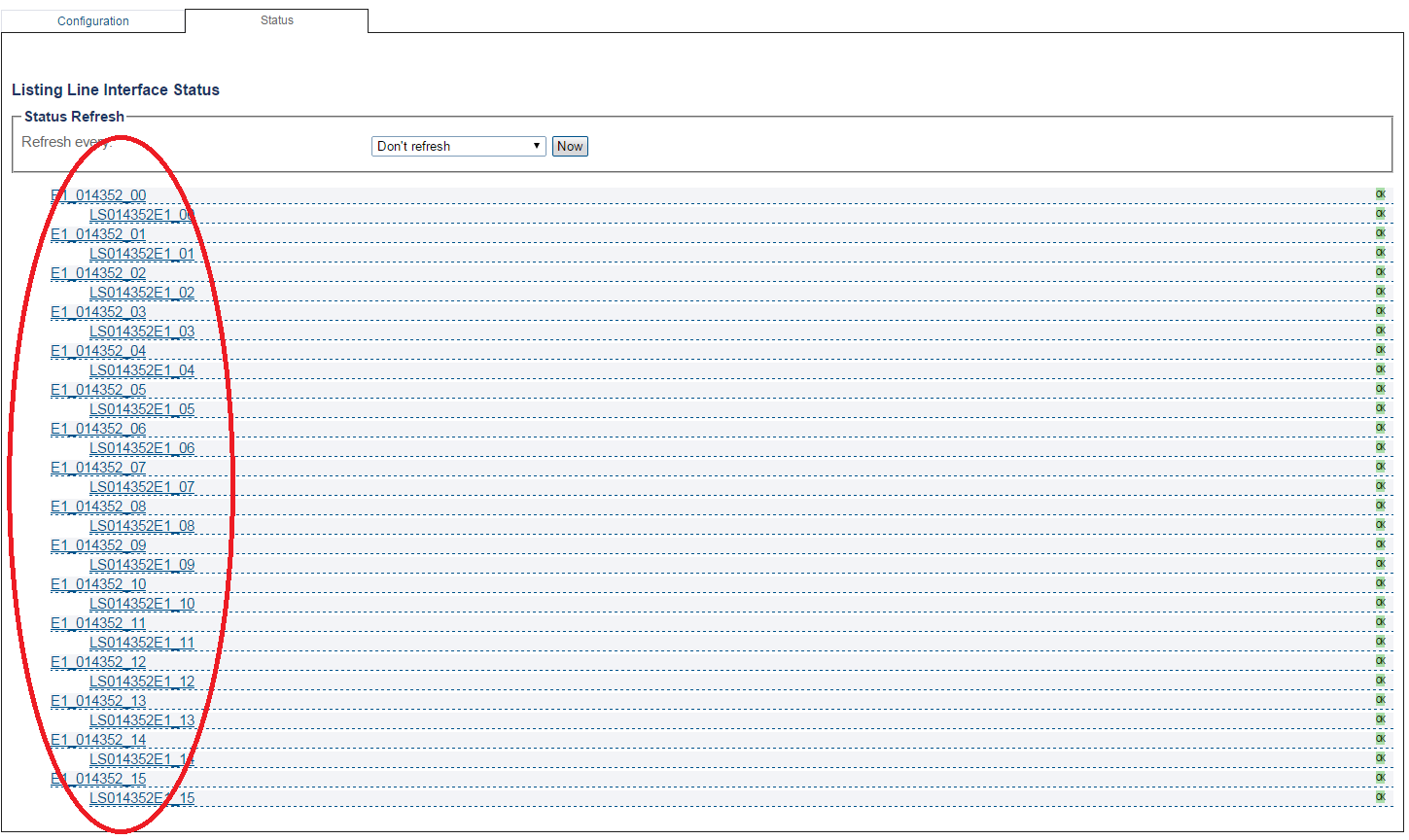

3- Select any line interface or line service for more detailed status information.

StatusTDMLines 1a

Northbound Interface

Path (line interface)

/configurations/@[configuration_name]/hardware_units/@[hardware_name]/tdm_line_interfaces/@[line_interface_name]/status

Path (line service)

/configurations/@[configuration_name]/hardware_units/@[hardware_name]/tdm_line_interfaces/@[line_interface_name]/line_services/@[line_service_name]/status
