Hardware Unit Status

***Applies to version(s): v2.10, 3.0, 3.2***

There are multiple ways to verify the status of a hardware unit. This article illustrates how to verify status using the Status menu and the Navigation panel.

Status menu

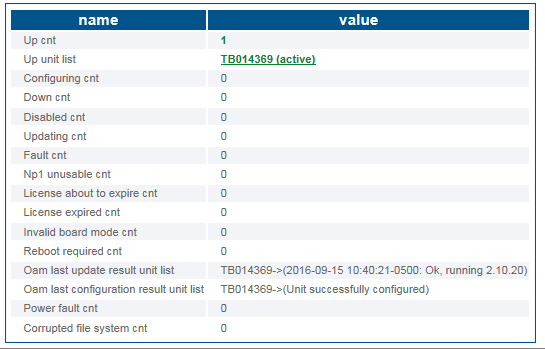

1- Click Status in the navigation panel.

Status 0

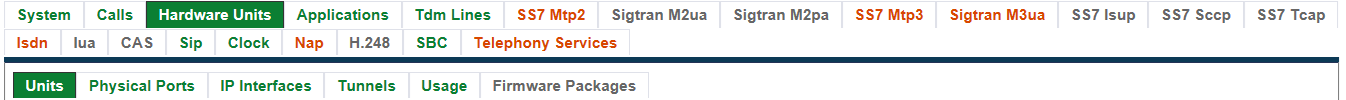

2- Click the Hardware Units tab.

TabHardware 0

3- Click the Units tab.

TabHardware Units 0 A

4- Select the desired hardware unit serial number.

StatusHardware 1a A

The status of the hardware unit is displayed.

StatusHardware 4 A

Navigation Panel

1- Click Hardware Units from the navigation panel.

StatusHardwareNavPanel 0

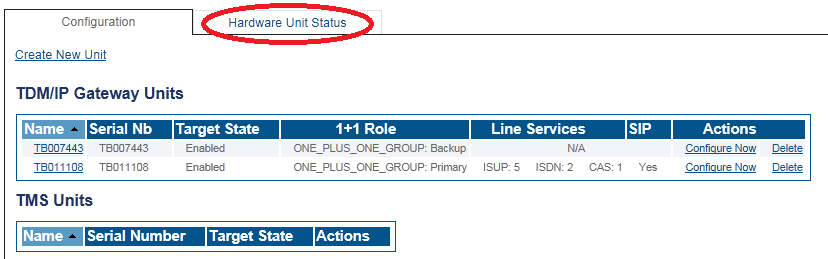

2- Click the Hardware Unit Status tab.

StatusHardware 2

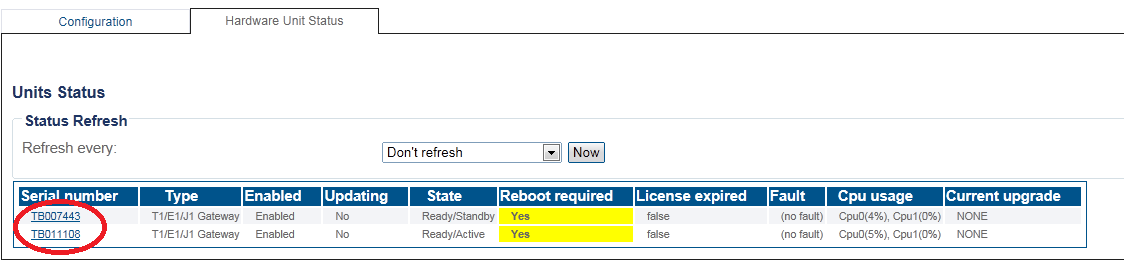

3- Select a hardware unit serial number from TDM/IP Gateway Units or TMS Units list.

StatusHardware 3

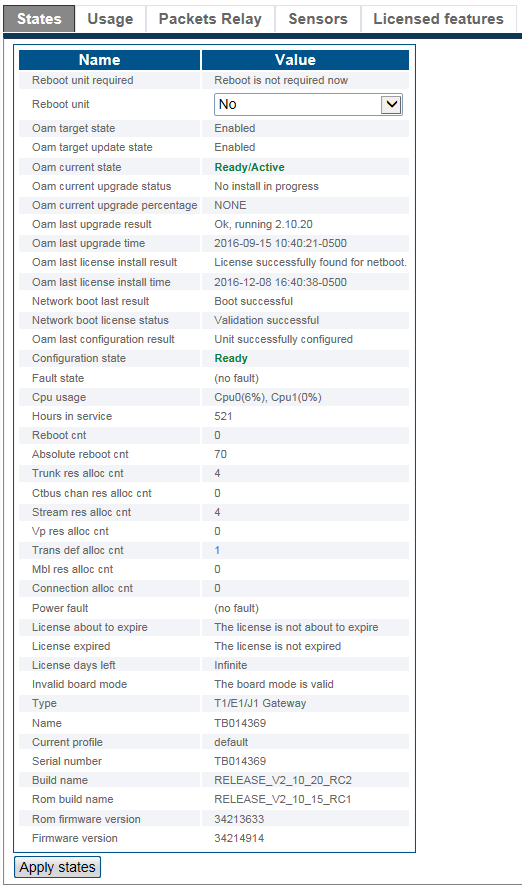

The status of the hardware unit is displayed.

StatusHardware 4 A

Northbound Interface

Path

/configurations/@[configuration_name]/hardware_units/@[hardware_name]/status
