Radius Status

***Applies to version(s): v2.9, v2.10, v3.0, v3.2***

This article illustrates how to verify the Radius servers using the Status menu and the Navigation panel.

Status menu

1- Click Status in the navigation panel.

Status 0

2- Click the RADIUS tab.

TabRadius 0

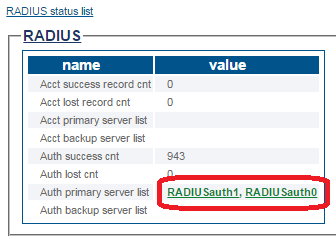

3- The Radius server list is displayed.

• Select a Radius server.

StatusRadius 0

The current status of the Radius server is displayed.

StatusRadius 1

Navigation panel

1- Click RADIUS from the navigation panel.

StatusRadius 2

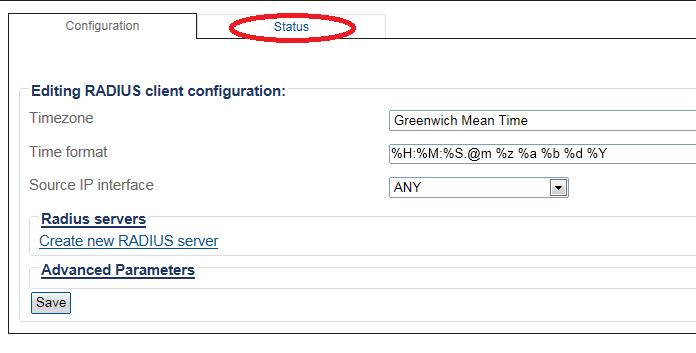

2- Click the Status tab.

StatusRadius 3

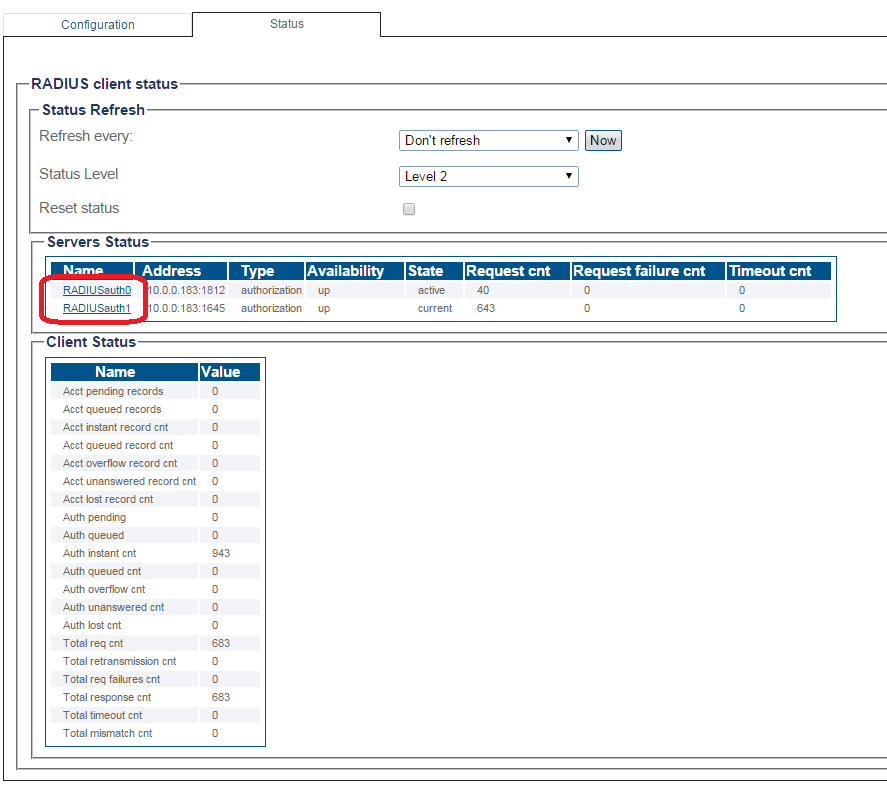

3- Select a Radius server.

StatusRadius 4

Address

• The IP address and the UDP port of the Radius server.

Type

• Authorization for Authorization and Authentication. Accounting for CDRs.

Availability

• Up: Got a response

• Down: Got a request response timeout

• Unknown: Did not try to send request yet

State

• Current: Preferred server to send packet if last Availability was Up

• Active: Can be used as a server to send information

• Inactive: Not used

Other parameters

• **Request cnt: ** Number of requests that were sent

• **Retransmission cnt: ** Number of retransmissions to this Radius server

• **Request failure cnt: ** Number of requests that could not be sent

• **Response cnt: ** Number of responses received from this Radius server

• **Timeout cnt: ** Number of times the Requests timed out

Client Status

• Acct pending records: Current number of pending accounting records (sent but not acknowledged yet)

• Acct queued records: Current number of queued accounting records (waiting to be sent)

• Acct instant record cnt: Number of accounting records that were instantaneously sent to a server without being queued

• Acct queued record cnt: Number of accounting records that were queued before being sent

• Acct overflow record cnt: Number of accounting records that were discarded because the queue was full

• Acct unanswered record cnt: Number of accounting records that were discarded because no servers acknowledged them

• Acct lost record cnt: Number of accounting records that were lost either because they didn't fit in a queue or no servers response received for them

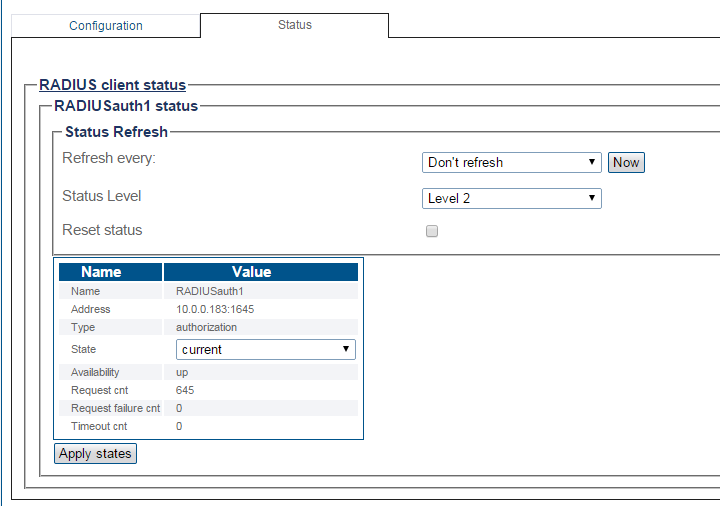

The current status of the Radius server is displayed and the state can be changed.

StatusRadius 1

Northbound Interface

Path

/configurations/@[configuration_name]/gateways/@[gateway_name]/status
