Toolpack NAP Status

***Applies to version(s): v2.10, v3.0***

There are multiple ways to verify the status of NAPs. This article illustrates how to verify status using the Status menu and the Navigation panel.

Status Menu

To view the status of the NAPS:

1- Click Status in the navigation panel.

StatusNapTab 0

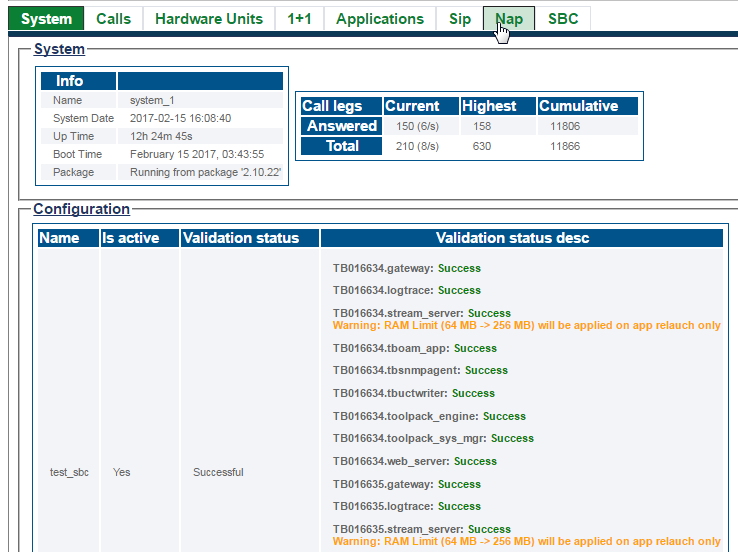

2- Click the NAP tab.

StatusNAPTab 1

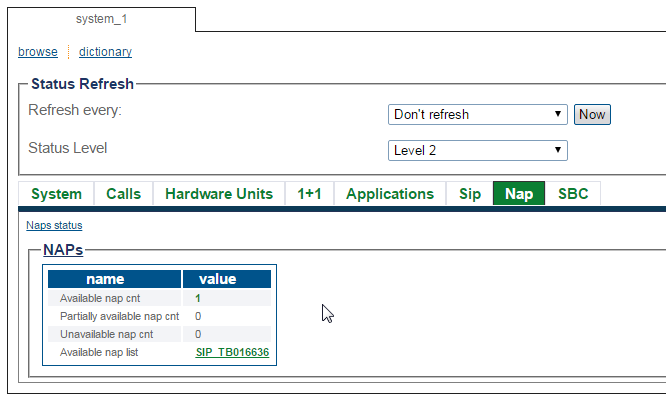

3- Select a NAP from the list.

StatusNAPTab 2

Navigation Panel

To view the status of the NAP:

1- Click NAP in the navigation panel.

StatusNapMenu 1

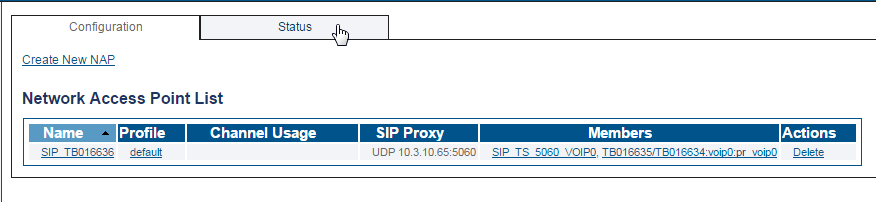

2- Click the Status tab.

StatusNapMenu 2

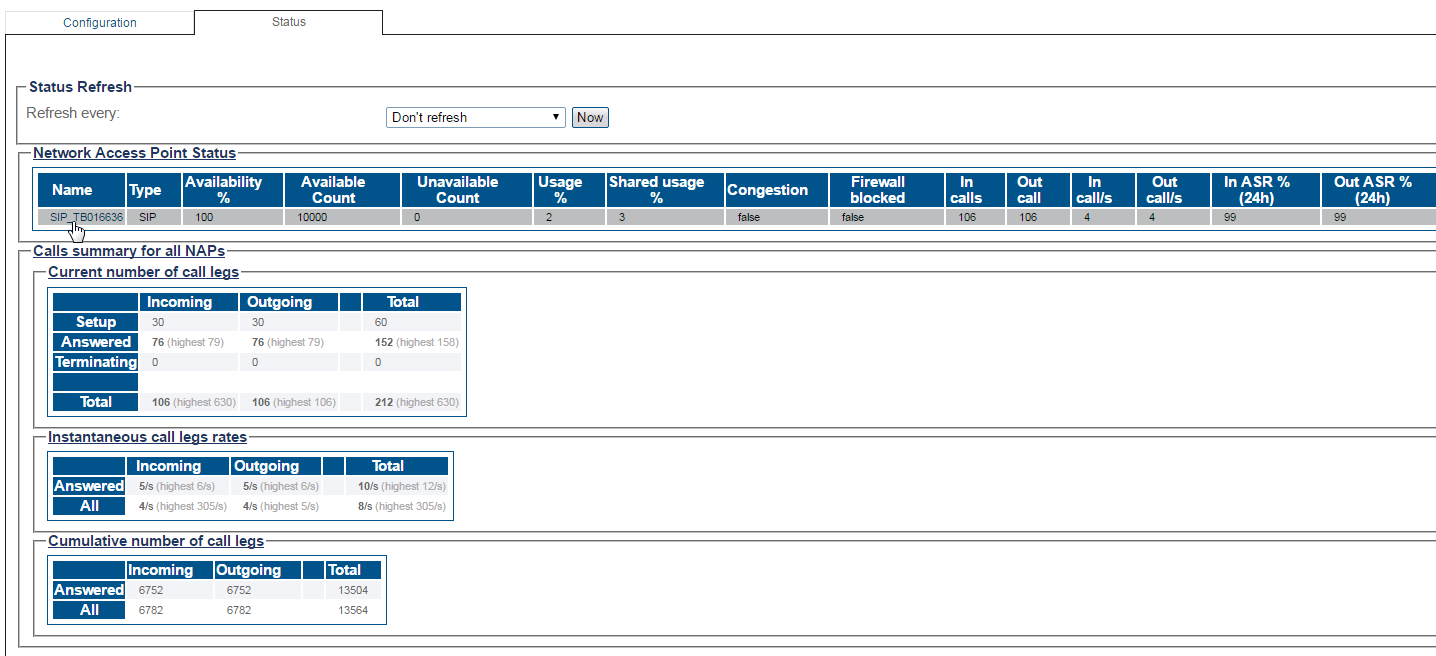

3- Select an NAP from the list.

StatusNapMenu 3

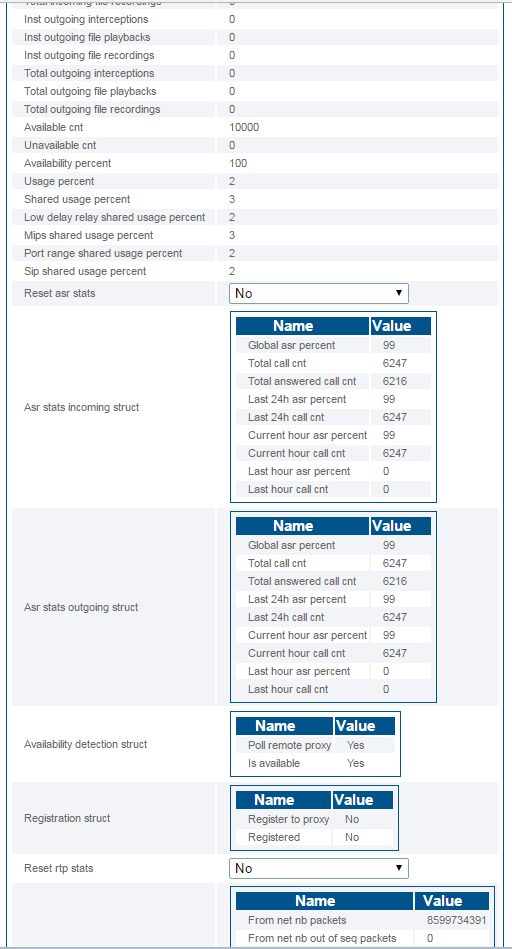

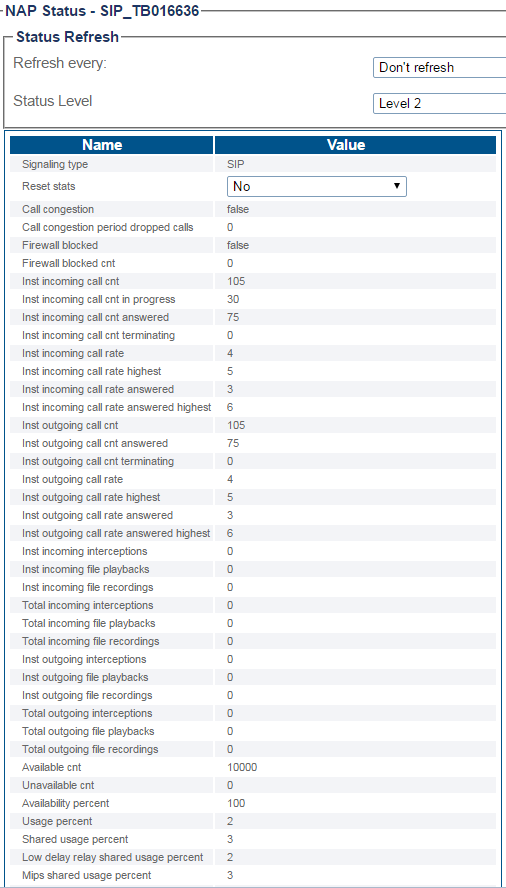

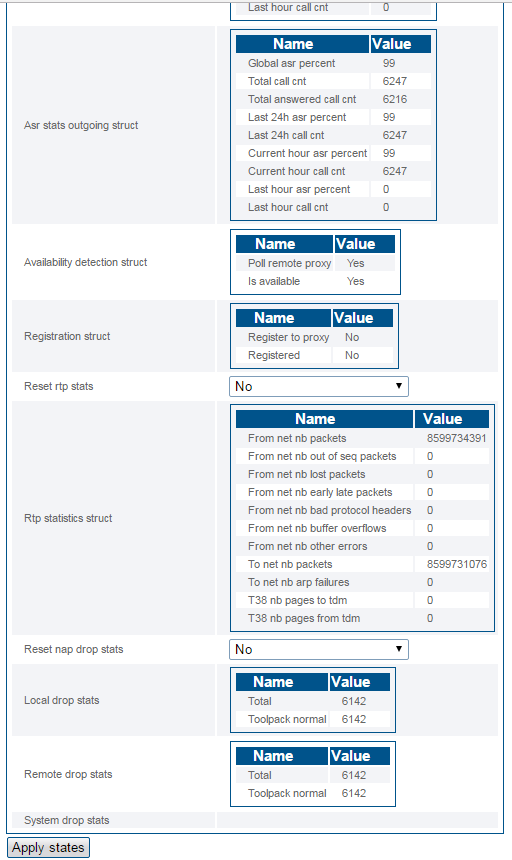

The NAP status is displayed.

StatusNapMenu 4

StatusNapMenu 5

StatusNapMenu 6

Northbound Interface

Path

/configurations/@[configuration_name]/naps/@[nap_name]/status
