SIP Domain (Registrars and Users/Contacts) Status

***Applies to version(s): v3.0***

This article illustrates how to view SIP Domain (Registrars and Users/Contacts) status and to set a periodic refresh of the SIP Domain (Registrars and Users/Contacts). This is done from the Status menu and the Navigation panel.

Status menu

1- Click Status in the navigation panel.

Select Status NavigationMenu

2- Click the SIP tab.

Select StatusSIP

The status of the SIP Domain is displayed.

StatusSIPDomain States

Navigation Panel

1- Click SIP Domain from the navigation panel.

SIP Domain NavigationMenu

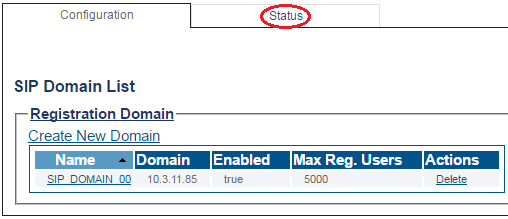

2- Click the Status tab.

Select SIPDomainStatus

SIP Domain

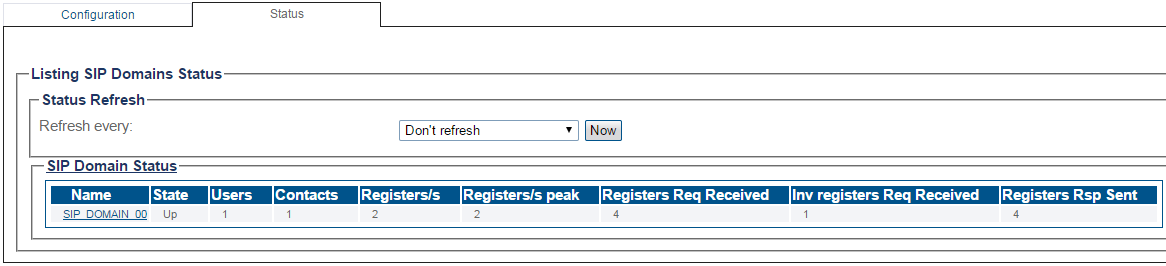

3- The SIP Domain status is displayed.

• To configure a periodic refresh of the SIP Domain status, select a value from Refresh Every.

SIP StatusDomain1

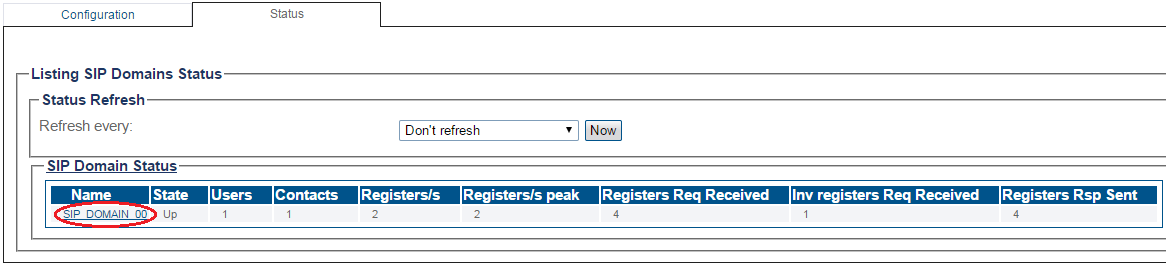

4- Select a SIP Domain to view its detailed status.

SIP StatusDomain2

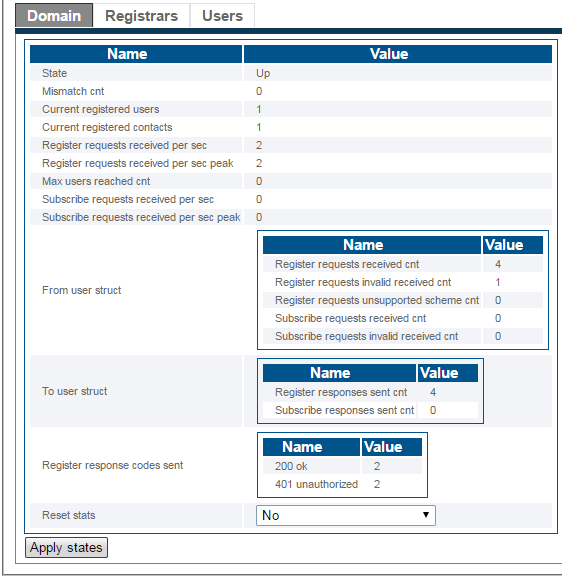

• The detailed status of the SIP Domain is displayed.

SIP StatusDomain3

SIP Registrars

5- Click the Registrars tab to view its status.

SIP StatusRegistrar

6- Select a SIP Registrar to view its detailed status.

SIP StatusRegistrar1

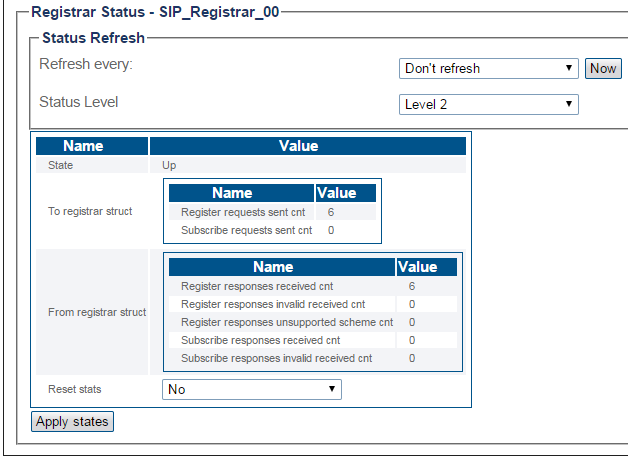

• The detailed status of the SIP Registrar is displayed.

SIP StatusRegistrar2

SIP Users

7- Click the Users tab to view its status.

SIP StatusUsers

8- Select a SIP User to view its detailed status.

SIP StatusUsers1

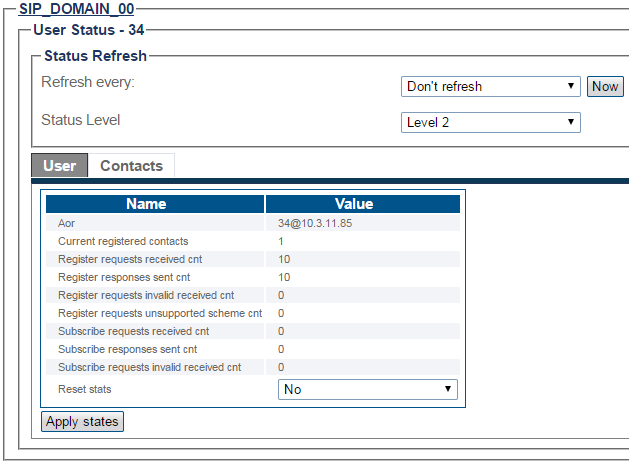

• The detailed status of the SIP User is displayed.

SIP StatusUsers2

SIP Contacts

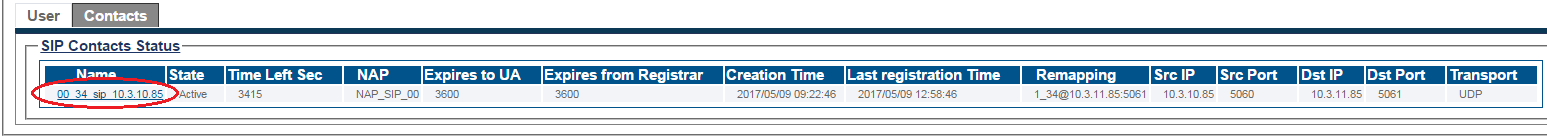

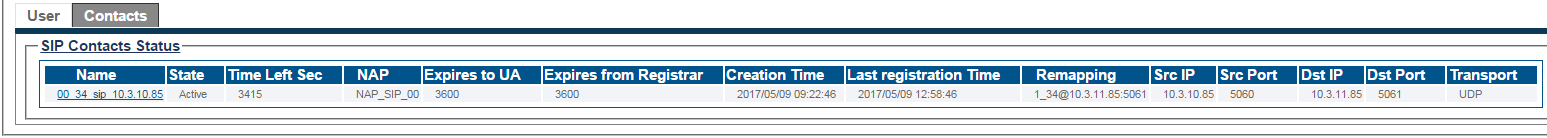

9- Click the Contacts tab to view its status.

SIP StatusContacts

10- Select a SIP Contact to view its detailed status.

SIP StatusContacts1

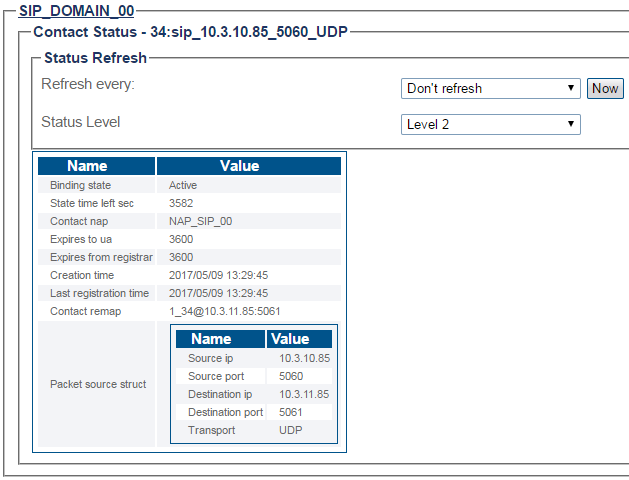

• The detailed status of the SIP Contact is displayed.

SIP StatusContacts2
