ISDN Status

Applies to: Tmedia 2.9, 2.10, 3.0, 3.2

This article illustrates how to view ISDN status and to set a periodic refresh of the ISDN protocol stack. This is done from the Status menu and the Navigation panel.

Status menu

1- Click Status in the navigation panel.

Status 0

2- Click the ISDN tab.

TabIsdn 0

The status of the ISDN protocol stack is displayed.

StatusIsdn 0

Navigation Panel

1- Click ISDN from the navigation panel.

StatusIsdn 1

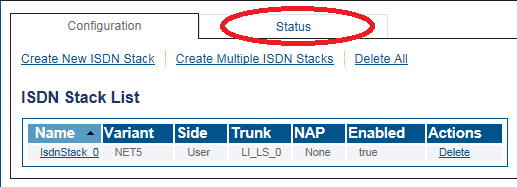

2- Click the Status tab.

StatusIsdn 2

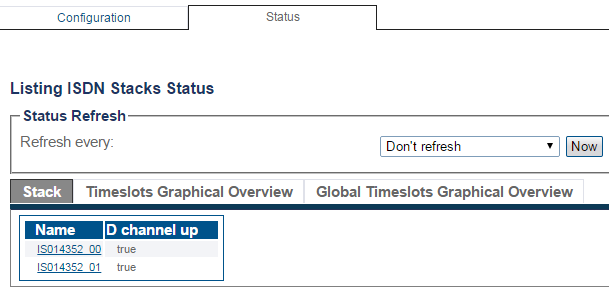

3- The ISDN Stack status is displayed.

• To configure a periodic refresh of the ISDN status, select a value from Refresh Every.

StatusIsdn 3

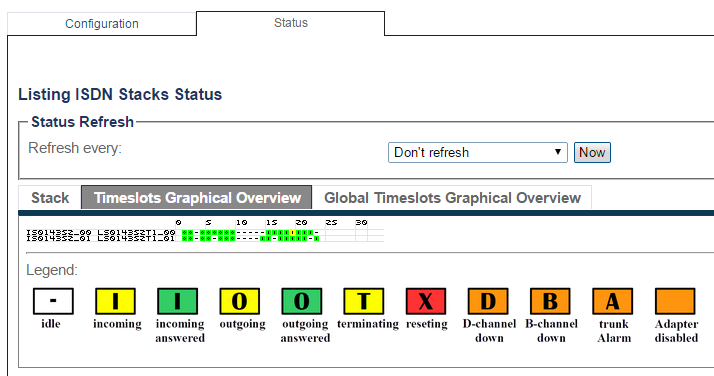

4- To view the status of the ISDN timeslots, click Timeslots Graphical Overview.

StatusIsdn 4

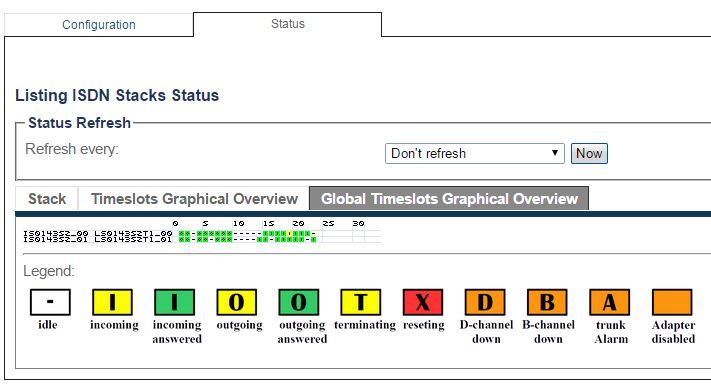

5- To view a global view of the ISDN timeslots, click Global Timeslots Graphical Overview

StatusIsdn 5

Northbound Interface

Path

/configurations/@[configuration_name]/hardware_units/@[hardware_name]/isdn_stacks/@[isdn_stack]/status
