H.248 Status

***Applies to version(s): v2.9, v2.10***

There are muliple way to verify the status of an H.248 protocol stack. This article illustrates how to view status and to set a periodic refresh of the H.248 protocol stack. This is done from the Status menu and the Navigation panel.

Status menu

1- Click Status in the navigation panel.

Status 0

2- Click the H.248 tab.

TabH248 0

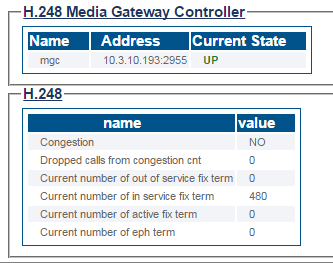

The status of the H.248 protocol stack is displayed.

StatusH248 0

Navigation Panel

1- Click H.248 from the navigation panel.

StatusH248 1

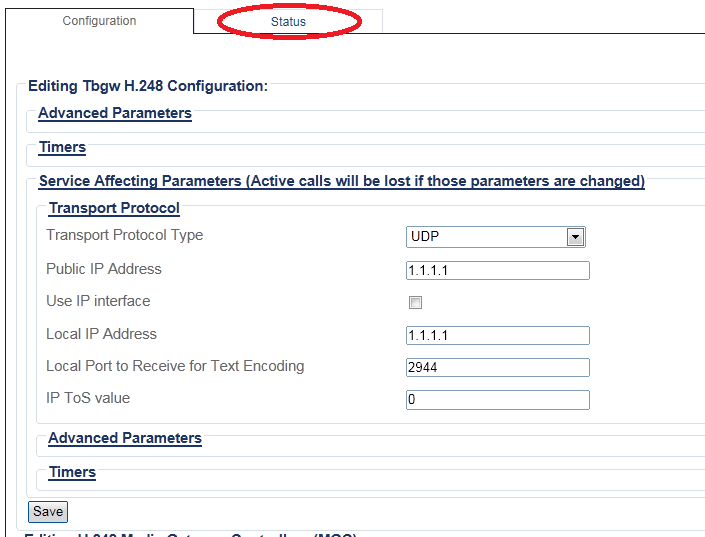

2- Click the Status tab.

StatusH248 2

3- To configure a periodic refresh of the H.248 status, select a value from Refresh Every.

StatusH248 3

Northbound Interface

Path

/configurations/@[configuration_name]/h248_stacks/@[h248_stack]/status
