CAS Status

***Applies to version(s): v2.9, v2.10***

This article illustrates how to view CAS status and to set a periodic refresh of the CAS protocol stack. This is done from the Status menu and the Navigation panel.

Status menu

1- Click Status in the navigation panel.

Status 0

2- Click the CAS tab.

TabCAS 0

The status of the CAS protocol stack is displayed.

StatusCAS 0

Navigation Panel

1- Click CAS from the navigation panel.

StatusCAS 1

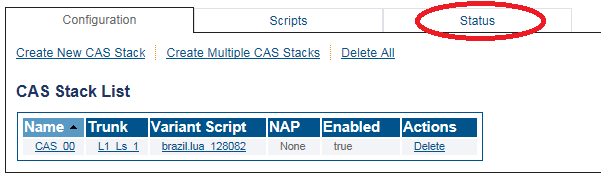

2- Click the Status tab.

StatusCAS 2

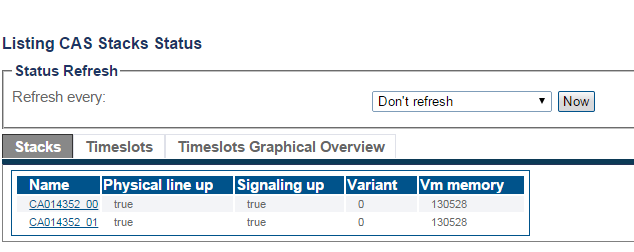

3- The CAS Stack status is displayed.

• To configure a periodic refresh of the CAS status, select a value from Refresh Every.

StatusCAS 3

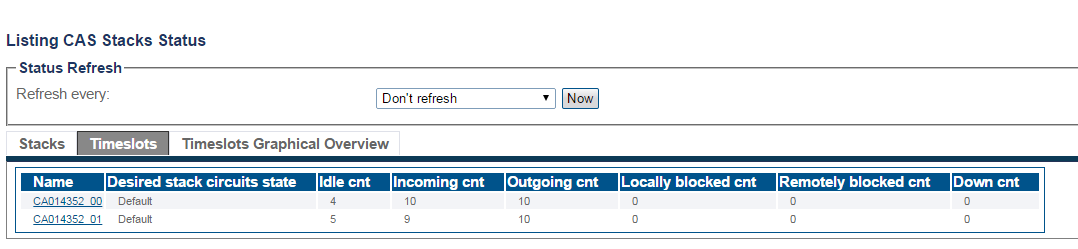

4- To view the status of the CAS timeslots, click Timeslots.

StatusCAS 4

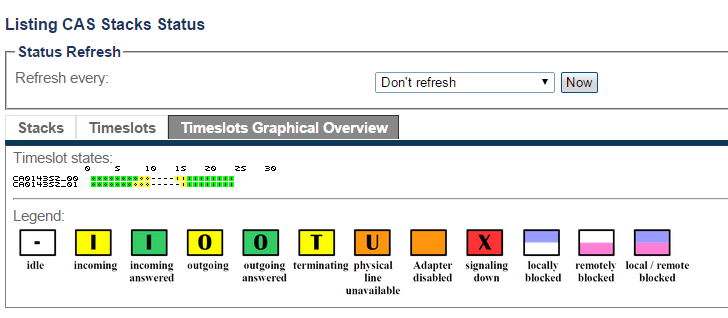

5- To view a graphical overview of the CAS timeslots, click Timeslots Graphical Overview

• The status of calls for each circuit of the CAS stack are shown using a graphical notation.

StatusCAS 5

Northbound Interface

Path

/configurations/@[configuration_name]/hardware_units/@[hardware_name]/cas_stacks/@[casStack_name]/status
