IP Interfaces Status

***Applies to version(s): v2.10***

There are multiple ways to verify the status of the IP interfaces. This article illustrates how to verify status using the Status menu and the Navigation panel.

Status menu

1- Click Status in the navigation panel.

Status 0

2- Click the Hardware Units tab.

TabHardware 0

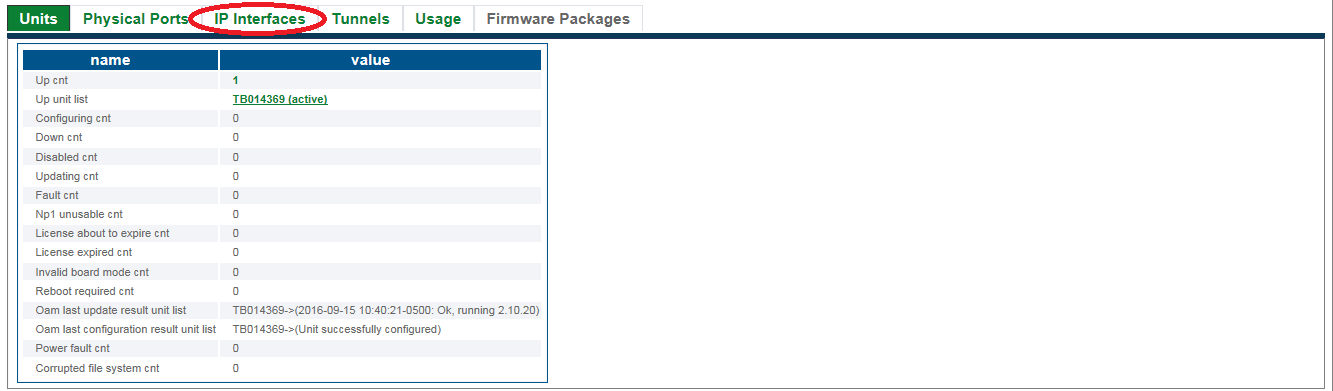

3- Click the IP Interfaces tab.

StatusIpInterfaces 0 A

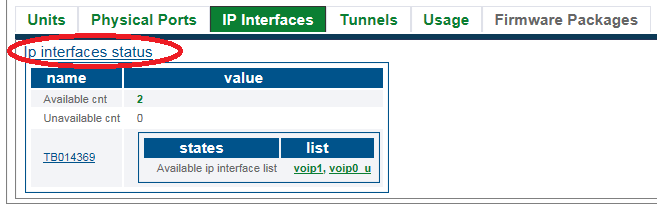

4- Click the IP Interfaces status link.

StatusIpInterfaces 1 A

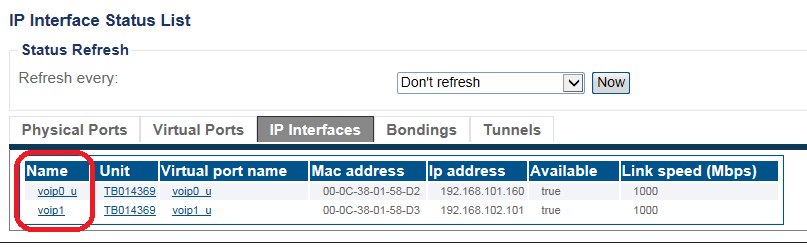

5- A listing of the IP Interfaces is displayed.

• Select any link for further information.

StatusIpInterfaces 2 A

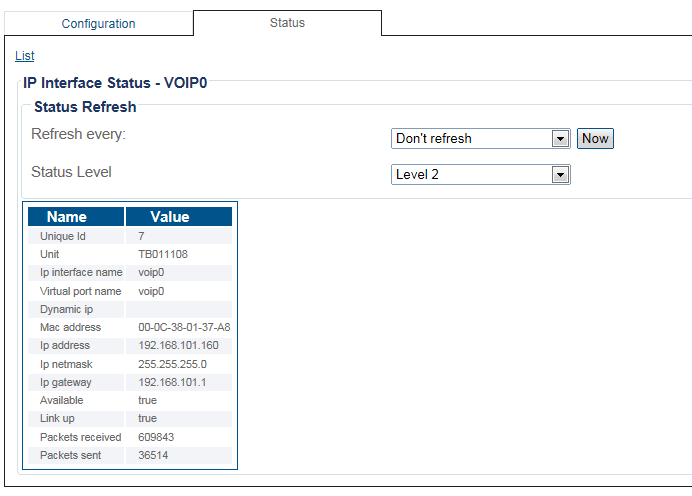

Detailed information is displayed.

StatusIpInterfaces 5

Navigation Panel

1- Click IP Interfaces from the navigation panel.

StatusIpInterfaces 3

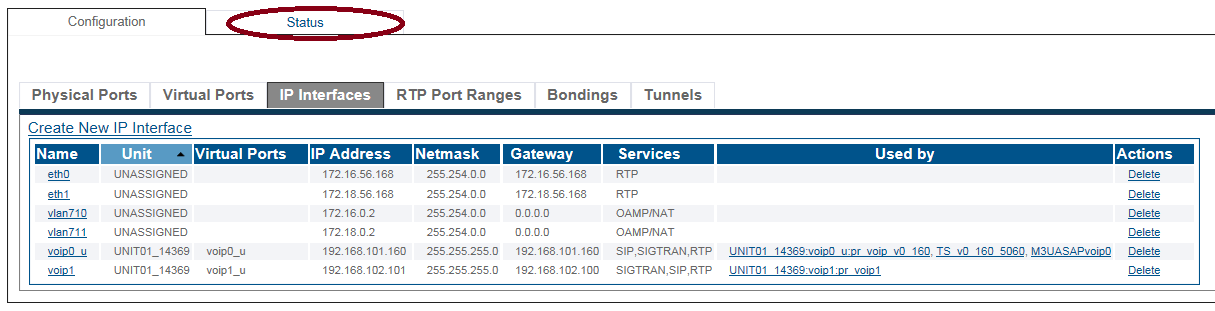

2- Click the Status tab.

StatusIpInterfaces 4 A

3- A listing of the IP Interfaces is displayed.

• Select any link for further information.

StatusIpInterfaces 2 A

Detailed information is displayed.

StatusIpInterfaces 5 A

Northbound Interface

Path

/configurations/@[configuration_name]/hardware_units/@[hardware_name]/ip_interfaces/@[port_name]/status
