Verify Licenses

Applies to version(s): v2.5, v2.6, v2.7.

TelcoBridges uses a license-based approach to activate various software or hardware functions in Toolpack or the underlying hardware. When installing Toolpack, implementing new software capabilities, or following the addition of a hardware module. After you have installed the license, you need to verify the license installation result.

Verifying licenses via the Web portal

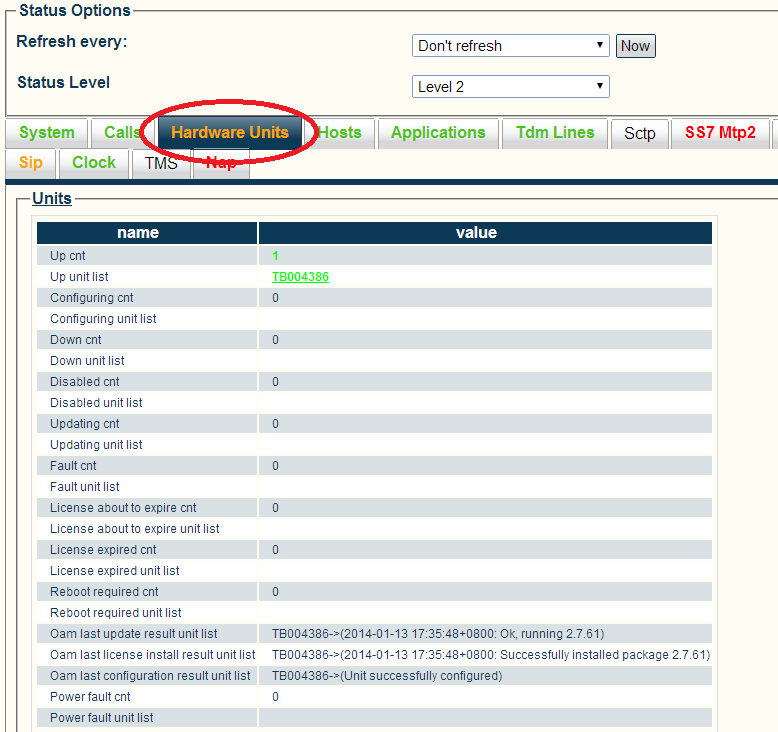

1. Got to the Hardware Unit's Status page

2. Select the hardware serial number

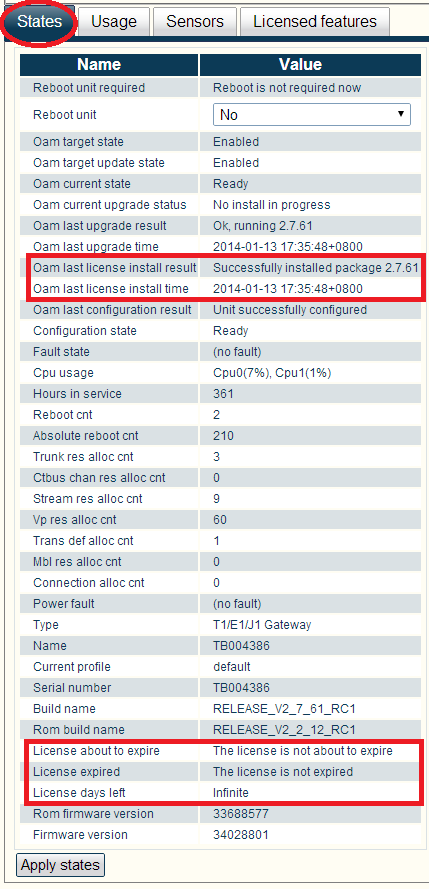

3. In the "States" tab, look for the below fields:

4. Oam last license install result

5. Oam last license install time

6. License about to expire

7. License expired

8. License days left

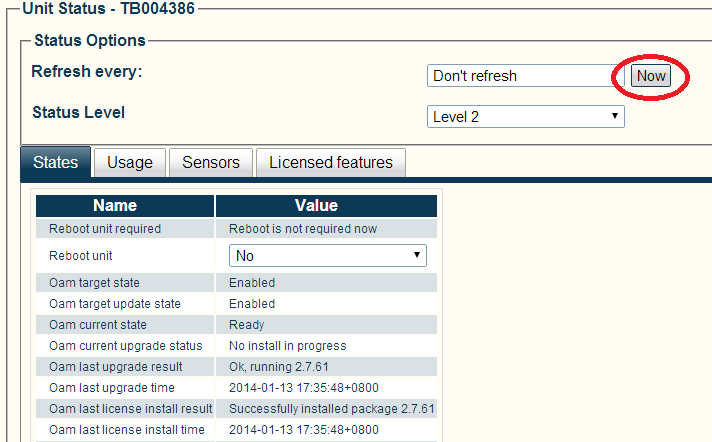

9. Try to reload the page in case if the license installation is still in progress. Monitor the process by pressing the now button from time to time.

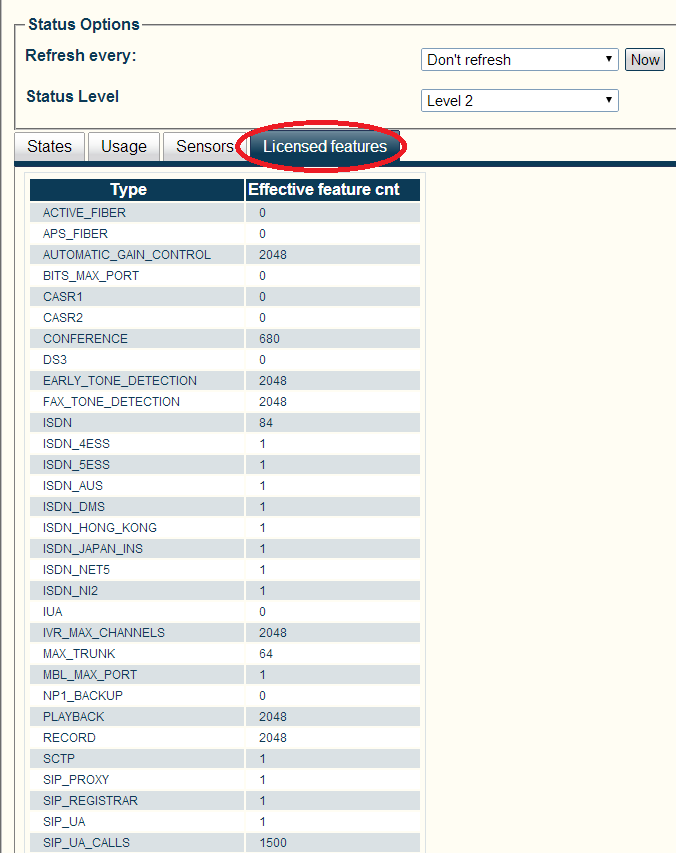

10. Check the license details in the "Licensed features" tab
