Software License Status

***Applies to version(s): v2.10***

This article describes how to verify the status of installed software licenses and how to know how many days remain on these licenses.

View the status of the installed software licenses

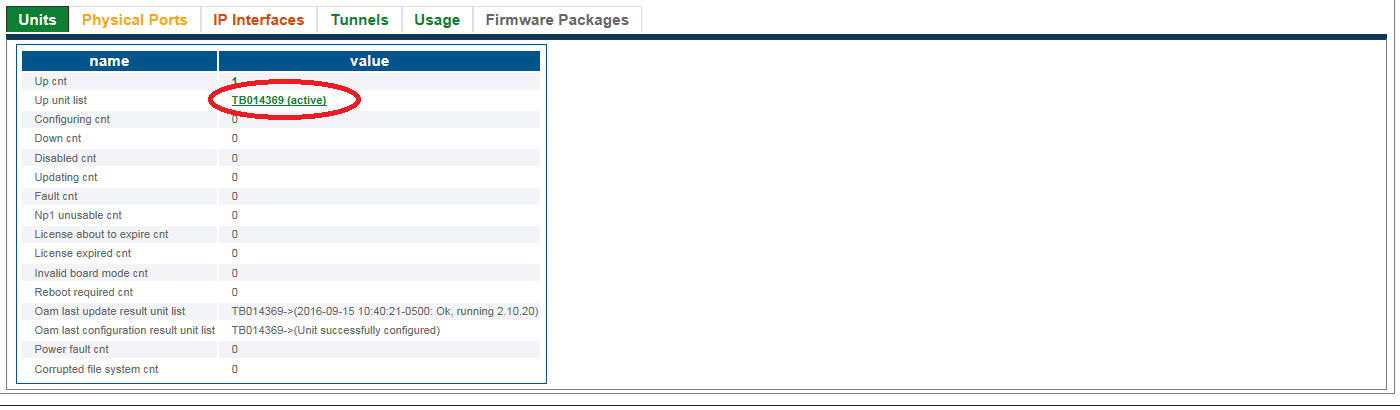

1- Click Status in the navigation panel.

Status 0

2- Click the Hardware Units tab.

TabHardwareUnits 0

3- Select a hardware unit.

StatusSoftwareLicense 0 A

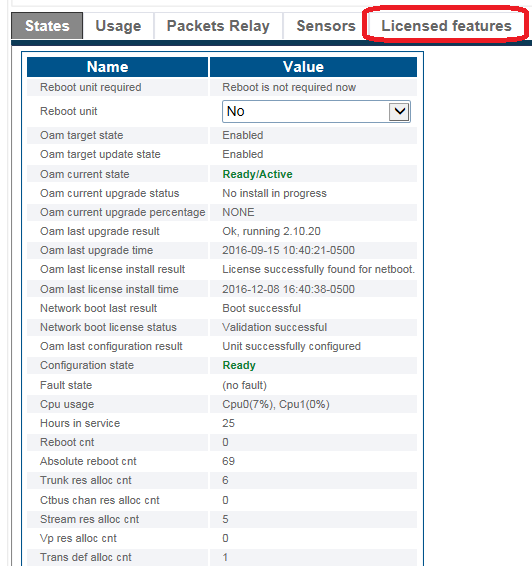

4- Click the Licensed features tab.

StatusSoftwareLicense 1 A

A listing of the installed licensed features is displayed.

StatusSoftwareLicense 2 A

View the number of days remaining on software licenses

1- Click the States tab.

The important fields to verify are:

• License about to expire

• License expired

• License days left

• Backup license days left

StatusSoftwareLicense 3 A

Northbound Interface

Path

/configurations/@[configuration_name]/hardware_units/@[hardware_name]/status
