# FreeSBC/ProSBC:Cloud:Launching an Instance of VMware vSphere

**Launching an instance of the VMware vSphere client**

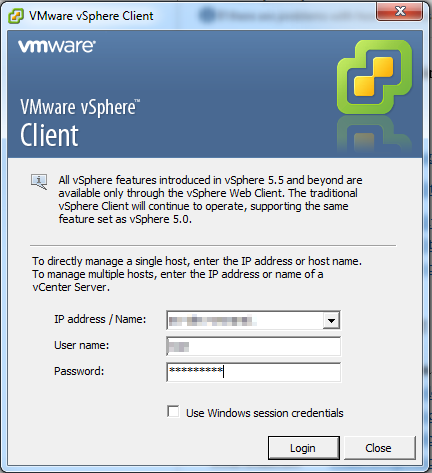

1- Log in using the Vmware infrastructure client interface. ![login client](https://docs.telcobridges.com/w/images/e/e4/Login_client.png)

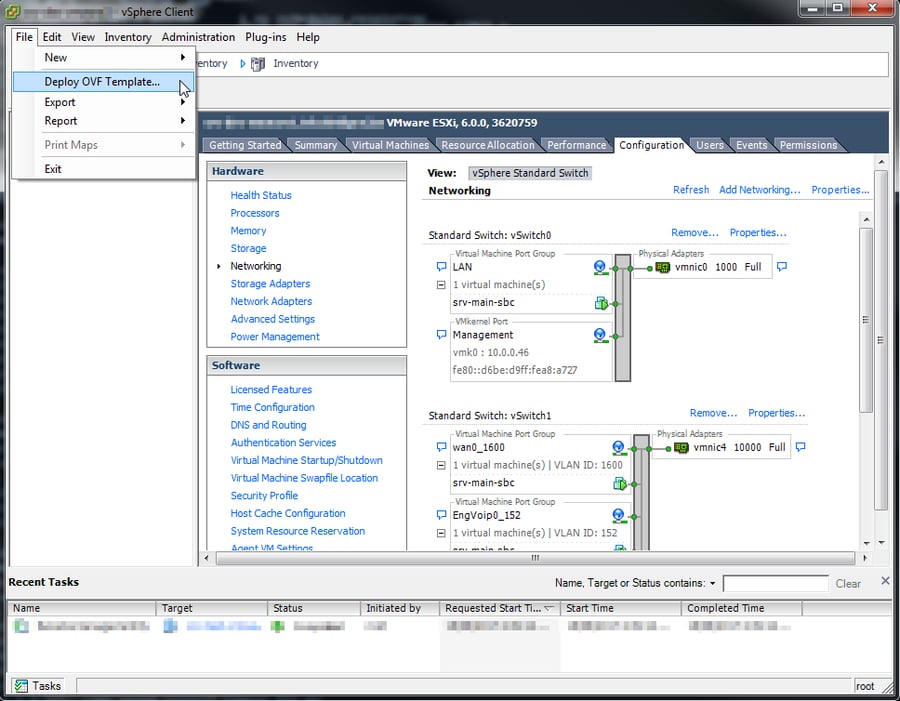

2- Select File->Deploy OVF Template. ![vmware upload](https://docs.telcobridges.com/w/images/7/76/Vmware_upload.png)

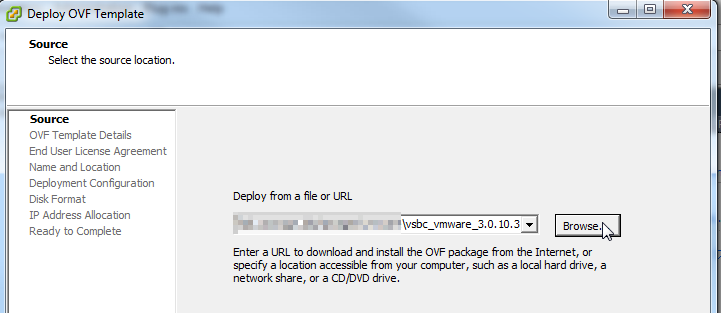

3- Browse to the location of the FreeSBC/ProSBC image that you obtained from TelcoBridges. ![vmware ovf location](https://docs.telcobridges.com/w/images/7/72/Vmware_ovf_location.png)

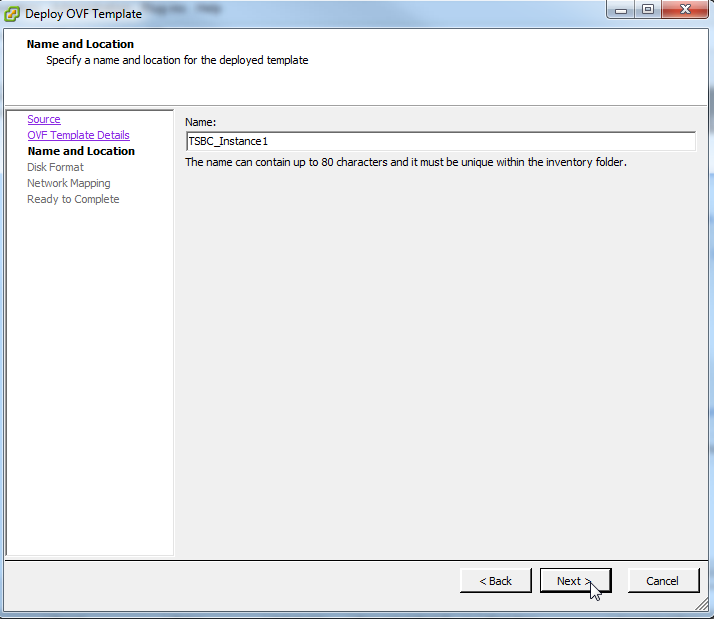

4- Click 'Next' until you need to name the new virtual machine instance.

* Enter the name and click 'Next' ![vmware name](https://docs.telcobridges.com/w/images/0/0e/Vmware_name.png)

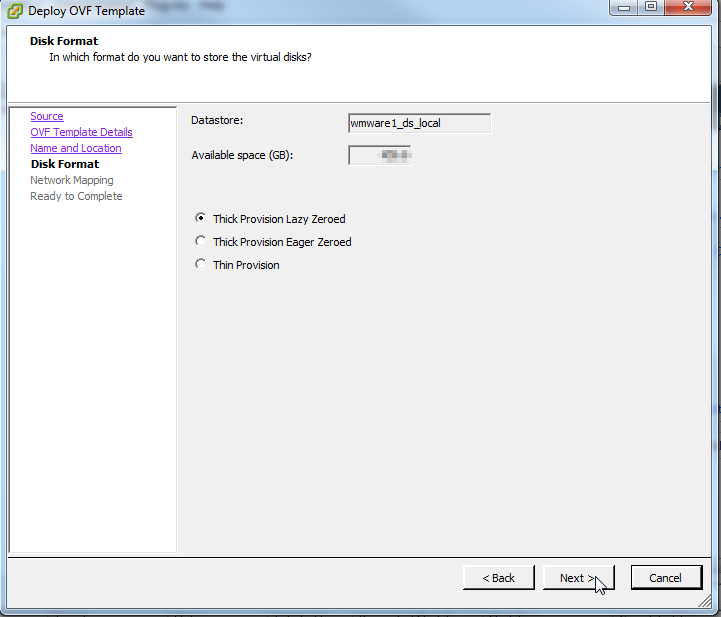

5- Select a datastore (if more than one are available).

* Select "Thick Provision Lazy Zeroed" as the disk format and click 'Next' . ![vmware disk](https://docs.telcobridges.com/w/images/c/c9/Vmware_disk.png)

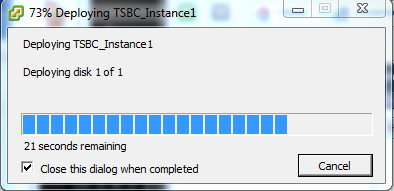

6- Accept all other default settings and wait until the machine is deployed. ![vmware installing](https://docs.telcobridges.com/w/images/f/f1/Vmware_installing.png)

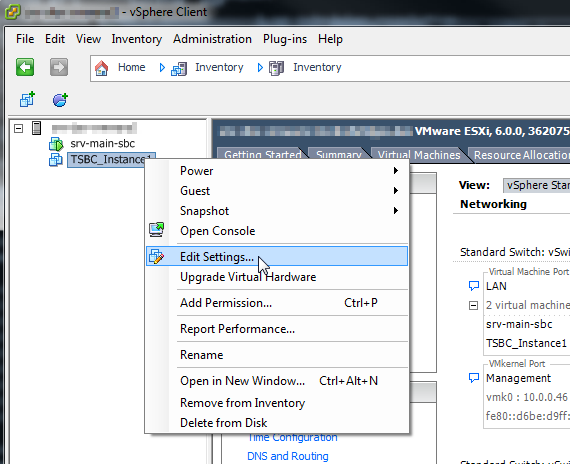

7- Once the machine is deployed, right-click on the new instance and select "Edit Settings..." ![vmware settings](https://docs.telcobridges.com/w/images/0/01/Vmware_settings.png)

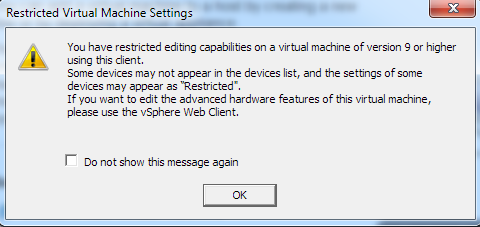

8- Press 'OK'. ![Vmware restricted](https://docs.telcobridges.com/w/images/d/db/Vmware_restricted.png)

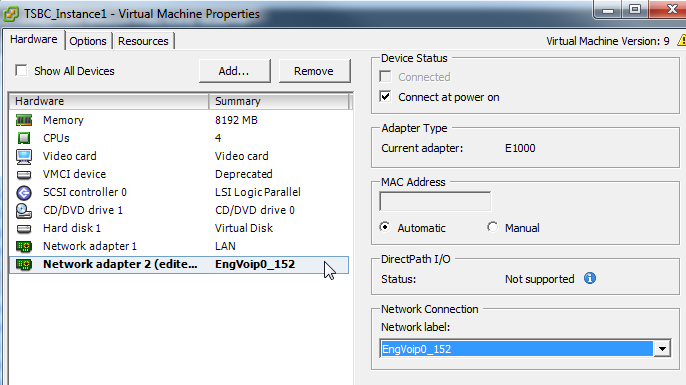

9- Edit network adapters to connect to the proper networks. Make sure that at least one of the adapters connects to the private management network of the setup from which WebPortal access will be granted.

Do **not** click 'OK' yet! ![vmware network](https://docs.telcobridges.com/w/images/7/7d/Vmware_network.png)

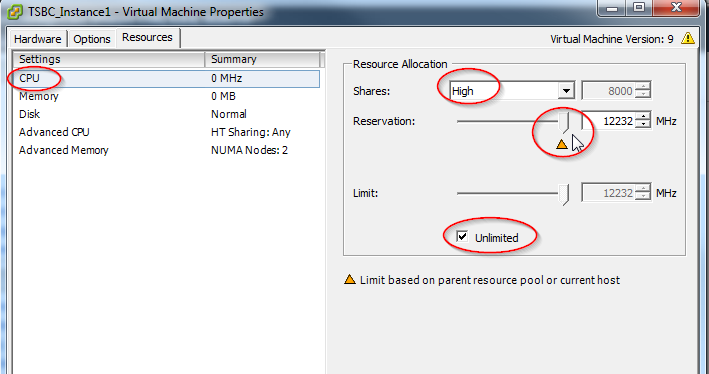

10- Click the 'Resources' tab and select CPU.

* Set 'Shares' to 'high'.
* Slide the 'Reservation' cursor to the maximum (move to the right).
* Make sure the 'Unlimited' option is checked-marked.

Do **not** click 'OK yet! ![vmware cpu](https://docs.telcobridges.com/w/images/8/83/Vmware_cpu.png)

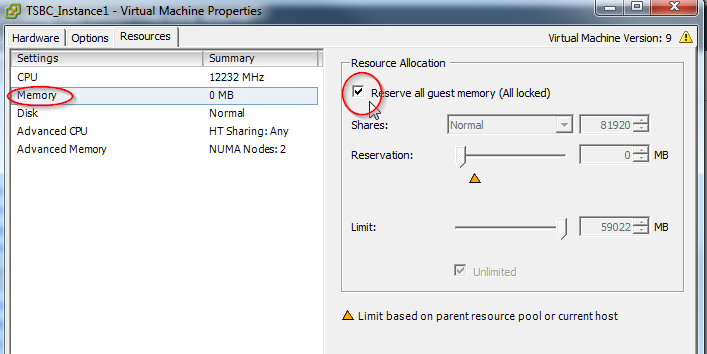

11- Select 'Memory' and select the 'Reserve all guest memory (All locked)' option.

Do **not** click 'OK' yet! ![vmware mem](https://docs.telcobridges.com/w/images/4/44/Vmware_mem.png)

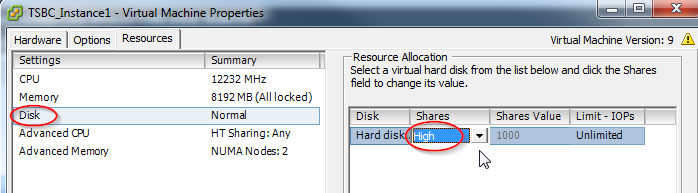

12- Select 'Disk' and set the 'Shares' to 'High'.

Do **not** click 'OK' yet! ![vmware disk res](https://docs.telcobridges.com/w/images/d/d3/Vmware_disk_res.png)

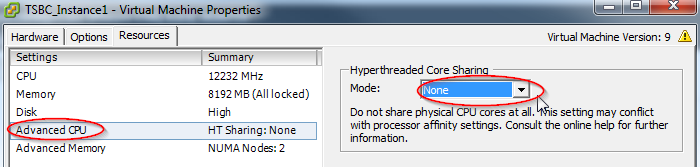

13- Select 'Advanced CPU' and set the 'Mode' to 'None'.

Do **not** click 'OK' yet! ![vmware adv cpu](https://docs.telcobridges.com/w/images/2/24/Vmware_adv_cpu.png)

14- Set the 'Latency Sensitivity' to 'High'.

15- Click 'OK'.

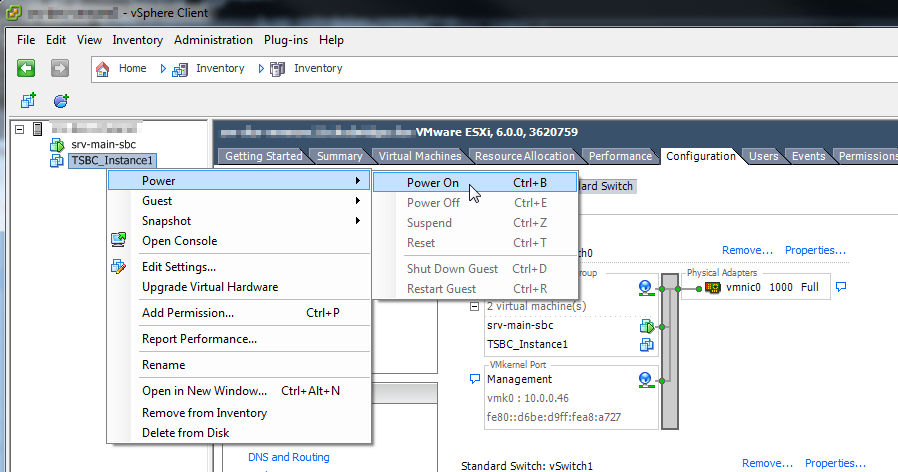

16- Return to the main screen, and select the newly instantiated virtual machine.

* Right-click and select "Power-->Power On" to start it. ![vmware poweron](https://docs.telcobridges.com/w/images/c/ca/Vmware_poweron.png)

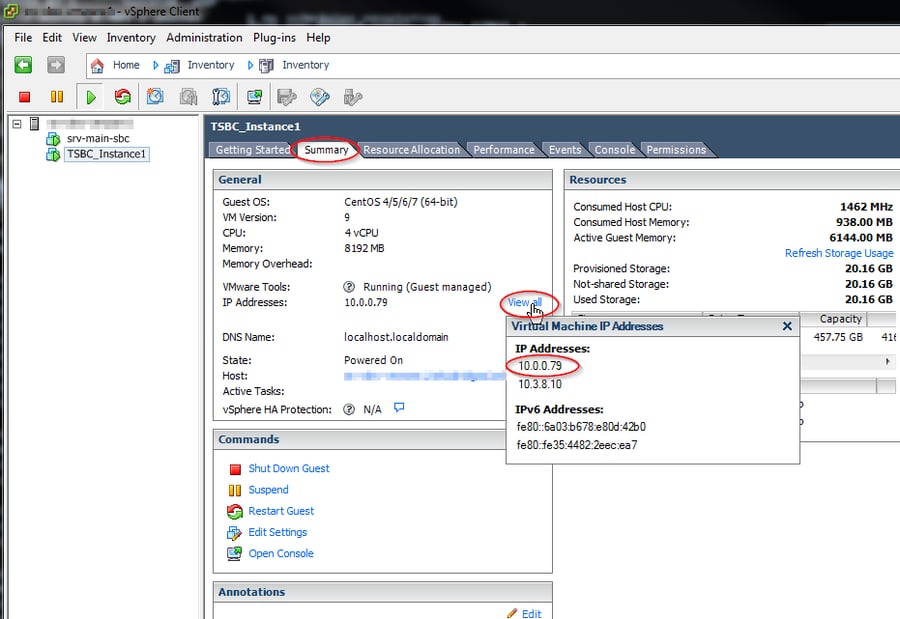

17- Return once again to the main screen, and select the newly instantiated virtual machine and click the 'Summary' tab. Once the virtual machine has started up, the assigned DHCP IP address will be displayed by clicking on the 'View all' button.

Note: This IP address is used to access the Web Portal configuration interface later on. ![vmware ip](https://docs.telcobridges.com/w/images/b/b3/Vmware_ip.png)


---
