# Creating a DNS Local Entry

> **Applies to:** SBC 3.1, 3.3

\*\*Note: \*\* This article describes the creation of optional DNS local entries.

You can create one or more DNS Local Entries. This is useful when you want to bypass the DNS server. This is usually done for troubleshooting.

1- Click **DNS** in the navigation panel

![dns group 0](https://docs.telcobridges.com/w/images/7/7f/Dns_group_0.png)

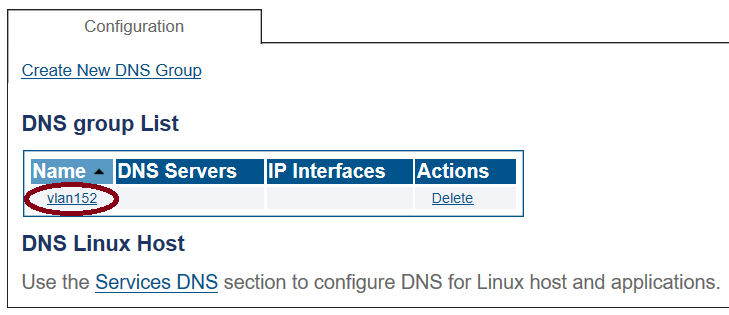

2- Select a DNS group, from the **DNS group list**

![dns entry 0](https://docs.telcobridges.com/w/images/5/58/Dns_entry_0.png)

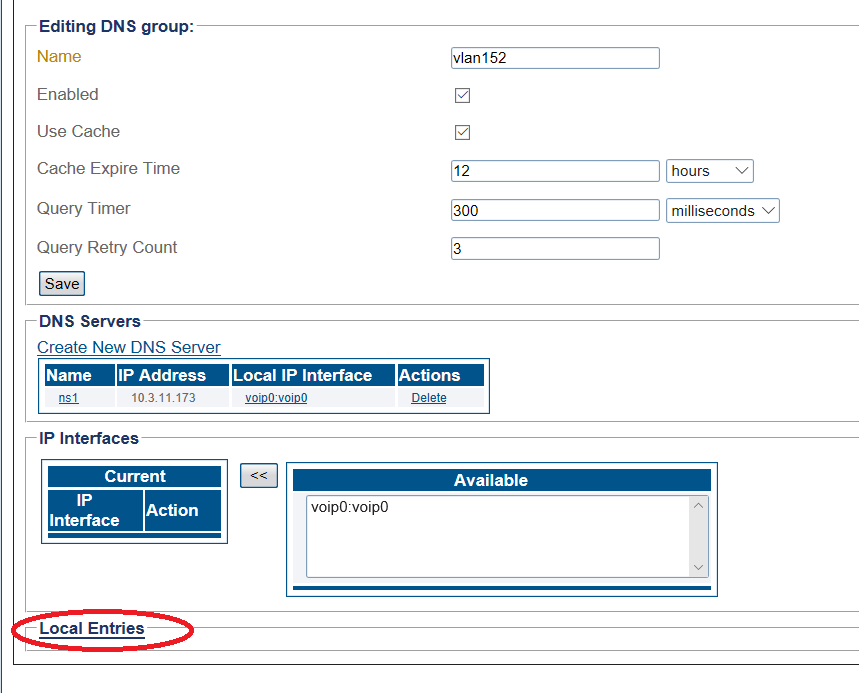

3- Create a new DNS local entry for the DNS server.

* Click **Local Entries**.

![dns entry 1](https://docs.telcobridges.com/w/images/2/25/Dns_entry_1.png)

4- Click **Create New DNS local entry**.

![dns entry 2](https://docs.telcobridges.com/w/images/4/43/Dns_entry_2.png)

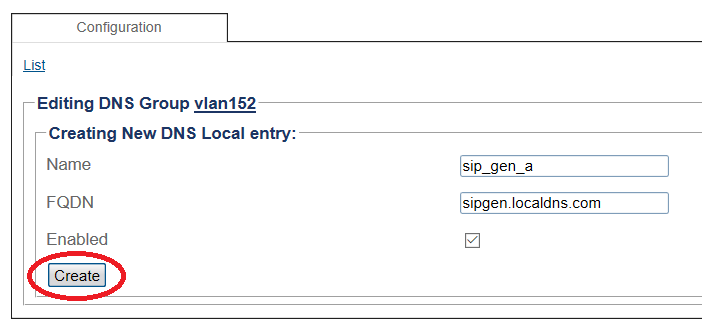

5- Configure the DNS local entry.

* Enter a name for the DNS local entry
* Enter an FQDN.
* Click **Create**.

![dns entry 3](https://docs.telcobridges.com/w/images/8/86/Dns_entry_3.png)

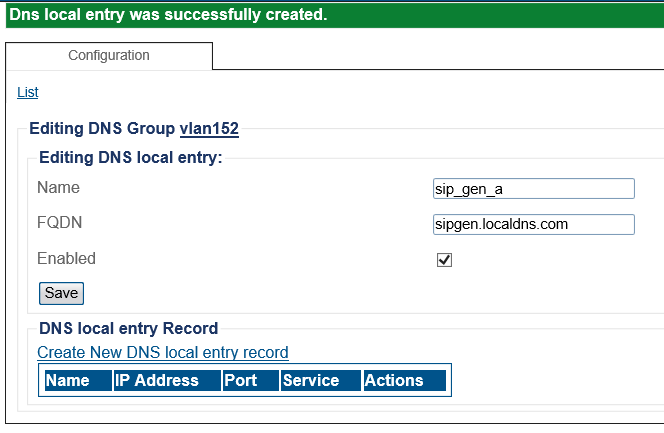

6- Verify that the **DNS local entry was successfully created** message is displayed.

![dns entry 4](https://docs.telcobridges.com/w/images/8/80/Dns_entry_4.png)

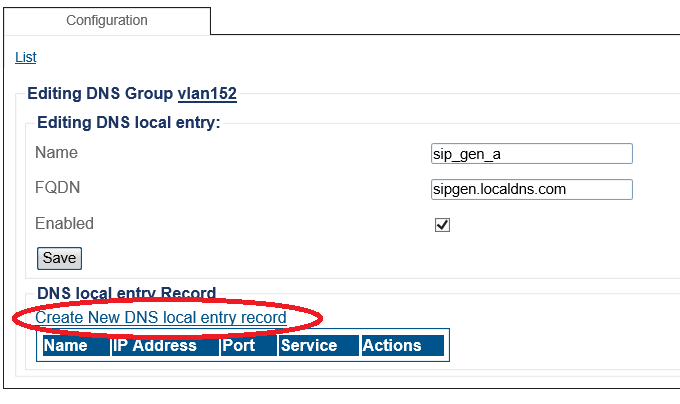

7- Once the DNS Local entry is created you add one or more DNS local entry records to it.

* Click **Create New DNS local entry record**.

![dns entry 5](https://docs.telcobridges.com/w/images/0/09/Dns_entry_5.png)

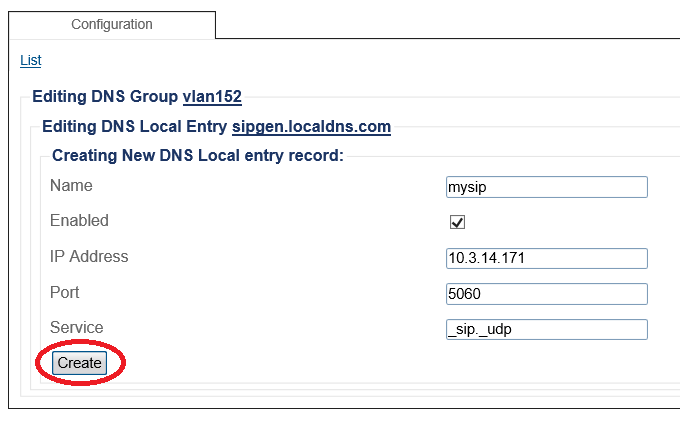

8- Configure the DNS local entry record.

* Enter a name for the DNS local entry record.
* Enter an IP address.
* Enter a port number.
* Enter a service name.
* Click **Create**.

![dns entry 6](https://docs.telcobridges.com/w/images/9/9a/Dns_entry_6.png)

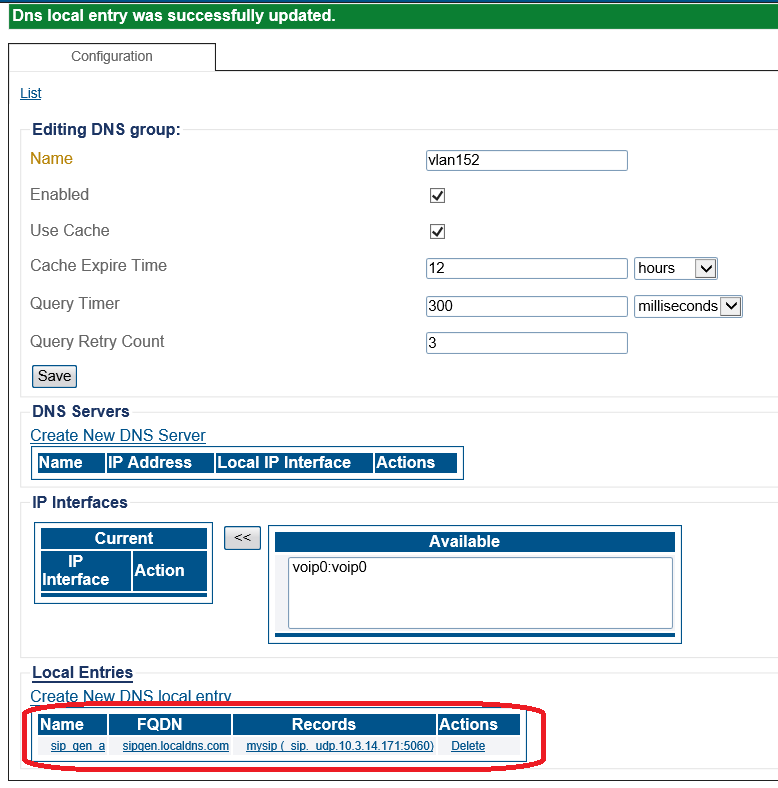

The DNS local entry with its accompanying records are displayed in the DNS Local Entries list.

![dns entry 9](https://docs.telcobridges.com/w/images/c/ce/Dns_entry_9.png)

### List of Parameters

**DNS Local Entries**

* [Name](https://github.com/telcobridges-main/tmedia-wiki/tree/main/reference/parameters/name/README.md)
* [FQDN](https://github.com/telcobridges-main/tmedia-wiki/tree/main/reference/parameters/fqdn/README.md)
* [Enabled](https://github.com/telcobridges-main/tmedia-wiki/tree/main/reference/parameters/enables/README.md)

**DNS Local Entry Records**

* [IP Address](https://github.com/telcobridges-main/tmedia-wiki/tree/main/reference/parameters/ip-address/README.md)
* [Port](https://github.com/telcobridges-main/tmedia-wiki/tree/main/reference/parameters/port/README.md)
* [Service](https://github.com/telcobridges-main/tmedia-wiki/tree/main/reference/parameters/service/README.md)


---
