Creating a DNS Group

Applies to: SBC 3.1, 3.3

**Note: ** This article describes how to configure a DNS Group, which is not the same as creating a DNS server group for the Linux host.

You can create one or more DNS Groups to manage the DNS Server traffic of Fully Qualified Domain Names (FQDN).

1- Click DNS in the navigation panel

dns group 0

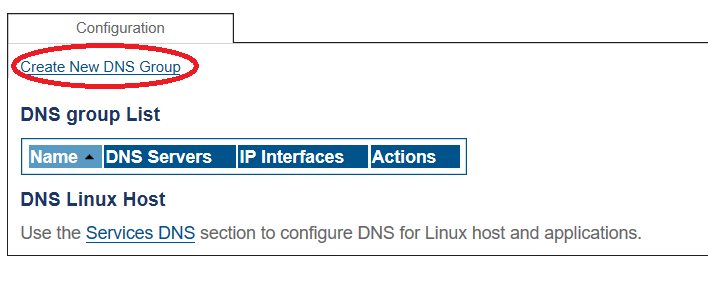

2- Click Create New DNS Group

dns group 1

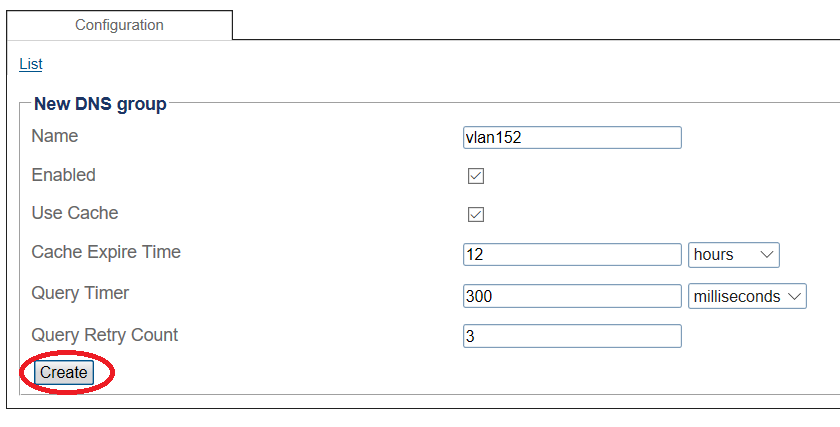

3- Enter a name for the DNS Group.

• Click Create

dns group 2

4- Verify that the "DNS group was successfully created" message appears

dns group 3

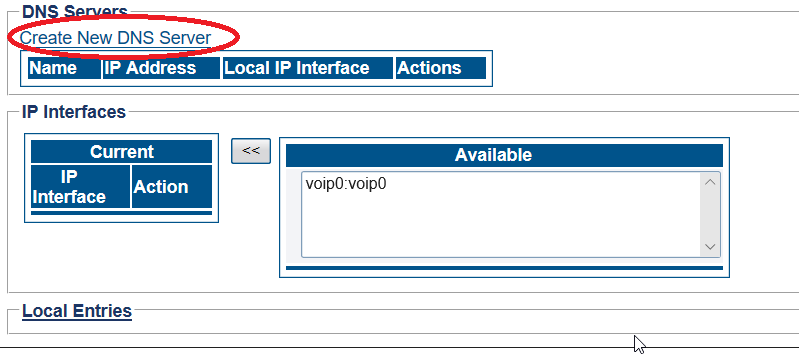

5- Create a DNS Server for the DNS Group.

• Click Create New DNS Server.

dns group 4

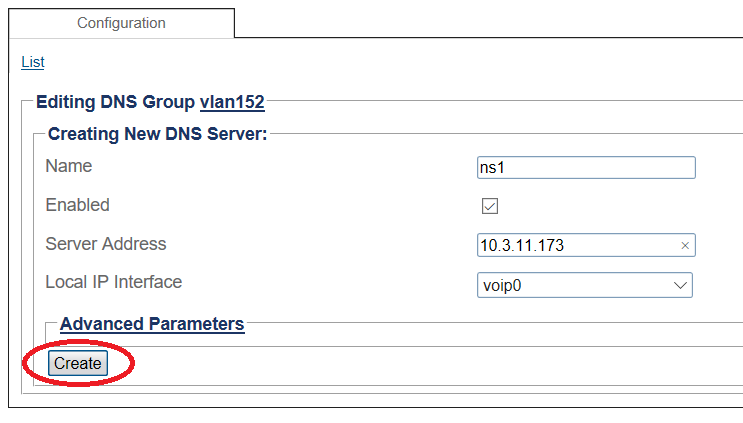

6- Configure the DNS Server.

• Enter a name for the DNS server.

• Enter an IP address for the server.

• Select a Local IP interface. This is the interface through which the DNS requests will be transmitted.

• Click Create.

dns group 5

7- Verify that the "DNS server was successfully created" message appears

dns group 6

8- Select an IP interface from the list of available interfaces. The interfaces that are added will have their FQDN requests resolved by this DNS group.

• Click to move the available interface over to the Current list.

dns group 7

• Click Create.

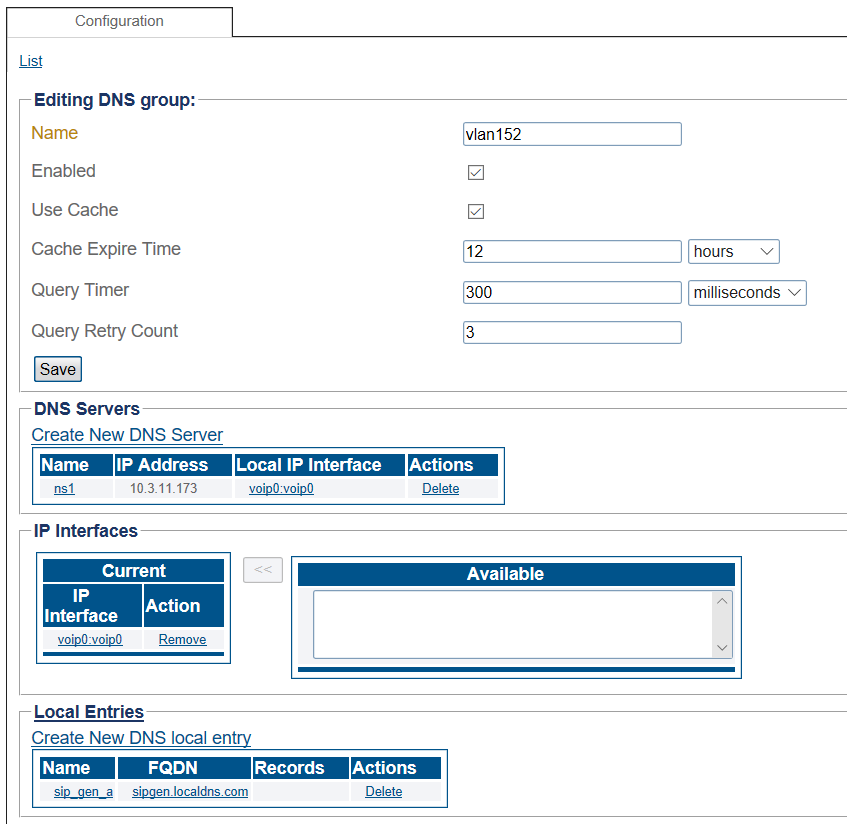

The DNS Group with the new DNS Server and DNS Local entries are displayed.

dns group d

List of Parameters

• Name

• Enabled

• Use Cache

• Cache Expire Time

• Query Timer

• Query Retry Count
