Modifying ISUP Userpart for SPIROU

Applies to: Tmedia 3.0, 3.2, 3.3

This article assumes that SS7 ISUP is configured.

1- Select ISUP from the navigation panel

ModifyIsupForSpirou 0

2- Select the ISUP stack you wishto configure.

ModifyIsupForSpirou 1

3- In the Editing Userparts section, select the ISUP userpart you to configure.

ModifyIsupUserPartForSpirou 0

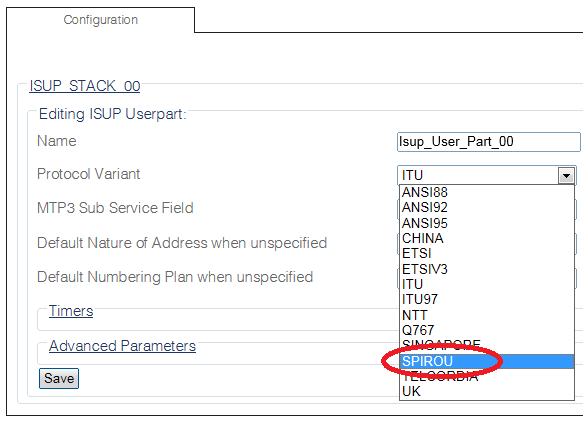

4- Select SPIROU in the Protocol Variant drop-down menu.

ModifyIsupUserPartForSpirou 1

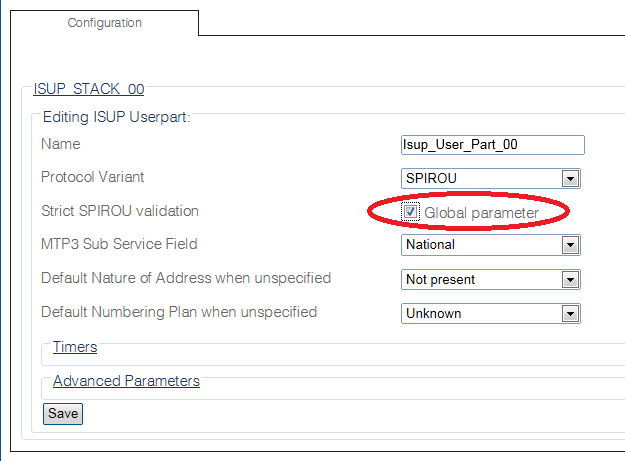

5- A new checkbox Strict SPIROU validation appears once SPIROU Protocol Variant is selected.

• Select this checkbox to make sure your configuraton is compliant with SPIROU.

ModifyIsupUserPartForSpirou 2

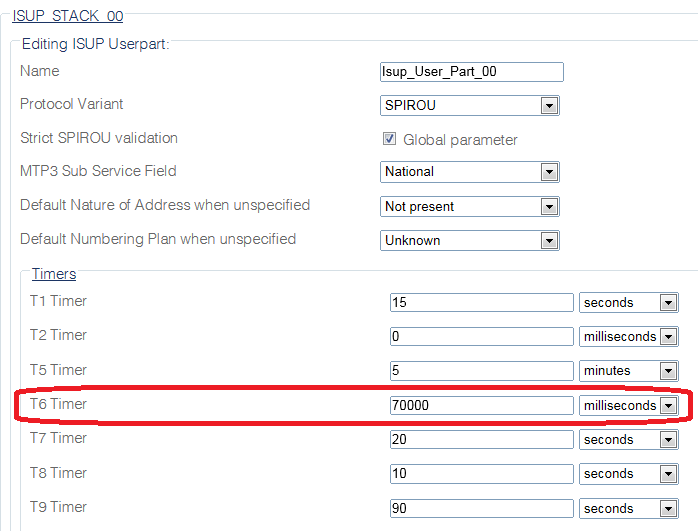

6- Click Timers to expand the Timers section

• Set T6 Timer to a value between 60000 and 120000 ms (between 60 and 120 seconds)

ModifyIsupUserPartForSpirou 3

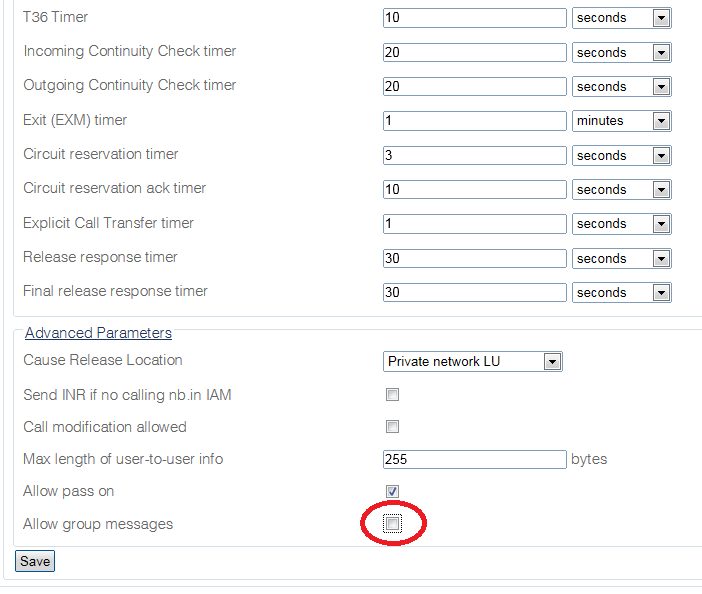

7- Click Advanced Parameters to expand the Advanced Parameters section

• Uncheck the Allow group messages option

• Click Save

ModifyIsupUserPartForSpirou 4

8- Verify that the "IsupUserpart was successfully updated" message is displayed

ModifyIsupUserPartForSpirou 5

List of Parameters

• Name

• Protocol Variant

• MTP3 Sub Service field

• Default Nature of Address When Unspecified

• Default Numbering Plan When Unspecified
