Creating MTP3 Links (M2UA)

Applies to version(s): v2.5, v2.6.

Now that you have created an MTP3 linkset, you must create MTP3 links for your system. An MTP3 link is used to connect with a M2UA link; they are connected in a one-to-one fashion.

To create an MTP3 link on your M2UA system:

1- Click Create New Mtp3 Link in the MTP3 linkset configuration window

Toolpack v2.5 Create MTP3 Link

2- Configure the new MTP3 link:

• Enter a name for the link

• Under Type of link to bind, select M2UA

• Select an M2UA link

• Click Create

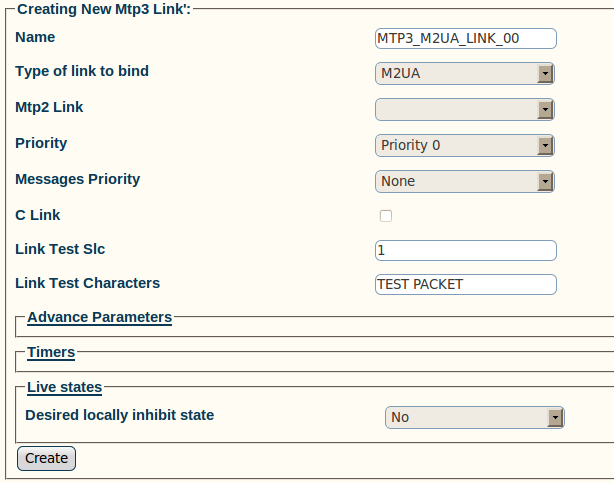

Toolpack v2.5 Creating MTP3 Link M2UA

3- Verify that the "Mtp3Link was successfully created" message appears

Toolpack v2.5 MTP3 Link Created

List of Parameters

• Name

• Type of Link to Bind

• M2UA Link
