Creating MTP3 Links (M2PA)
Applies to version(s): v2.5, v2.6.
Now that you have created an MTP3 linkset, you must create MTP3 links for it. This can be done from the MTP3 linkset configuration window. A linkset is used to logically combine multiple MTP3 links going to the same DPC into a single entity. One linkset could be comprised of the links between a point code identifying the Tmedia/Tdev SS7 node and a point code identifying the adjacent SS7 equipment.
To create an MTP3 link:
1- Click Create New Mtp3 Link in the MTP3 linkset configuration window

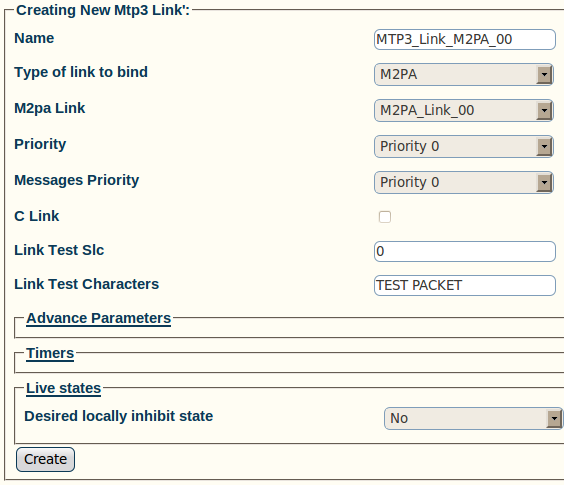

2- Configure the new MTP3 link:
Enter a name for the link
Under Type of link to bind, select M2PA.
Select an MTP2 link
Select a priority level (from 0 to 3)
Select a message priority (from "none" to 3)
Set the C Link value
Enter a Link Test Slc (this value is unique in the link list)
Enter Link Test Characters
Click Create
3- Verify that the "Mtp3Link was successfully created" message appears
List of Parameters
