Creating MTP3 Links

Applies to: Tmedia 3.0, 3.2, 3.3

Once you have created an MTP3 linkset, you must associate MTP3 links with it. This is because the MTP3 links are used to bind with either an MTP2, M2PA, or M2UA link; they are connected in a one-to-one fashion.

To create an MTP3 link:

1- Click MTP3 in the navigation panel.

2- Select an MTP3 network.

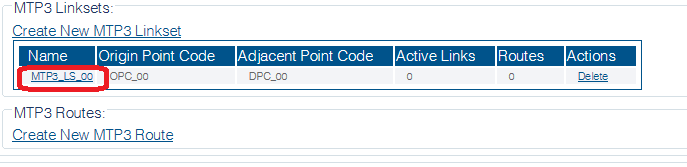

3- Select an MTP3 linkset

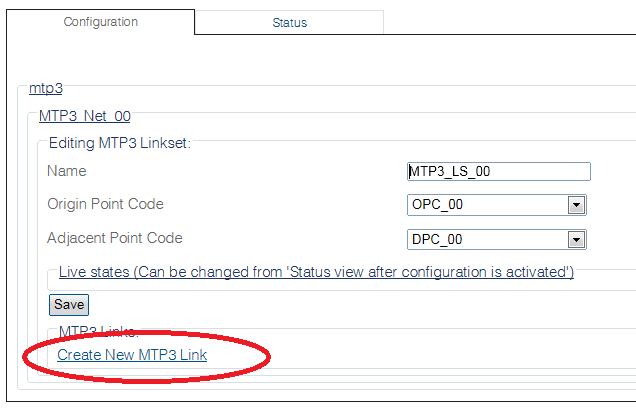

4- Click Create New Mtp3 Link in the MTP3 linkset configuration window

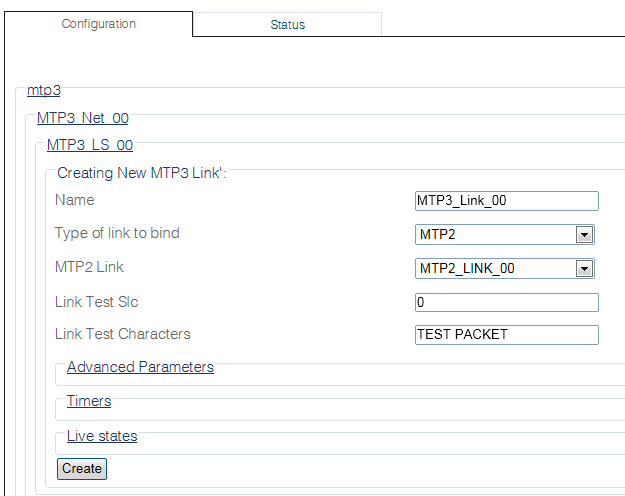

5- Configure the new MTP3 link:

Enter a name for the link
Under Type of link to bind, select MTP2
Select an MTP2 link
Click Create

6- Verify that the "Mtp3Link was successfully created" message appears and that the link appears in the Mtp3 Link list.

Path

/configurations/@[configuration_name]/mtp3_stacks/@[mtp3_name]/mtp3_networks/@[mtp3_network]/mtp3_linksets/@[mtp3_linkset]/mtp3_links/@[mtp3_link]

Parameters (text)

/configurations/@[configuration_name]/mtp3_stacks/@[mtp3_name]/mtp3_networks/@[mtp3_network]/mtp3_linksets/@[mtp3_linkset]/mtp3_links/@[mtp3_link]

bound_link_type     = "MTP2"
bound_m2pa_link     = ""
bound_m2ua_link     = ""
bound_mtp2_link     = "@[mtp2_link]"
name                = "@[mtp3_link]"
test_characters     = "TEST PACKET"
test_slc            = 0

/configurations/@[configuration_name]/mtp3_stacks/@[mtp3_name]/mtp3_networks/@[mtp3_network]/mtp3_linksets/@[mtp3_linkset]/mtp3_links/@[mtp3_link]/advanced_parameters
discard_priority     = "Priority 0"
flush_continue_flags = false
is_c_link            = false
max_frame_length     = 272
messages_priority    = "None"
msg_q_len_prio0      = 20
msg_q_len_prio1      = 30
msg_q_len_prio2      = 50
msg_q_len_prio3      = 80
priority             = "Priority 0"

/configurations/@[configuration_name]/mtp3_stacks/@[mtp3_name]/mtp3_networks/@[mtp3_network]/mtp3_linksets/@[mtp3_linkset]/mtp3_links/@[mtp3_link]/state
locally_inhibited = false

/configurations/@[configuration_name]/mtp3_stacks/@[mtp3_name]/mtp3_networks/@[mtp3_network]/mtp3_linksets/@[mtp3_linkset]/mtp3_links/@[mtp3_link]/timers
bind_confirmation_timer           = "3 seconds"
bsn_requested_timer               = "2500 milliseconds"
false_congestion_detect_timer     = "10 seconds"
flow_control_request_timer        = "30 seconds"
layer_2_connect_timer             = "2 minutes"
periodic_sltm_timer               = "30 seconds"
probation_link_oscillation_timer  = "1 minute"
referral_craft_timer              = "8 minutes"
slta_timer                        = "4 seconds"
sltm_retry_max                    = 4
suspension_link_oscillation_timer = "5 seconds"
t1_timer                          = "800 milliseconds"
t2_timer                          = "1400 milliseconds"
t3_timer                          = "800 milliseconds"
t4_timer                          = "800 milliseconds"
t5_timer                          = "800 milliseconds"
t7_timer                          = "1500 milliseconds"
t12_timer                         = "1150 milliseconds"
t13_timer                         = "1150 milliseconds"
t14_timer                         = "2500 milliseconds"
t17_timer                         = "1150 milliseconds"
t22_timer                         = "30 seconds"
t23_timer                         = "30 seconds"

Parameters (json)

{
  "advanced_parameters" : {
    "discard_priority" : "Priority 0",
    "flush_continue_flags" : false,
    "is_c_link" : false,
    "max_frame_length" : 272,
    "messages_priority" : "None",
    "msg_q_len_prio0" : 20,
    "msg_q_len_prio1" : 30,
    "msg_q_len_prio2" : 50,
    "msg_q_len_prio3" : 80,
    "priority" : "Priority 0"
  },
  "bound_link_type" : "MTP2",
  "bound_m2pa_link" : "",
  "bound_m2ua_link" : "",
  "bound_mtp2_link" : "@[mtp2_link]",
  "name" : "@[mtp3_link]",
  "state" : {
    "locally_inhibited" : false
  },
  "test_characters" : "TEST PACKET",
  "test_slc" : 0,
  "timers" : {
    "bind_confirmation_timer" : "3 seconds",
    "bsn_requested_timer" : "2500 milliseconds",
    "false_congestion_detect_timer" : "10 seconds",
    "flow_control_request_timer" : "30 seconds",
    "layer_2_connect_timer" : "2 minutes",
    "periodic_sltm_timer" : "30 seconds",
    "probation_link_oscillation_timer" : "1 minute",
    "referral_craft_timer" : "8 minutes",
    "slta_timer" : "4 seconds",
    "sltm_retry_max" : 4,
    "suspension_link_oscillation_timer" : "5 seconds",
    "t1_timer" : "800 milliseconds",
    "t2_timer" : "1400 milliseconds",
    "t3_timer" : "800 milliseconds",
    "t4_timer" : "800 milliseconds",
    "t5_timer" : "800 milliseconds",
    "t7_timer" : "1500 milliseconds",
    "t12_timer" : "1150 milliseconds",
    "t13_timer" : "1150 milliseconds",
    "t14_timer" : "2500 milliseconds",
    "t17_timer" : "1150 milliseconds",
    "t22_timer" : "30 seconds",
    "t23_timer" : "30 seconds"
  }
}

List of Parameters
