Creating MTP2 Links

Applies to: Tmedia 3.0, 3.2, 3.3

Once you have created an MTP2 configuration, you must create the necessary MTP2 links. An MTP2 link is used to connect the MTP2 physical layer to a line service carrying SS7 signaling.

To create an MTP2 link:

1- Click MTP2 in the navigation panel.

Mtp2 0 A

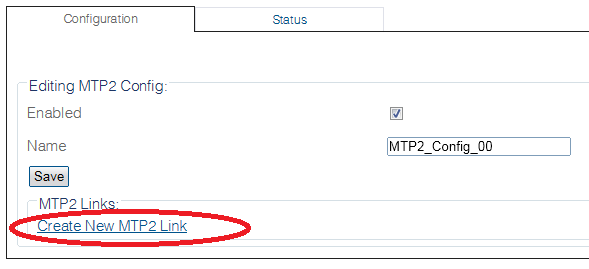

2- Click Create New MTP2 Link in the MTP2 configuration window

Create MTP2 Link 0

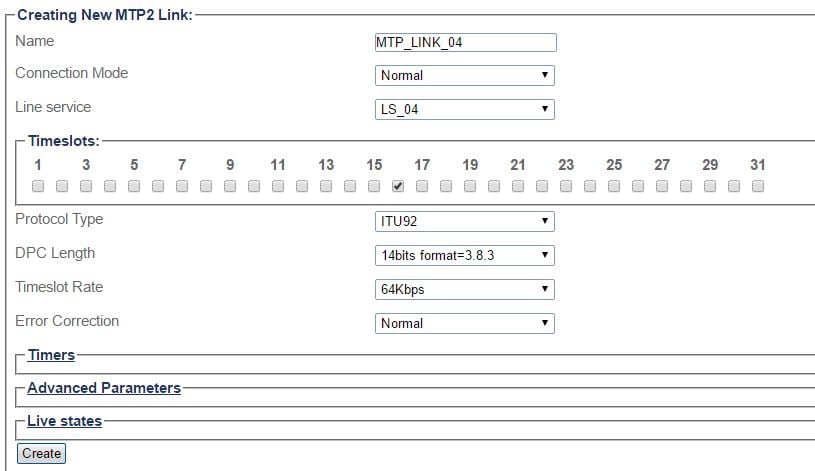

3- Configure the new MTP2 link:

• Enter a name for the new link

• Select a connection mode

• Select a line service

• Assign timeslot(s) to the link

• Select a protocol type

• Select a DPC length

• Select a timeslot rate

• Select the type of Error Correction to use.

• Click Create

Create MTP2 Link 2.8 2.9

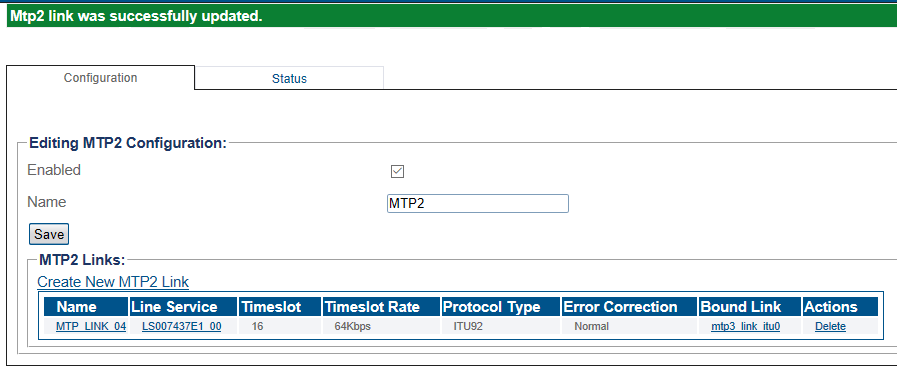

4- Verify that the "MTP2 link was successfully created" message appears

Create MTP2 Link 2

Path

/configurations/@[configuration_name]/hardware_units/@[hardware_name]/mtp2_stacks/@[mtp2_name]/mtp2_links/@[mtp2_link]

Parameters (text)

/configurations/@[configuration_name]/hardware_units/@[hardware_name]/mtp2_stacks/@[mtp2_name]/mtp2_links/@[mtp2_link]
connection_mode     = "Normal"
line_service        = "@[line_service_name]"
name                = "@[mtp2_link]"
protocol_type       = "ITU92"
ss7_dpc_length      = "14bits format=3.8.3"
timeslot_mask       = 0x1
timeslot_rate       = "64Kbps"

/configurations/@[configuration_name]/hardware_units/@[hardware_name]/mtp2_stacks/@[mtp2_name]/mtp2_links/@[mtp2_link]/advanced_parameters
alig_err_rate_emerg_thres     = 2
discard_frame_in_cong         = false
flow_ctrl_end_msu_threshold   = 32
flow_ctrl_start_msu_threshold = 64
max_alig_attempt              = 5
max_frame_length              = 273
max_outstanding_frames        = 8
prov_emerg                    = "500 milliseconds"
sig_unit_err_rate_thres       = 2

/configurations/@[configuration_name]/hardware_units/@[hardware_name]/mtp2_stacks/@[mtp2_name]/mtp2_links/@[mtp2_link]/itu_ansi_link
alig_err_rate_normal_thres = 3
error_correction           = "Normal"
lssu_lenght                = 1
prov_normal                = "8200 milliseconds"
retransmit_queue_max_bytes = 4096
retransmit_queue_max_msus  = 127

/configurations/@[configuration_name]/hardware_units/@[hardware_name]/mtp2_stacks/@[mtp2_name]/mtp2_links/@[mtp2_link]/state
datalink_state = "Enabled"

/configurations/@[configuration_name]/hardware_units/@[hardware_name]/mtp2_stacks/@[mtp2_name]/mtp2_links/@[mtp2_link]/timers
t1_timer = "40 seconds"
t2_timer = "5 seconds"
t3_timer = "1500 milliseconds"
t5_timer = "100 milliseconds"
t6_timer = "3 seconds"
t7_timer = "1 second"

Parameters (json)

{
  "advanced_parameters" : {
    "alig_err_rate_emerg_thres" : 2,
    "discard_frame_in_cong" : false,
    "flow_ctrl_end_msu_threshold" : 32,
    "flow_ctrl_start_msu_threshold" : 64,
    "max_alig_attempt" : 5,
    "max_frame_length" : 273,
    "max_outstanding_frames" : 8,
    "prov_emerg" : "500 milliseconds",
    "sig_unit_err_rate_thres" : 2
  },
  "connection_mode" : "Normal",
  "itu_ansi_link" : {
    "alig_err_rate_normal_thres" : 3,
    "error_correction" : "Normal",
    "lssu_lenght" : 1,
    "prov_normal" : "8200 milliseconds",
    "retransmit_queue_max_bytes" : 4096,
    "retransmit_queue_max_msus" : 127
  },
  "line_service" : "@[line_service_name]",
  "name" : "@[mtp2_link]",
  "protocol_type" : "ITU92",
  "ss7_dpc_length" : "14bits format=3.8.3",
  "state" : {
    "datalink_state" : "Enabled"
  },
  "timers" : {
    "t1_timer" : "40 seconds",
    "t2_timer" : "5 seconds",
    "t3_timer" : "1500 milliseconds",
    "t5_timer" : "100 milliseconds",
    "t6_timer" : "3 seconds",
    "t7_timer" : "1 second"
  },
  "timeslot_mask" : 1,
  "timeslot_rate" : "64Kbps"
}

List of Parameters

• Name

• Connection Mode

• Line Service

• Timeslots

• Protocol Type

• DPC Length

• Timeslot Rate

• Error Correction

Live States

• Datalink state
