Creating ISUP CIC Groups
Applies to: Tmedia 3.0, 3.2, 3.3
A CIC represents a physical timeslot between two SS7 nodes. Both of these nodes must commonly agree upon a CIC numbering scheme.
Once you have created an ISUP interface, you must create a new ISUP cicuit identification code (CIC) group for your system.
To create an ISUP CIC group:
1- Click ISUP in the navigation panel.
2- Select the ISUP stack

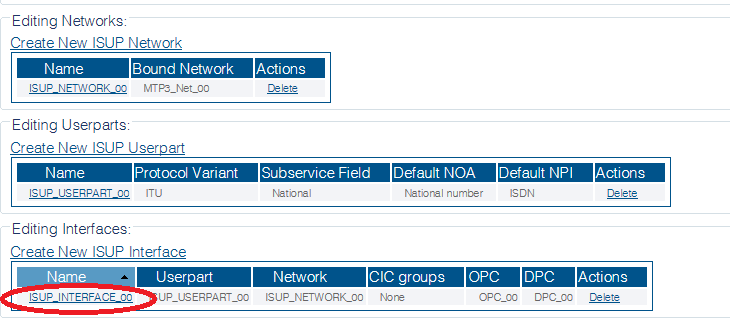

3- Select the ISUP interface

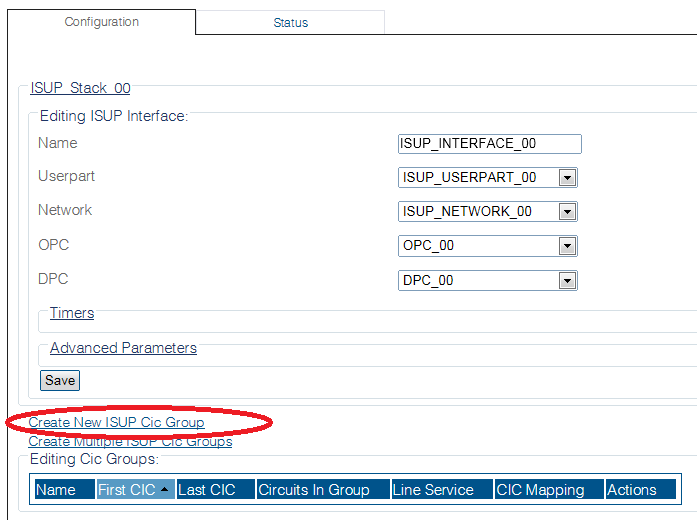

4- Click Create New Isup Cic Group in the ISUP interface configuration window (a number of groups can be created at once by clicking Create Multiple New Isup Cic Group)

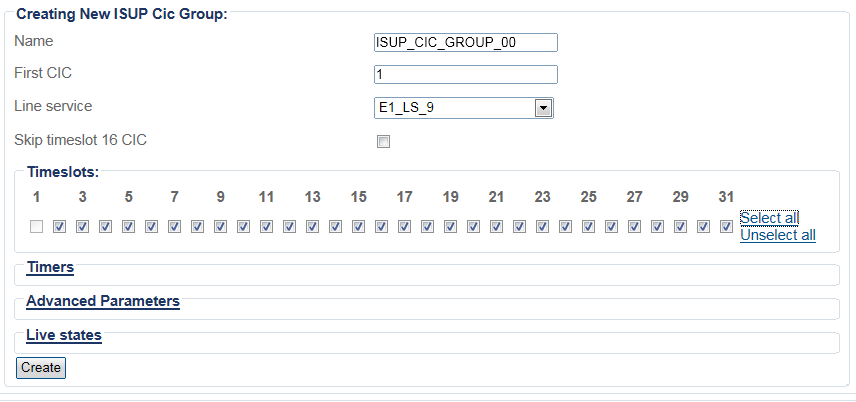

5- Configure the new ISUP CIC group:
Enter a name for the group
Enter a number for the first CIC in the group (this value must follow other CIC group values, and not overlap)
Select a line service
Check the appropriate timeslots (click "Select all" to check all timeslots)
Select a CIC mapping
Select a call control method (Advance Parameters)
Click Create
6- Verify that the "IsupCicGroup was successfully created" message appears
