Creating an SCCP Route

Applies to: Tmedia 3.0, 3.2, 3.3

Now that you have created an SCCP LSAP, you must create a new SCCP route to a specific destination point code (DPC) in your system.

To Create an SCCP Route:

1- Select SCCP from the navigation panel

Create SCCP Stack 0

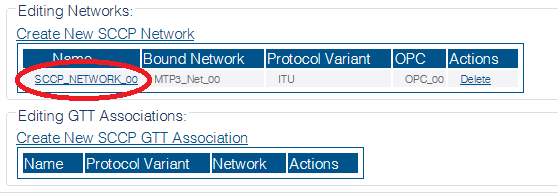

2- Select an SCCP Network

Select SCCP Network 0

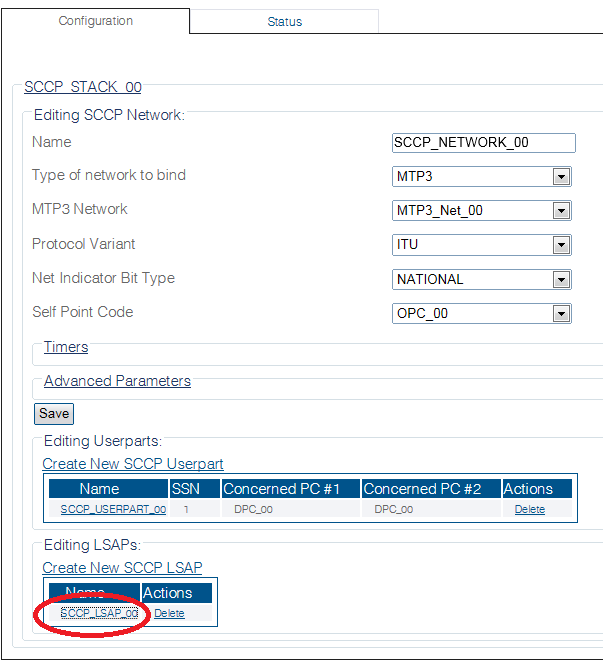

3- Select an SCCP LSAP

Select SCCP LSAP 0

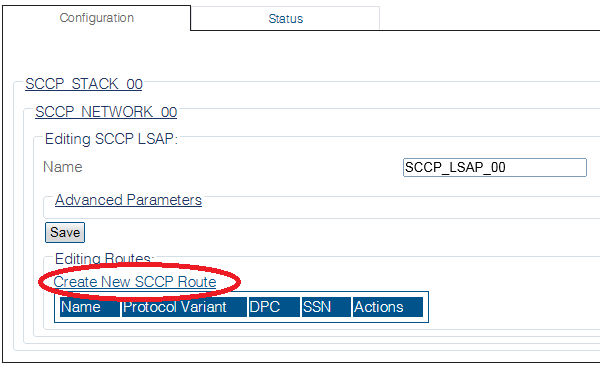

4- Click Create new Sccp Route in the SCCP LSAP configuration window

Create SCCP Route 0

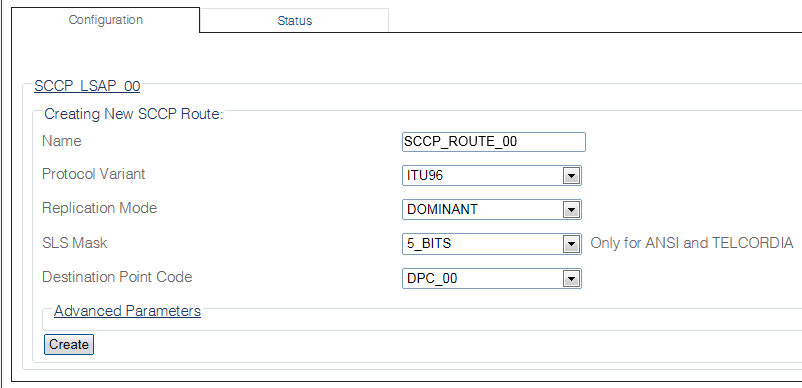

5- Configure the new SCCP Route:

• Choose a Name for the new route

• Select a Protocol Variant

• Select a Replication Mode (ANSI96 and TELCORDIA variants)

• Select an SLS Mask (ANSI and TELCORDIA protocol variants)

• Select a Destination Point Code for this route

• Click Create

Create SCCP Route 1

6- Verify that the "SccpRoute was successfully created" message appears

Create SCCP Route 2

7- Configure SCCP Route Backup Point Code

• Assign Backup Point Codes to use in case this route's DPC is not available.

Create SCCP Route 3

• Note: For each selected point codes, a valid SCCP route must exist.

Path

/configurations/@[configuration_name]/sccp_stacks/@[sccp_stack]/sccp_networks/@[sccp_network]/sccp_lsaps/@[sccp_lsap]/sccp_routes/@[sccp_route]

Parameters (text)

/configurations/@[configuration_name]/sccp_stacks/@[sccp_stack]/sccp_networks/@[sccp_network]/sccp_lsaps/@[sccp_lsap]/sccp_routes/@[sccp_route]
backup_point_codes     = [  ]
destination_point_code = "@[point_code]"
name                   = "@[sccp_route]"
protocol_variant       = "ITU96"
replication_mode       = "DOMINANT"
sls_mask               = "5_BITS"

/configurations/@[configuration_name]/sccp_stacks/@[sccp_stack]/sccp_networks/@[sccp_network]/sccp_lsaps/@[sccp_lsap]/sccp_routes/@[sccp_route]/advanced_parameters
broadband_support = false
options           = [ "ADJACENT_NODE", "ONLINE_BY_DEFAULT" ]

Parameters (json)

{
  "advanced_parameters" : {
    "broadband_support" : false,
    "options" : [
      "ADJACENT_NODE",
      "ONLINE_BY_DEFAULT"
    ]
  },
  "backup_point_codes" : [
  ],
  "destination_point_code" : "@[point_code]",
  "name" : "@[sccp_route]",
  "protocol_variant" : "ITU96",
  "replication_mode" : "DOMINANT",
  "sls_mask" : "5_BITS",
}

List of Parameters

• Name

• Protocol Variant

• Replication Mode

• SLS Mask (For ANSI and TELCORDIA variants only)

• Destination Point Code

Advanced Parameters

• Broadband Support
