Creating an SCCP Network
Applies to: Tmedia 3.0, 3.2, 3.3
After you create the initial SCCP stack, you must create a new SCCP network for your system.
The SCCP network informs the SCCP protocol layer about a collection of SS7 nodes that are accessible through MTP3. Based upon your system configuration, one or more SCCP networks are created. Repeat this section for as many networks as you require.
To create an SCCP network:
1- Select SCCP from the navigation panel

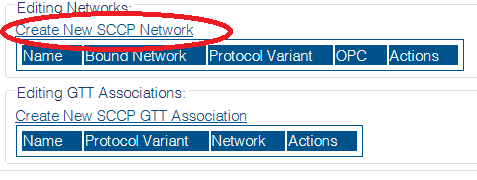

2- Click Create New SCCP Network in the SCCP stack configuration window

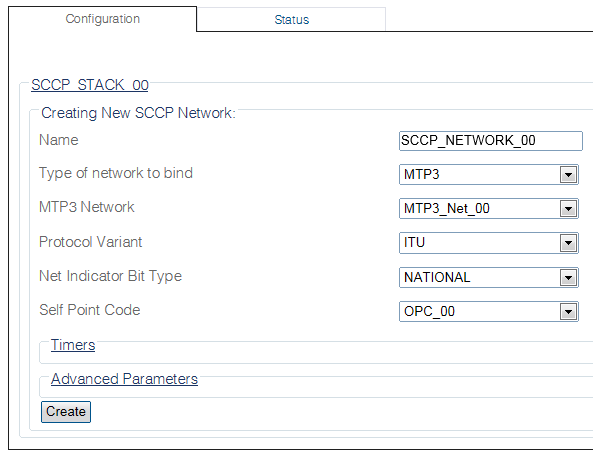

3- Configure the new SCCP network:
Provide a Name for the SCCP network
Select an MTP3 Network on which to bind the SCCP stack
Select an SCCP Protocol Variant
Select an SCCP Net Indicator Bit
Select a Self Point Code
Click Create
4- Verify that the "SCCP Network was successfully created" message appears
