Creating an SCCP LSAP

Applies to: Tmedia 3.0, 3.2, 3.3

After you create an SCCP network, you must create a new SCCP lower service access point (LSAP).

Creating an LSAP tells the SCCP protocol layer about a collection of SS7 nodes that are accessible through MTP3.

To Create an SCCP LSAP:

1- Select SCCP from the navigation panel

Create SCCP Stack 0

2- Select an SCCP Network

Select SCCP Network 0

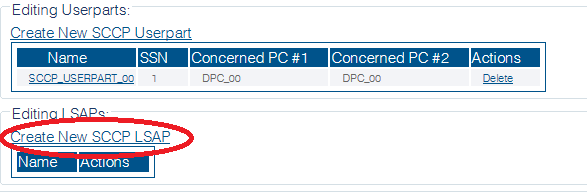

3- Click Create New SCCP LSAP in the SCCP network configuration window

Create SCCP LSAP 0

4- Configure the new SCCP LSAP:

• Enter a Name for the LSAP

• Click Create

Create SCCP LSAP 1

5- Verify that the "SccpLsap was successfully created" message appears

Create SCCP LSAP 2

Path

/configurations/@[configuration_name]/sccp_stacks/@[sccp_stack]/sccp_networks/@[sccp_network]/sccp_lsaps/@[sccp_lsap]

Parameters (text)

/configurations/@[configuration_name]/sccp_stacks/@[sccp_stack]/sccp_networks/@[sccp_network]/sccp_lsaps/@[sccp_lsap]
max_msg_len = 272
name        = "@[sccp_lsap]"

Parameters (json)

{
  "max_msg_len" : 272,
  "name" : "@[sccp_lsap]",
}

List of Parameters

• Name

Advanced Parameters

• Max Msg Length
