Creating an SCCP GTT Association Action

Applies to: Tmedia 3.0, 3.2, 3.3

To Create an SCCP GTT Association Action:

1- Select SCCP from the navigation panel

Create SCCP Stack 0

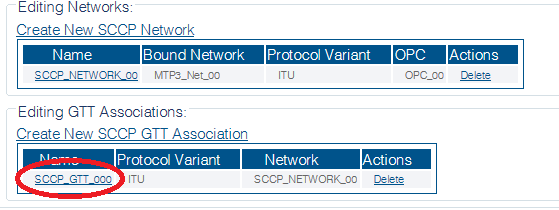

2- Select an SCCP GTT Association

Select SCCP GTT Association 0

3- Click Create New GTT Asso Action from the GTT association configuration window

Create SCCP Action 0

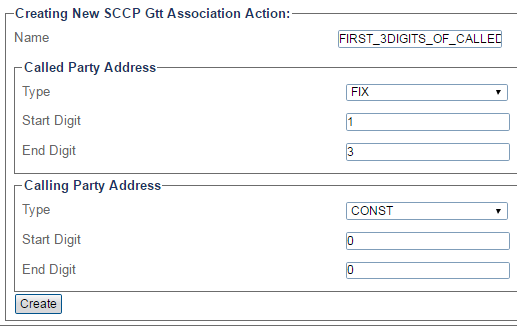

4- Configure the new GTT association action:

• Choose a Name for the association action.

• Set values for the called and calling party Address:

  • Select a Type

  • Set the Start and End digits

• Click Create

Create SCCP Action 1

5- Verify that the "Sccp Gtt Asso Action was successfully created" message appears

Create SCCP Action 2
