Creating an SCCP GTT Address Map

Applies to: Tmedia 3.0, 3.2, 3.3

An Address Map describes the Global Title Translation. Each translation description is associated to a complete or partial address number and 1 or 2 translation Entities.

To Create an SCCP GTT Address Map:

1- Select SCCP from the navigation panel

Create SCCP Stack 0

2- Select an SCCP GTT Association

Select SCCP GTT Association 0

3- Click Create New GTT Address Map from the GTT association configuration window

Create SCCP Table 0

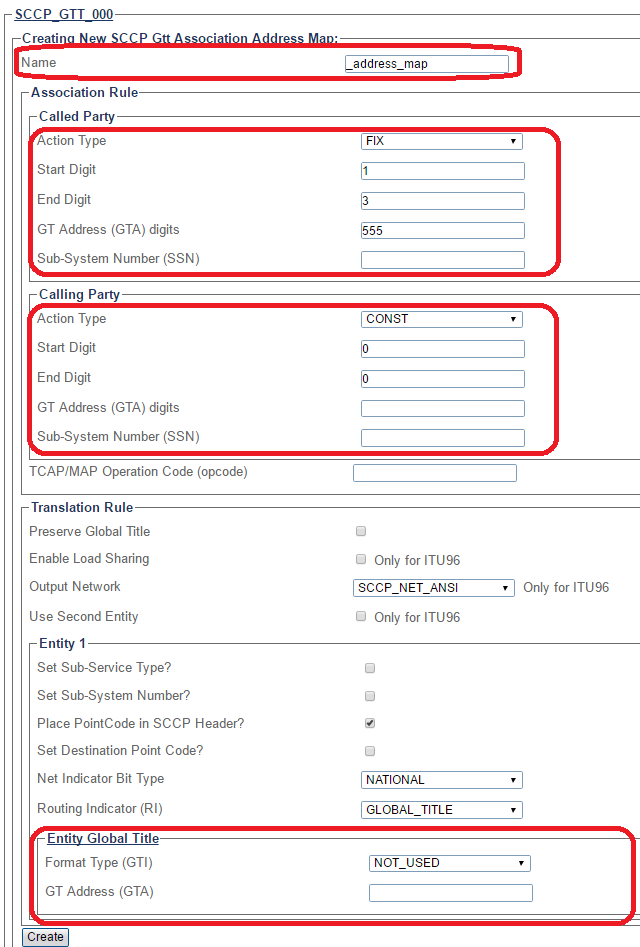

4- Configure the new GTT address map:

  • Choose a Name for the map

  • Set values for the Called and Calling Party:

  • Choose an SCCP output network (only for ITU96 protocol variant)

  • Enter an Format Type (GTI) and GT Address (GTA) in the Entity Global Title section

  • Click Create

SCCP Table 1a

5- Verify that the "SccpGttAssoAddrMap was successfully created" message appears

Create SCCP Table 2

Path

Parameters (text)

Parameters (json)

List of Parameters

Association Rule

Translation Rule
