Creating an MTP3 Network

Applies to: Tmedia 3.0, 3.2, 3.3

After the MTP3 configuration is created, you must also create a new MTP3 network. An MTP3 network is created to define its point codes, link sets and routes. This can be done from the MTP3 configuration information panel

To create an MTP3 network:

1- Click MTP3 in the navigation pane.

Mtp3 0 A

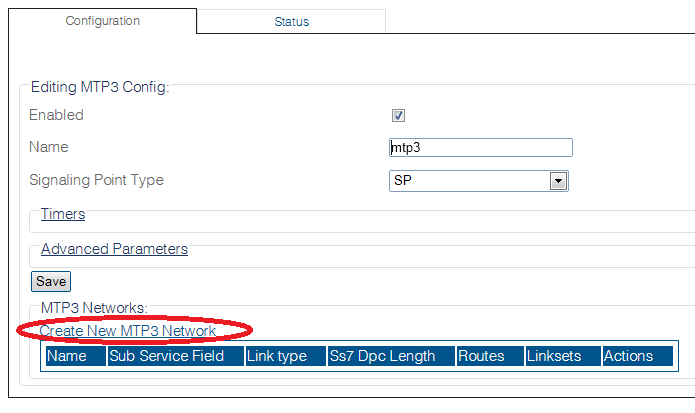

2- Click Create New MTP3 Network in the MTP3 configuration information panel

CreateMtp3Network 0

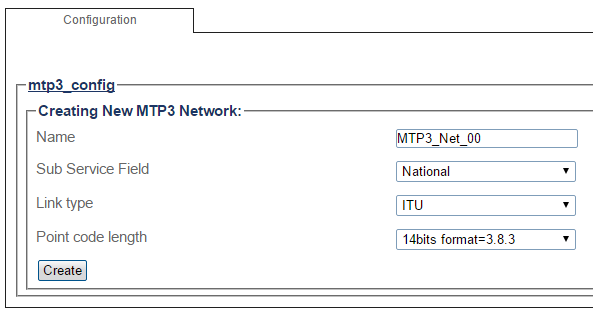

3- Configure the settings for the new network:

• Enter a name for the network

• Select a sub service field

• Select a link type

• Select the point code length

• Click Create

CreateMtp3Network A1

4- Verify that the Mtp3Network was successfully created message appears

CreateMtp3Network 2

Path

/configurations/@[configuration_name]/mtp3_stacks/@[mtp3_name]/mtp3_networks/@[mtp3_network]

Parameters (text)

/configurations/@[configuration_name]/mtp3_stacks/@[mtp3_name]/mtp3_networks/@[mtp3_network]
link_type         = "ITU"
name              = "@[mtp3_link]"
point_code_length = "14bits format=3.8.3"
sub_service_field = "International"

Parameters (json)

{
  "link_type" : "ITU",
  "name" : "@[mtp3_network]",
  "point_code_length" : "14bits format=3.8.3",
  "sub_service_field" : "International"
}

List of Parameters

• Name

• Sub Service Field

• Link Type

• Point Code Length
