Creating an ISUP User Part
Applies to: Tmedia 3.0, 3.2, 3.3
Once you have created your ISUP network, you must create a new ISUP user part.
The user part is the container for the multiple ISUP interfaces. One user part is required for each protocol variant. A user part can be seen as a protocol variant that a host application wants to use on the SS7 network.
Multiple ISUP user parts can be instantiated within a single ISUP protocol layer. This allows a user application to interface with multiple SS7 ISUP protocol variants at the same time. In addition, only one ISUP user part is required for a specific variant as it can be assigned to multiple ISUP networks.
To create an ISUP user part:
1- Click ISUP in the navigation panel.
2- Select the ISUP stack

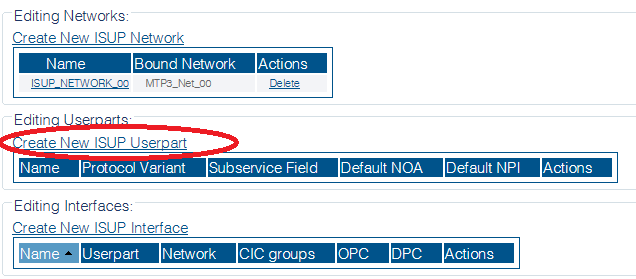

3- Click Create New Isup Userpart in the ISUP stack configuration window:

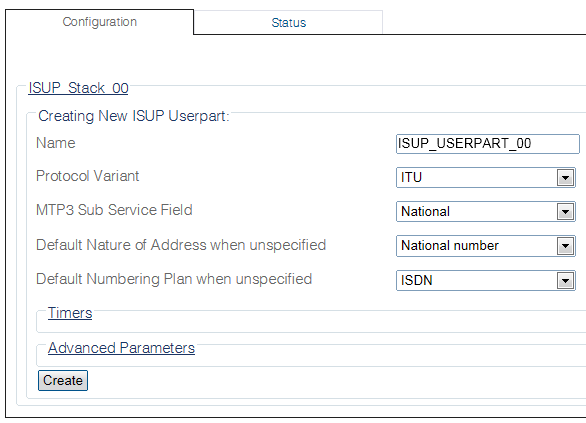

4- Configure the new ISUP user part:
Enter a name for the user part
Select a protocol variant (depending on location)
Select an MTP3 sub service field (the same that was previously set for MTP3)
Select an address indicator type
Select a Numbering Plan
Click Create
5- Verify that the "IsupUserpart was successfully created" message appears
